Summary of Contents for Danfoss ECdry 55

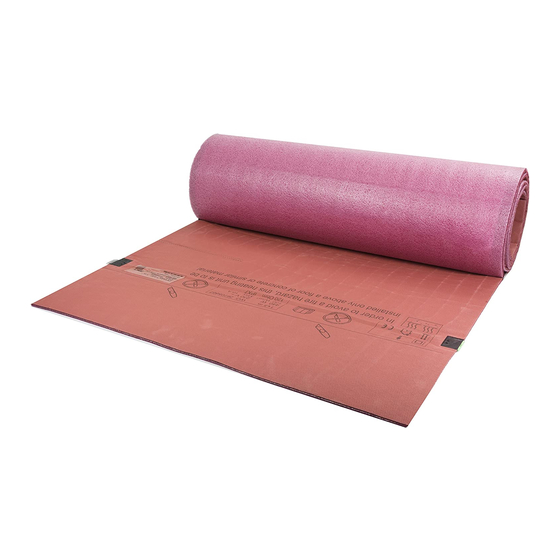

- Page 1 Installation Guide Danfoss ECdry Touch Kit...
-
Page 3: Table Of Contents
Safety Precautions � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 22 The 5 Year Danfoss Warranty: � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 24 Danfoss ©... -
Page 4: Ecdry
Congratulations with your new Danfoss floor heating system. We are confident that you will be satisfied with your new system. Danfoss brings you optimum comfort with the luxury and comfort of a warm floor as well as a pleasant room temperature. -
Page 5: General Information
55 W/m² and 100 W/m². Parquet/laminate Parquet/laminate ECdry ECdry Vapour barrier Vapour barrier Existing Existing wooden subfloor concrete subfloor Flooring Flooring ECdry 55 ECdry 55 or 100 Wooden floor construction Concrete floor construction Danfoss © | 2020.07 AN324050550815en-000201 | 5... - Page 6 11 mm HDF based laminate >800 kg/m³ 0,10 m² K/W 14 mm beech parquet 650-800 kg/m³ 0,13 m² K/W 22 mm solid oak plank >800 kg/m³ 0,18 m² K/W 22 mm solid fir planks 450-650 kg/m³ 6 | Danfoss © | 2020.07 AN324050550815en-000201...
-
Page 7: Product Overview
Installation Guide Danfoss ECdry Touch Kit Product overview ECdry FM ECdry Connection Tool ECdry Tape ECdry X ECdry End Stop ECdry Protection Cap Danfoss © | 2020.07 AN324050550815en-000201 | 7... - Page 8 ECdry Extension Cord, 100 cm ECdry X-200 ECdry Extension Cord, 200 cm ECdry FM-1 ECdry Filler Material, 1 m² ECdry FM-2 ECdry Filler Material, 2 m² ECdry FM-4 ECdry Filler Material, 4 m² 8 | Danfoss © | 2020.07 AN324050550815en-000201...
-
Page 9: Technical Details
Installation Guide Danfoss ECdry Touch Kit Technical Details Installation must be carried out in accordance with the national regulation and wiring rules for installation Technical details of ECdry Height 8 mm Mains voltage 230 V (50 Hz) Maximum Ampere per ECdry System... - Page 10 This symbol indicates that this product must not be disposed of with your other household waste. Danfoss declares that ECdry is tested according to the standard EN/IEC 60335-2-96. Household and similar electrical appliances. Safety. Part 2-96. Particular requirements for flexible sheet heating mats for room heating.
-
Page 11: Designing The Layout
Installation Guide Danfoss ECdry Touch Kit Designing the layout Draw a floor plan of the room and determine filler material. A ECdry floor heating exten- the most logical location for the control sys- sion cord is available as an accessory. Use tem and the position of the floor heating mats. - Page 12 ECdry have to be separated from area you wish to heat and that there is free other heat sources such as chimneys. Instead space (ventilation) under the furniture. ECdry filler material should be used. 12 | Danfoss © | 2020.07 AN324050550815en-000201...
-
Page 13: Preparing The Base
Installation Guide Danfoss ECdry Touch Kit 1�1 Preparing the base Before you start installing the product, please ensure that the floor is: • Permanently inflexible • • Flat and regular • Dust- and fat-free • Free from any sharp objects Use a powerful vacuum cleaner to remove all dust from the floor. -
Page 14: Calculating Current Limitations
Maximum heated surface per ECdry Touch Kit (10 A limit per system) Product Max heated surface ECdry 55 42 m² ECdry 100 23 m² For ECdry 55 (Mains voltage 230 Volt and 50 Hz) Floor area Heated surface Total power output Ampere 1 m² 0,4 m²... -
Page 15: Connecting The Ecdry Elements
Installation Guide Danfoss ECdry Touch Kit 1�1 Connecting the ECdry elements Bulges on the element may occur, but will disappear when the ECdry system is heated. All elements are equipped with an end stop to insulate the connector and protect the connection against moisture. -
Page 16: Cutting The Ecdry Floor Heating Element To Size
Do not cut area. Electrical parts inside. If cut, element will be de- stroyed. To cut the element to size: Carefully measure the piece you wish to cut off and simply cut with a sharp knife. 16 | Danfoss © | 2020.07 AN324050550815en-000201... -
Page 17: Filling Up The Remaining Space
Installation Guide Danfoss ECdry Touch Kit 1�1 Filling up the remaining space At this point all connections between the elements should be aligned and connected and as much of the floor as possible should be covered with ECdry elements. The space... -
Page 18: Mounting The Ectemp Thermostat
Read the directions for before checking. the control system before you proceed. Set the temperature at maximum 35 °C. After a short while you will notice the ECdry floor heating mats are warming up. 18 | Danfoss © | 2020.07 AN324050550815en-000201... -
Page 19: Laying The Top Floor
Installation Guide Danfoss ECdry Touch Kit 1�1 Laying the top floor Please consult the floor manufacturer to However, observe the maximum floor ensure that the floor covering is suitable for surface temperature according to the floor- floor heating. The final floor covering (lami- ing manufacturer. -
Page 20: Layout Paper
Installation Guide Danfoss ECdry Touch Kit Layout paper Please draw the room on the page below and position the heating mats that you are installing (for future reference) These products are installed in Room 20 | Danfoss © | 2020.07 AN324050550815en-000201... - Page 21 Item no. Product name Type 088L1140 ECtemp Smart Polar White (RAL 9016) 088L1141 ECtemp Smart Pure White (RAL 9010) 088L1143 ECtemp Smart Pure Black (RAL 9005) For more detail information, please visit - danfoss�com Danfoss © | 2020.07 AN324050550815en-000201 | 21...
-
Page 22: Safety Precautions
• Do not buckle the supply cord and the extension cords; do not have them run across hot and/or sharp objects. 22 | Danfoss © | 2020.07 AN324050550815en-000201... - Page 23 Installation Guide Danfoss ECdry Touch Kit • Unroll the extension cords entirely to • Do not allow needles, sharp objects, prevent the cords from overheating. liquids and/or other electricity-conducting objects/fluids to make contact with the • Do not pull the cord or the floor heating floor heating system.
-
Page 24: The 5 Year Danfoss Warranty
Danfoss product, inquiries from our customers. you will find that Danfoss offers a 5 year warranty from the date of purchase on the The warranty explicitly excludes all claims following conditions: exceeding the above conditions. - Page 25 Installation Guide Danfoss ECdry Touch Kit 5 YEAR WARRANTY Warranty Certificate The Danfoss Warranty certificate is granted to Name: Address: City: Country: Telephone: Attention: The Warranty Certificate must be completed correctly for the Warranty to be valid. Please read the Warranty conditions on the previous page.
- Page 26 Installation Guide Danfoss ECdry Touch Kit 26 | Danfoss © | 2020.07 AN324050550815en-000201...
- Page 27 Installation Guide Danfoss ECdry Touch Kit Danfoss © | 2020.07 AN324050550815en-000201 | 27...
- Page 28 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark Danfoss © | 2020.07 08091477 & AN324050550815en-000201...
