Quick Guide

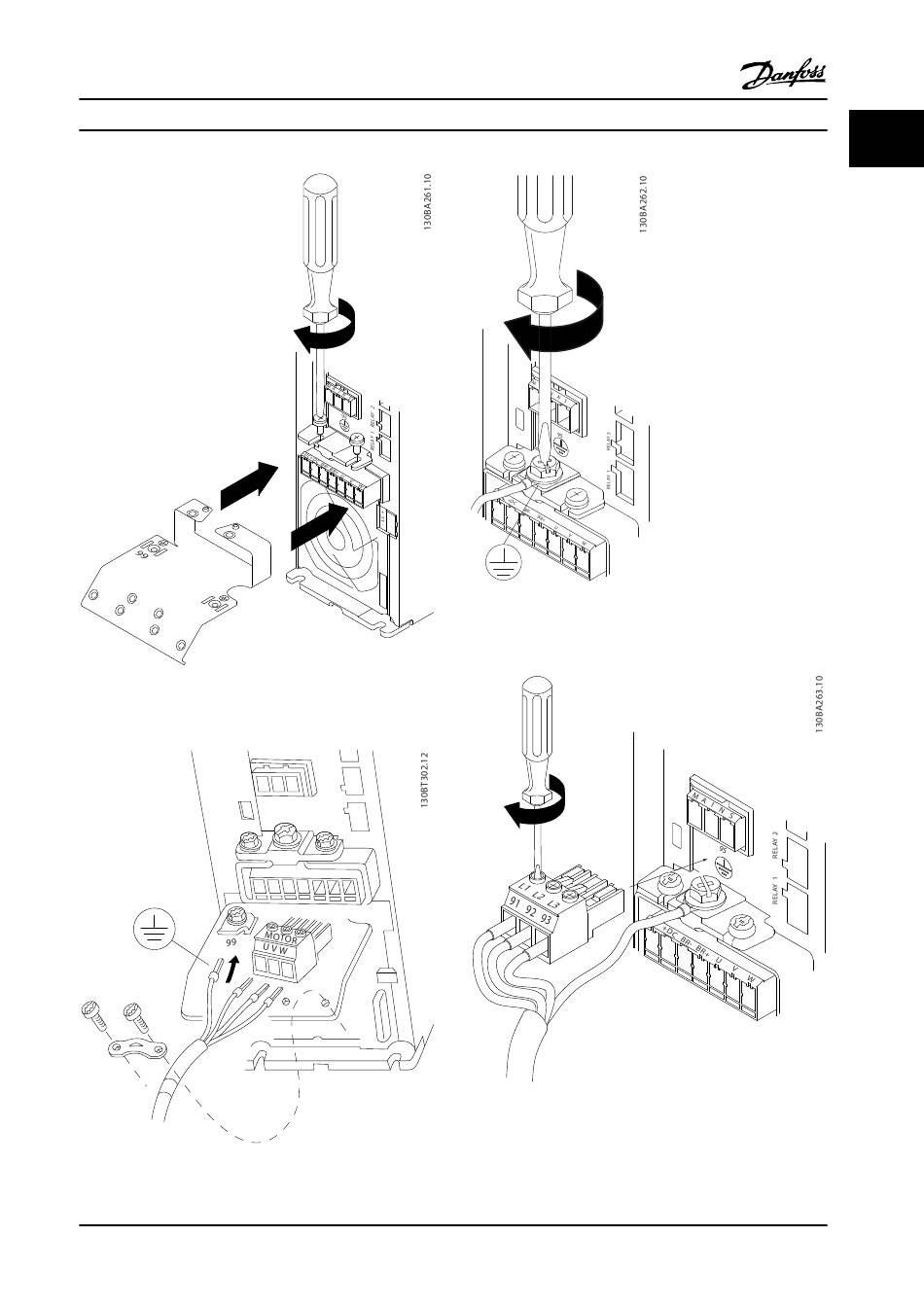

Figure 1.3 Mount the two screws in the mounting plate, slide
it into place and tighten fully
Figure 1.4 H3-H5 Frame
MG18M122
Quick Guide
Figure 1.5 When mounting cables, first mount and tighten
ground cable
MOTOR
Figure 1.6 Mount line power plug and tighten wires
