Programming - Danfoss CDS803 Quick Manual

Quick Guide
1 1

1.4 Programming

1.4.1 Local Control Panel (LCP)
NOTICE!
LCP is NOT supported in SW 1.0X!
The LCP is divided into four functional sections.
A. Display
B. Menu key
C. Navigation keys and LEDs
D. Operation keys and LEDs
1
2
3
4
6
10
7
8
9

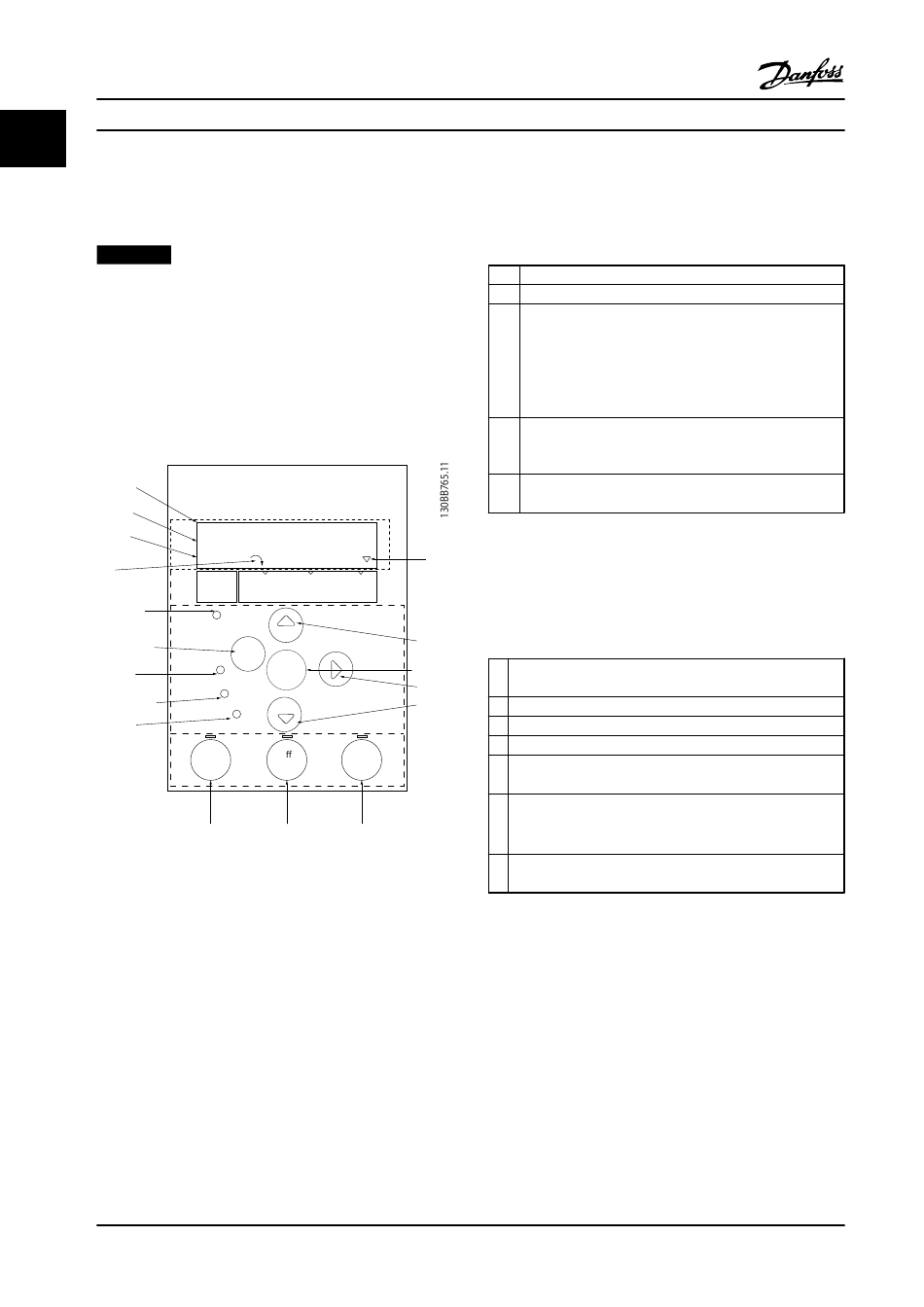

Figure 1.12 Local Control Panel (LCP)
12
1-20 Motor Power
A
[5] 0.37kW - 0.5HP
Setup 1
Main
Status Quick
B
Menu
Menu
Menu
Com.
C
Back
On
OK
Warn.
Alarm
Hand O Auto
D
On Reset
13 14
Danfoss A/S © Rev. 08/2014 All rights reserved.
Quick Guide
A. Display
The LCD display is backlit with two alphanumeric lines. All
data is displayed on the LCP.
Information can be read from the display.
1 Parameter number and name.
2 Parameter value.
3 Set-up number shows the active set-up and the edit set-
up. If the same set-up acts as both the active and edit set-
up, only that set-up number is shown (factory setting).
When active and edit set-ups differ, both numbers are
shown in the display (Set-up 12). The flashing number
indicates the edit set-up.
4 Compressor direction is shown to the bottom left of the
display – indicated by a small arrow pointing either
clockwise or counter-clockwise.
5 The triangle indicates if the LCP is in Status, Quick Menu
or Main Menu.
Table 1.10 Legend to Figure 1.12
5
B. Menu key
Press [Menu] to select between Status, Quick Menu or
Main Menu.
C. Navigation keys and LEDs
11
6 Com LED: Flashes when bus communication is communi-
12
cating.
11
11 7 Green LED/On: Control section is working.
8 Yellow LED/Warn.: Indicates a warning.
9 Flashing Red LED/Alarm: Indicates an alarm.
10 [Back]: For moving to the previous step or layer in the
On
navigation structure
▲
11 [
] [
parameters and within parameters. Can also be used for
15
setting local reference.
12 [OK]: For selecting a parameter and for accepting changes to
parameter settings
Table 1.11 Legend to Figure 1.12
▼
] [►]: For navigating between parameter groups,
MG18M122
