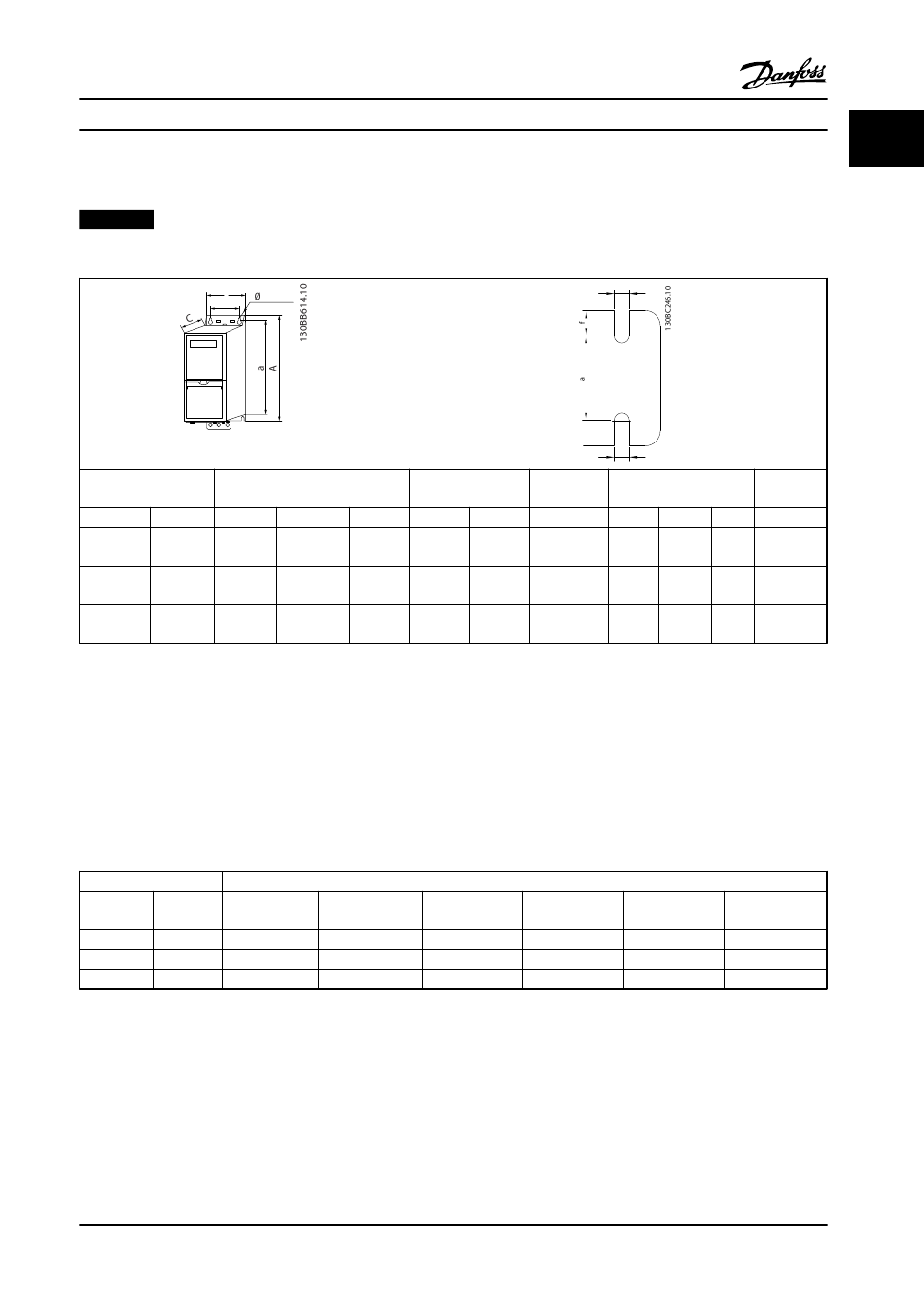

1.3.4 Dimensions

NOTICE!
The figure in Table 1.6 is with LCP but all dimensions are the same without LCP.
B
b
Enclosure
Frame IP Class A
H3 IP20 10 [255]
H4 IP20 11.7 [296]
H5 IP20 13.2 [334]
Table 1.6 Dimensions
1) Including decoupling plate
The dimensions are only for the physical units, but when installing in an application it is necessary to add space for free air
passage both above and below the units. The amount of space for free air passage is listed in Table 1.5.
1.3.5 Electrical Installation in General
All cabling must comply with national and local regulations on cable cross-sections and ambient temperature. Copper
conductors required, (167 °F [75 °C]) recommended.
Enclosure
Frame IP class
H3 IP20
H4 IP20
H5 IP20
Table 1.7 Enclosure H3-H5
MG18M122
Quick Guide
D
Height (in [mm]) Width (in [mm])
a
A 1)
13 [329] 9.5 [240] 3.9 [100]
14.1 [359] 10.8 [275] 5.3 [135]
15.8 [402] 12.4 [314] 5.9 [150]
Line Compressor DC connection
connection
1.4 0.8
1.2 1.2
1.2 1.2
Danfoss A/S © Rev. 08/2014 All rights reserved.
Depth (in
[mm])
B b C
2.9 [74] 8.1 [206]
4.1 [105] 9.5 [241]
4.7 [120] 10 [255]
Torque [Nm]
Control
terminals
0.8 0.5
1.2 0.5
1.2 0.5
e
e
Mounting hole (in [mm]) Max.
Weight
d e f lb [kg]
0.4 0.2 [5.5] 0.3 9.9 [4.5]
[11] [8.1]
0.5 0.3 [7] 0.33 17.4 [7.9]
[12.6] [8.4]
0.5 0.3 [7] 0.34 21 [9.5]
[12.6] [8.5]
Ground Relay
0.8 0.5
0.8 0.5
0.8 0.5
1 1
5
