Chapter 1 S5612 Introduction

The section describes the characteristics and parameters of S5612 and gives an
overview of S5612.

1.1 Appearance Description for Standard Configuration

The built-in ports of S5612 are: 8 gigabit Ethernet RJ45 ports, 12 10G SFP+ ports, 1
Console port. See table 1-1.
Table 1-1 Attributes of the built-in port
Port
Gigabit Ethernet port
10G Ethernet port
Console port
S5612 has a grounding column, a power socket and a power on-off (ON: power on;
OFF: power off) at its back.

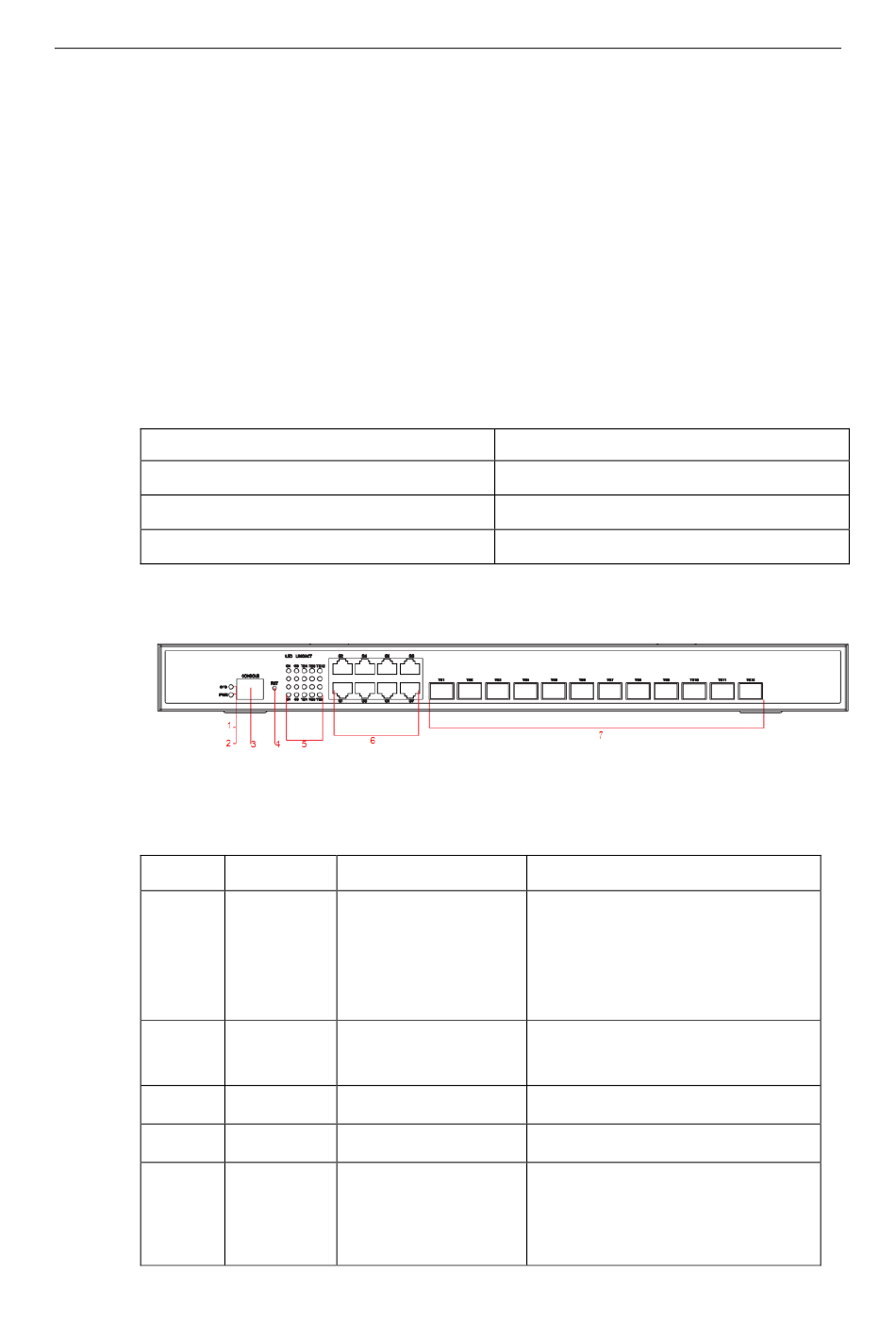

Figure 1-1 Front template of the S5612 switch
Table 1-2 Parts at the front template of the S5612 switch
No. Abbrev.
1 SYS
2 PWR
3 CONSOLE
4 RST
5 LINK/ACT
RJ45 interface, LINK/ACT indicator
SFP+ interface, LINK/ACT indicator
A rate of 9600bps, mini USB interface
Name
System indicator
Power indicator
Console port
Reset
Port indicator
S5612 Hardware Installation
Attribute
Description
If the indicator is always on, the
system is normally started up.
If the indicator flickers, the system
works normally.
If the switch is powered on, the
indicator is on.
Manages the switch locally.
GE/10GE port link/ack indicator
If the indicator is always on, the
link on the port is normal.
