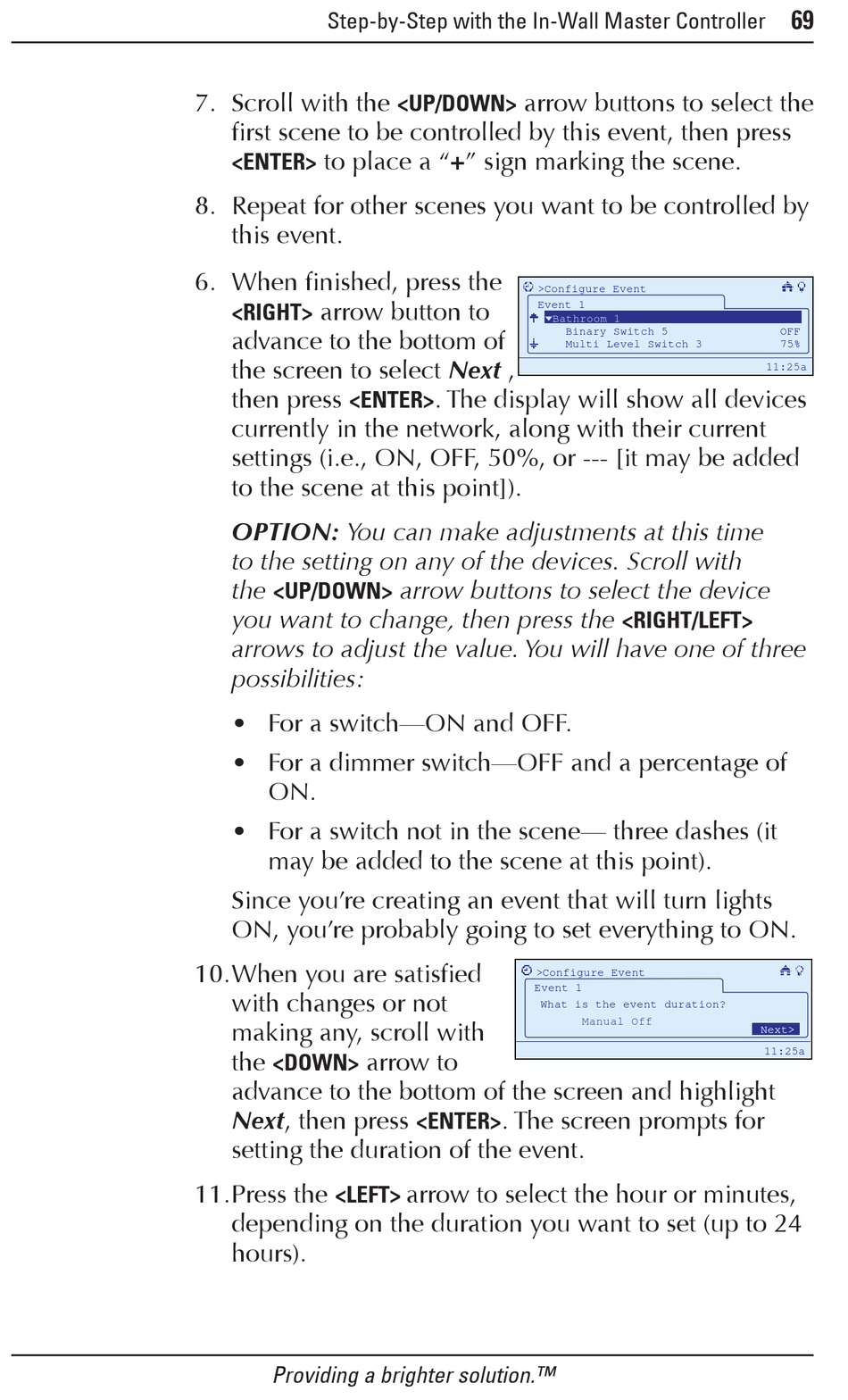

Intermatic InTouch CA5500R User Manual page 69

Step-by-Step with the In-Wall Master Controller
7. Scroll with the
first scene to be controlled by this event, then press
to place a "+" sign marking the scene.
<ENTER>
8. Repeat for other scenes you want to be controlled by
this event.
6. When finished, press the
arrow button to
<RIGHT>
advance to the bottom of
the screen to select Next ,
then press
<ENTER>
currently in the network, along with their current
settings (i.e., ON, OFF, 50%, or --- [it may be added
to the scene at this point]).
OPTION: You can make adjustments at this time
to the setting on any of the devices. Scroll with
the
<UP/DOWN>
you want to change, then press the
arrows to adjust the value. You will have one of three
possibilities:
• For a switch—ON and OFF.
• For a dimmer switch—OFF and a percentage of
ON.
• For a switch not in the scene— three dashes (it
may be added to the scene at this point).
Since you're creating an event that will turn lights
ON, you're probably going to set everything to ON.
10. When you are satisfied
with changes or not
making any, scroll with
the
<DOWN>
advance to the bottom of the screen and highlight
Next, then press
setting the duration of the event.
11. Press the
<LEFT>
depending on the duration you want to set (up to 24
hours).
