Intermatic RC939 Installation, Operation & Service Manual

RC SERIES

REMOTE CONTROLS

Model: RC939 THREE CHANNEL RADIO TRANSMITTER
For indoor and outdoor use, suitable for Pool/Spa equipment control
BATTERY TYPE: 3 Volt CR2032 Coin Battery
Risk of Injury or Property Damage!
WARNING
• Always keep remote controls out of reach of children. NEVER permit children to operate or play with remote controls.
• Never allow small children to play with batteries. If battery is swallowed, immediately notify doctor.
Risk of Fire, Explosion or Chemical Burn!
WARNING
• Replace ONLY with 3 Volt CR2032 coin battery .
• DO NOT recharge, disassemble, heat above 212˚F (100˚C) or incinerate.
To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited,
except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.
Tested to comply with FCC Standards for Home or office use. Operation is subject to the following two conditions: (1) this device
may not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
DESCRIPTION
The RC939 Radio Transmitter is used to control a pump or light. In order for the transmitter
to work, it must be linked to a RC613L/RC613R receiver that receives the ON/OFF
command from the transmitter and then turns the connected device (pump or light) ON/OFF.
This document provides setup and operation instructions for the RC939 radio transmitter.
Carefully follow these instructions to setup the RC939 transmitter. Then perform the operation
instructions as needed.
NOTE: The transmitter must be within 6 feet of the receiver during the setup.
INITIAL SETUP
Follow the procedures below to complete the initial setup for the transmitter.
Verifying Receiver Operation
Before setting the transmitter, perform this procedure to verify that the RC613L/RC613R receiver is operating
properly.
1. Press the red button on the receiver. The connected pump or light will turn ON to indicate the receiver is working.
2. If the pump or light does not turn ON, make sure the receiver has power and then retest.
Linking RC939 Transmitter Button with the RC613 Receiver
1) With a stylus or paper clip, press the program button on the side of the
transmitter until the red LED illuminates. See Figure 2 for location of button
and LED.
2) On the receiver, press the CODE-SET button. The adjacent LED illuminates.
See Figure 3.
3) Press a button on the transmitter multiple times until the LED on the receiver
turns OFF. This is the button that will control the receiver.
4) Press one of the other buttons on the transmitter that was not configured.
The red LED on the transmitter shuts OFF. The transmitter is now linked to
the receiver.
5) Press the configured button on the transmitter to verify it communicates
with the receiver and turns the connected device ON/OFF.
6) Repeat steps 1 through 5 to link an other program button to another receiver.
NOTICE
INSTALLATION
OPERATION &
SERVICE MANUAL

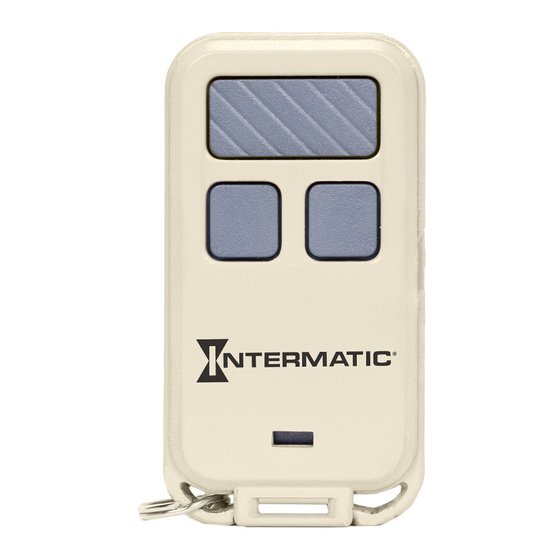

Figure 1 RC939 Radio Transmitter
Press one of
these buttons
to link to receiver
Red LED
Figure 2 Side view of transmitter
Figure 3 RC613R Receiver
Program Button
