RC2000 SERIES
REMOTE CONTROLS
ONE CIRCUIT AIR SWITCH WITH TIMER

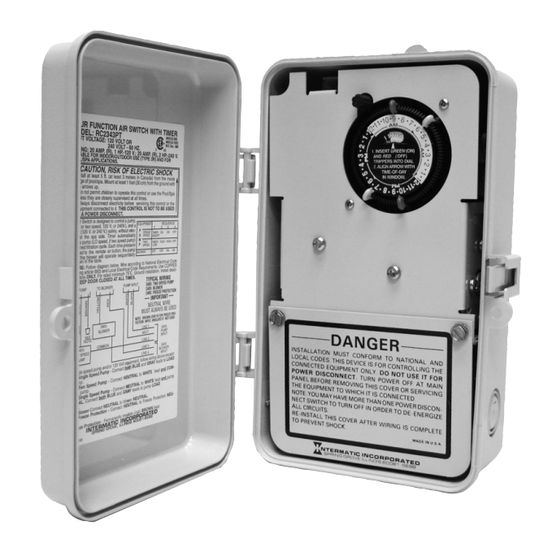

Model: RC2123PT - Plastic Outdoor (Type 3R) Enclosure
SUITABLE FOR POOL/SPA EQUIPMENT CONTROL
SWITCH: Single Pole Double Throw (SPDT)
RATINGS: 20 A Resistive - 120V or 240V; 1 HP - 120V, 2 HP - 240V, 60 HZ.
...do not permit small children to operate the control or use the Pool/Spa unless they are closely supervised at all times.
...test GROUND FAULT protection regularly. If it fails to reset, DO NOT USE THE POOL or SPA! Contact a service technician.
...always disconnect electricity before servicing this Control or the equipment connected to it. THIS CONTROL IS NOT TO BE USED
AS A POWER DISCONNECT.
When installing and operating this Product and other associated equipment, basic safety precautions should always be followed,
1. Read and follow all instructions.
2. This Control must be installed by a qualified person, according to National and Local Electrical Codes.
3. Install this control not less than 5 feet (3 meters in Canada) from inside edge of pool 1 foot (30 cm) or more above ground.
USE COPPER CONDUCTORS ONLY, rated 75˚C minimum.
4. Do not exceed the maximum ratings of individual components, wiring devices, and current carrying capacity of conductors.
5. For Control grounding and bonding, refer to Article 680 of the National Electrical Code or Article 68 of the Canadian Electrical Code.
6. The Control should not operate any equipment which would cause bodily injury or property damage should it be activated
unexpectedly.
MODEL RC2123PT
This Air Switch is designed to control safely,
without electricity at the spa side, the filter
pump, 120V or 240V, single or two speed.
Each time pressure is applied to the remote
air button, the connected equipment will
operate in the sequence shown below. In
addition, the timer will automatically turn
the pump ON/OFF (low speed if two speed
pump) for daily filtration.
EQUIPMENT
PUMP, SINGLE SPEED
PUMP, TWO SPEED
DANGER! To Reduce the Risk of Injury:
IMPORTANT SAFETY INSTRUCTIONS
READ, FOLLOW AND SAVE THIS INSTRUCTION MANUAL
GENERAL INFORMATION
SEQUENCE
1
2
Timer
ON
ON/OFF
Timer
ON/OFF
ON
Low
High
Speed
Speed
SERVICE MANUAL
1
INSTALLATION
OPERATION &
