Creating a Scene

Programming Scenes with Routing Slave Devices
With your network based on the Hand-Held (Model
CA5500R) with Base (Model CA5500B), follow this
procedure to create a scene with the following devices:

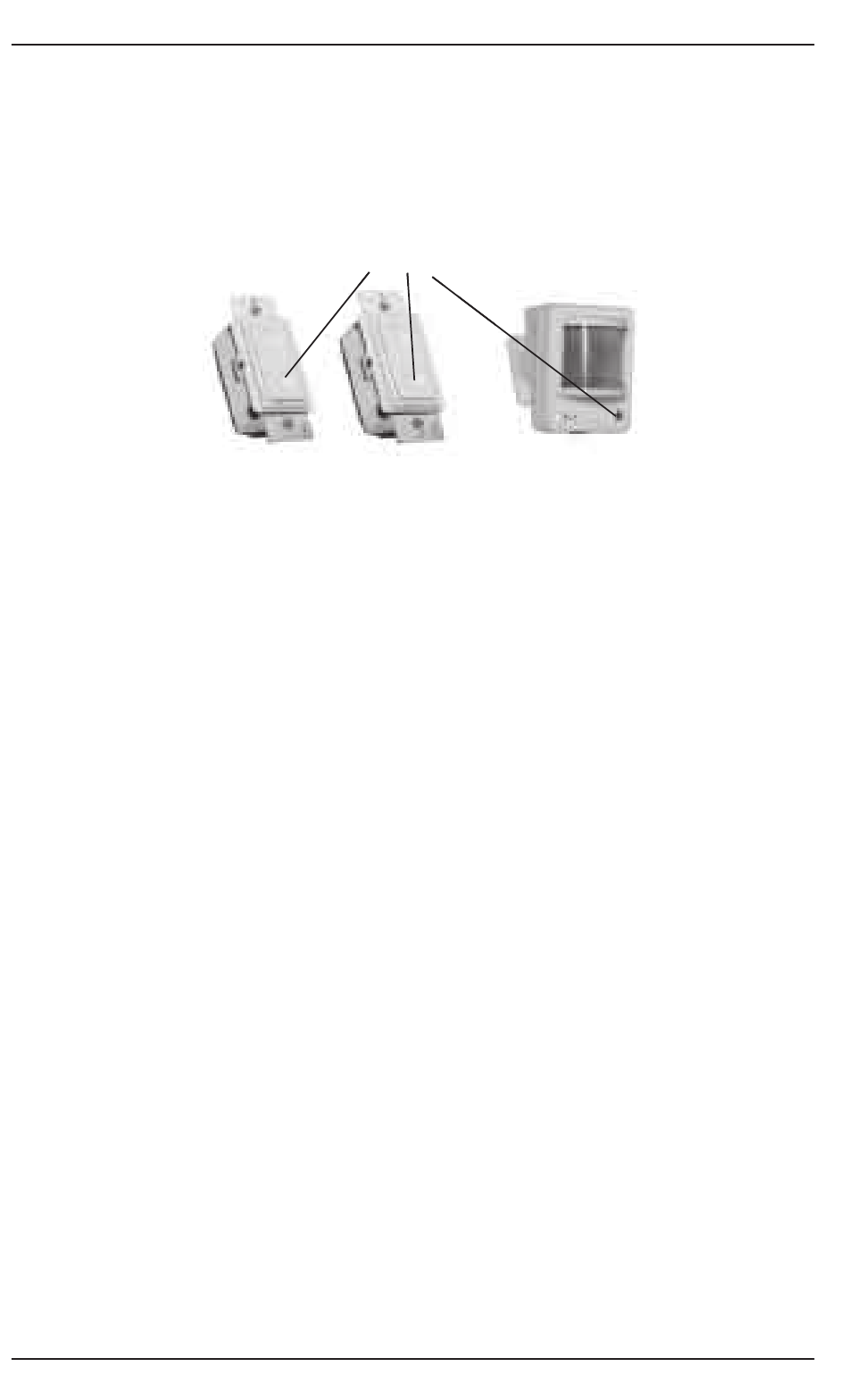

<ACTIVATION> <ACTIVATION>
Switch-Type Devices Switch-Type Devices
NOTE: When activating one of these devices manually, all
the devices controlled by the scene will be activated.
1. Depending on which device you want to program,
perform the following step:
• Motion Sensor—Press and hold (for
approximately 10 seconds) the
button.
• Switch-Type Devices—Make sure the device
is in OFF mode, then press and hold (for
approximately 10 seconds) the lower portion of
the rocker switch.
The Status Light will pulse once with a blue light,
indicating that the device is in "learning" mode.
2. Go around your home and make a change in the
status of each device you want to include in the
scene. For example, turn a room light on or off, set a
dimmer to a desired level, etc. To include an InTouch
electric outlet (e.g., where you have plugged in a
lamp), press the button on the outlet.
To include other Z-Wave devices in the scene (i.e.,
Intermatic HomeSettings devices or other brands),
turn them ON or OFF from their existing state. The
system will turn them back to their original state
when it "sees" them. This may take a few minutes as
the network sorts things out. When it's finished, set
the device as you want it for the scene.
