5. Highlight a room on the
left and press
Note that the room name
copies to the box on the
right. Repeat this procedure until you have created
the rooms you will need for programming the house.
6. Press the
<HOME>
screen returns to the Main Menu. Having created the
rooms, you must now add the appropriate devices to
the rooms you have created.

Adding Devices to Rooms

Once you have created the rooms, use the editing
function to add the appropriate devices to the rooms
you have created.
During programming, use the
navigate to your selections on the screen. Use the
arrow to advance to the next item.
<RIGHT>
NOTE: If you pause for more than 30 seconds during
the programming procedure, the In-Wall Master
Controller will time out and
exit programming mode.

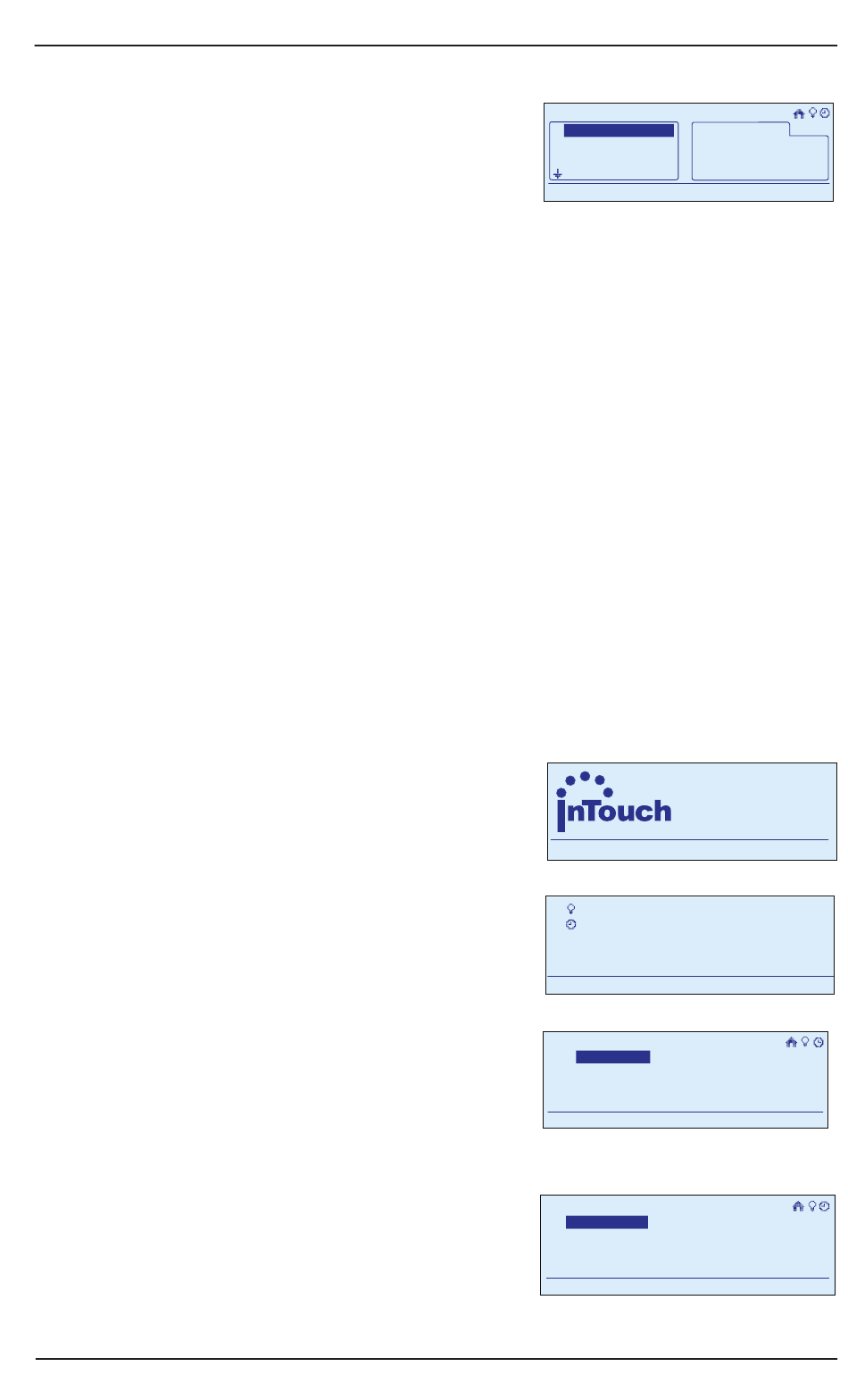

Begin at the InTouch Home
Screen as shown.
1. Press
<ENTER>
displays the Main Menu.
2. Scroll with the
arrows to select Setup,
then press
<ENTER>
screen displays system
setup options.
Select Setup Home, then
3.
press
<ENTER>
displays options for
setting up the home.
