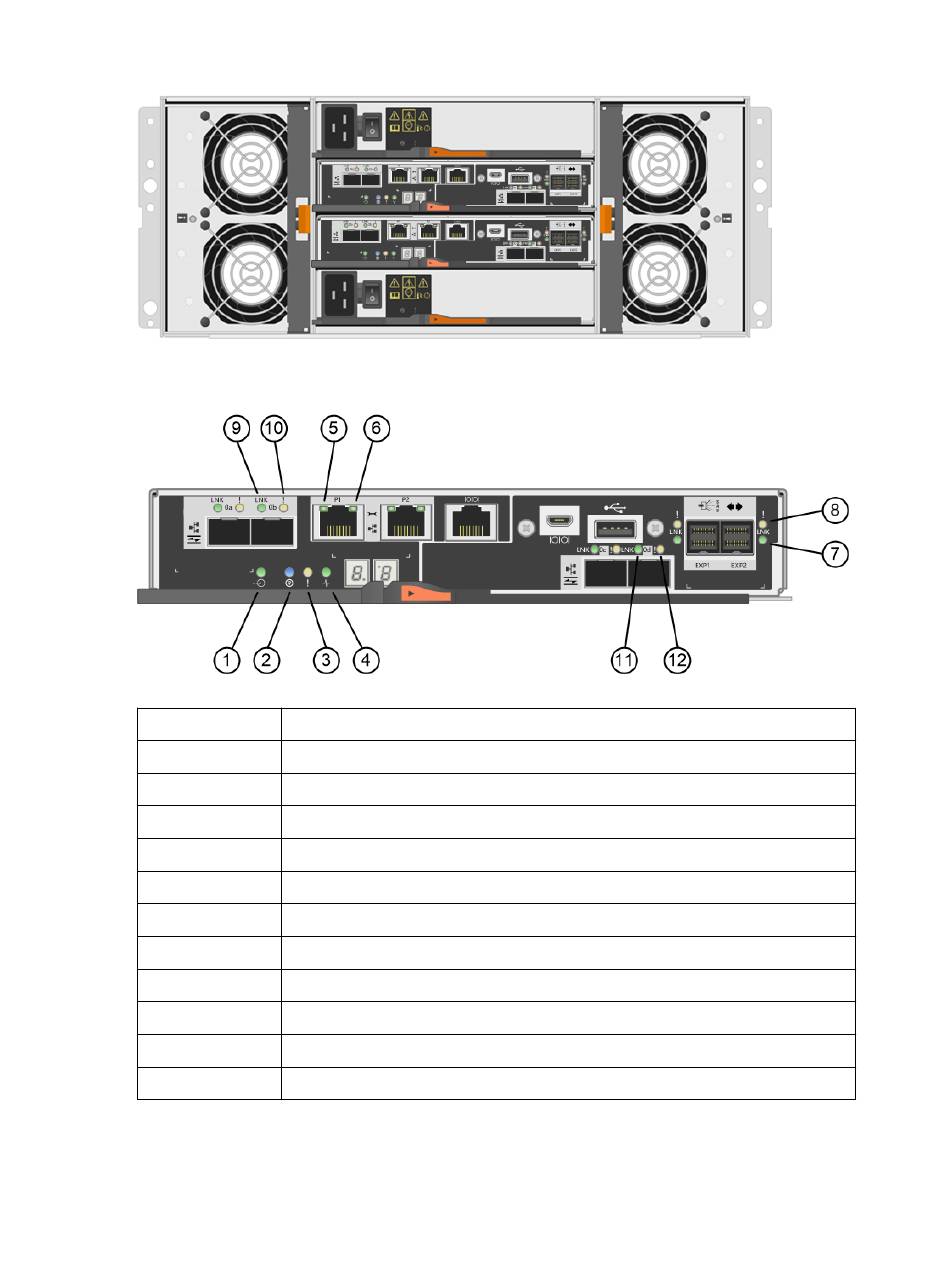

E2860 controller shelf (rear view)
E2800 controller LEDs
1. Cache Active
2. Locate
3. Attention
4. Activity
5. Ethernet Activity
6. Ethernet Link Speed
7. Expansion Port Link Status (SAS expansion port)
8. Expansion Port Attention (SAS expansion port)
9. Host Port Link Status (baseboard host port)
10. Host Port Attention (baseboard host port)
11. Host Port Link Status (HIC host port)
12. Host Port Attention (HIC host port)
