110 | Hardware Cabling Guide
The following figures shows the SAS ports on a DE1600 drive tray or a DE5600 drive tray.
Note:
You can connect either of the SAS ports labeled SAS 1 and SAS 2 to the SAS Expansion port on
another drive tray or on a controller-drive tray. You should not make connections to both the SAS 1
port and the SAS 2 port on the same ESM.

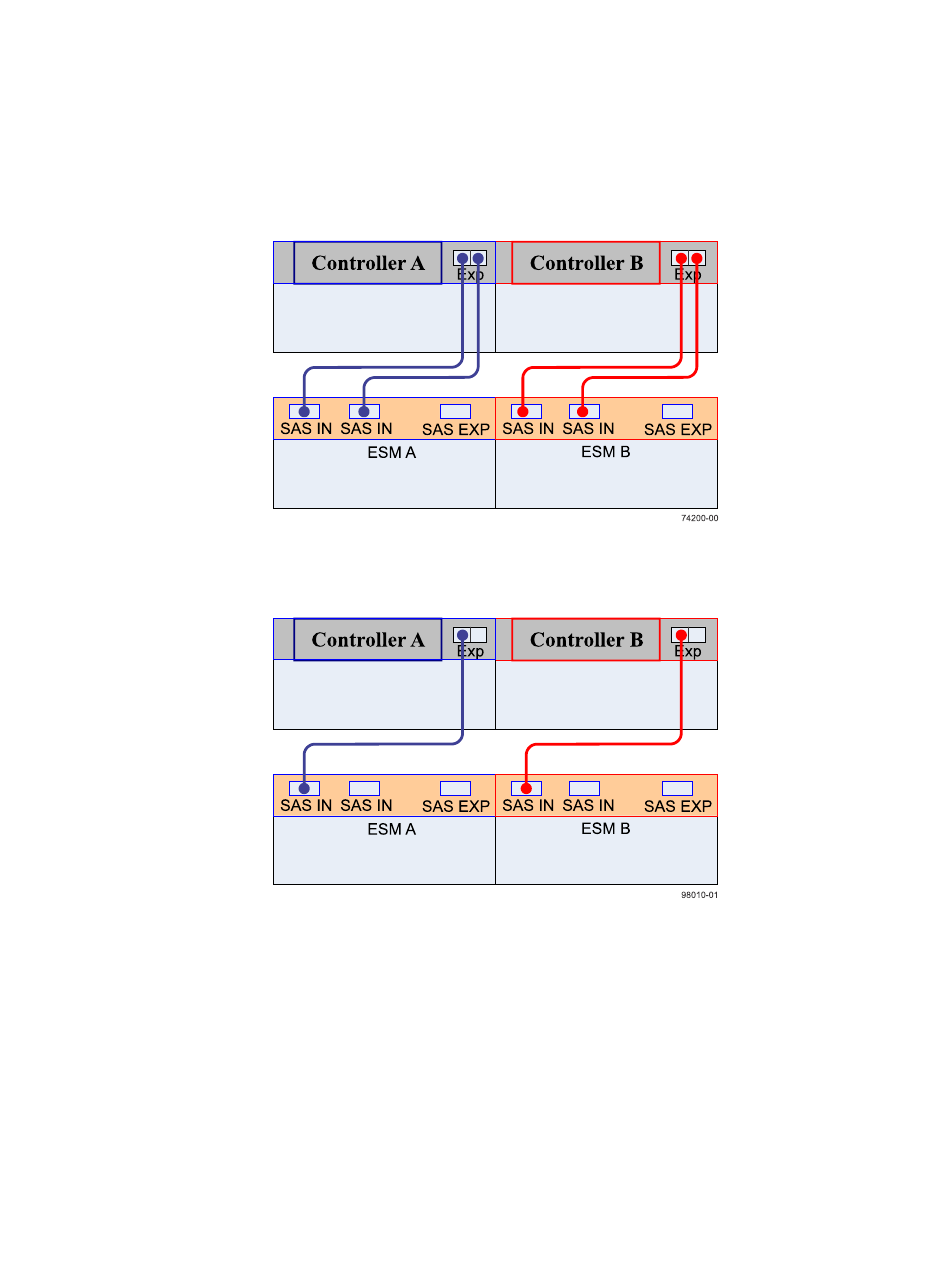

One E2700 controller-drive tray and one drive tray (recommended cabling for maximum
throughput)
One E2700 controller-drive tray and one drive tray
