Hardware installation for Synchronous Mirroring and Asynchronous Mirroring | 143
Controller port A2 and controller port B2 are reserved for mirror relationship
Note:
synchronization upon activation of the Synchronous Mirroring feature. In a four-host-port
system, controller port A4 and controller port B4 are reserved.
The primary site cabling is now complete.
10. Determine whether the secondary site cabling complete.
•
If not, repeat Step
•
If so, go to Step
11. Complete the fabric environment for switch 1 by connecting switch 1A to switch 1B.

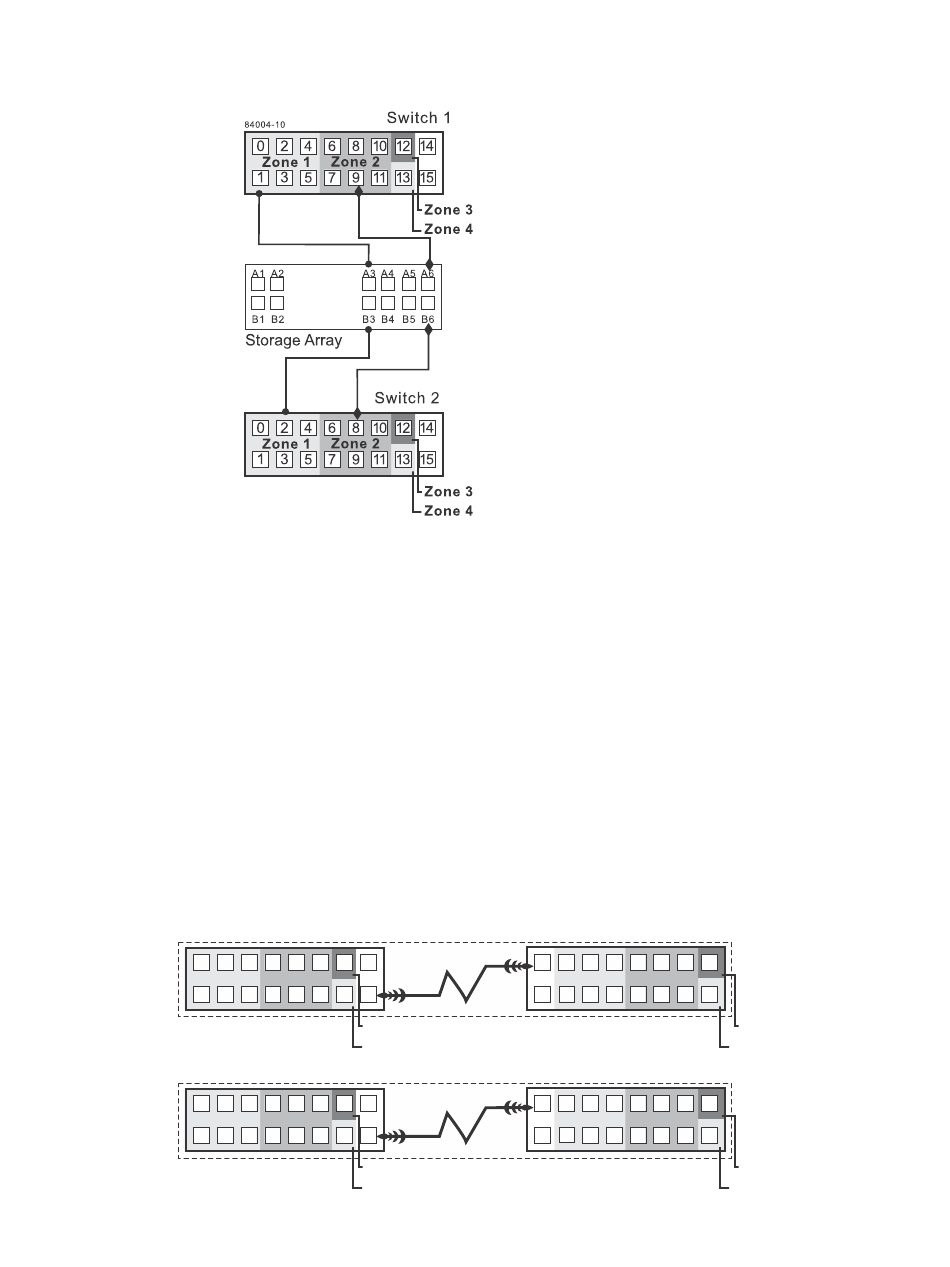

The following figure shows the cabling that is described in Step
page 144.
