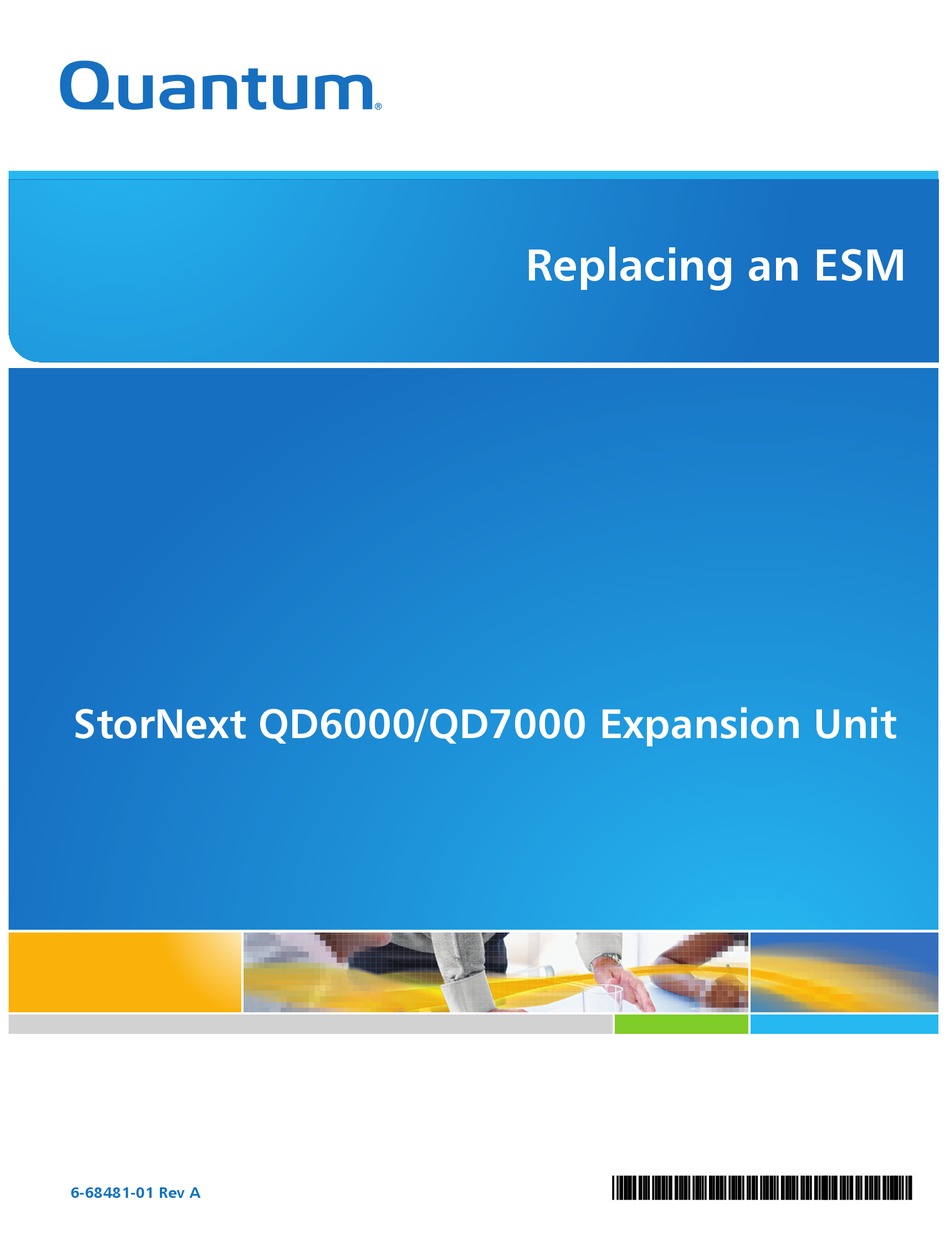

Replacing an ESM
StorNext QD6000/QD7000 Expansion Unit
*6-68481-01 Rev A
6-68481-01 Rev A

Advertisement

loading
Need help?

Need help?

Do you have a question about the StorNext QD6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Quantum StorNext QD6000

Summary of Contents for Quantum StorNext QD6000

  • Page 1 Replacing an ESM StorNext QD6000/QD7000 Expansion Unit *6-68481-01 Rev A 6-68481-01 Rev A...
  • Page 2 StorNext QD6000/QD7000 Expansion Unit, Replacing an ESM, 6-68481-01 Rev A, July 2016, Product of USA. ©2016 All rights reserved. Quantum, the Quantum logo, DXi, Scalar and StorNext are registered trademarks of Quantum Corporation and its affiliates in the United States and/or other countries. All other trademarks are the property of their respective owners.

  • Page 3: About This Guide

    This section provides the following information: • Intended audience • Prerequisites • NetApp to Quantum Naming Decoder Intended audience This guide is intended for storage customers and technicians. Prerequisites Prerequisites for installing and using this product include knowledge of: • Servers and computer networks •...

  • Page 4: Netapp To Quantum Naming Decoder

    NetApp to Quantum Naming Decoder Table 1 to correlate the NetApp product nomenclature to the equivalent Quantum-storage naming conventions. Table 1 Product Nomenclature E-Series NetApp Product Quantum-Storage Description Controller-Drive Tray Base System Quantum uses Base System when referring to a drive tray with the RAID controllers.
  • Page 5 ® This procedure is for systems running SANtricity 10.83 and later. NetApp® E-Series Storage Systems: Replacing an ESM Canister in the DE6600 Drive Tray To download SANtricity ES Storage Manager and related product documentation, go to the NetApp Support Site at support.netapp.com. Before you replace the environmental services module (ESM) canister in the DE6600 drive tray, gather antistatic protection and a replacement ESM canister.
  • Page 6 5. Check the ESM Service Action Required LED to locate the failed ESM canister (Figure Figure 1 LEDs on the ESM Canister Link Fault LED (Port 1A Bypass) (Green) Link LED (Port 1A Data Rate) (Green) Link LED (Port 1B Data Rate) (Green) Link Fault LED (Port 1B Bypass) (Green) Service Action Allowed LED (Blue) Service Action Required LED (Amber)
  • Page 7 9. Remove the ESM canister from the drive tray (Figure 2) by pressing the orange tab toward the black tab, moving the levers to the outside, and then pulling the ESM canister toward you. Figure 2 Removing an ESM Canister While removing the ESM canister, you might notice an increase in fan speed.
  • Page 8 17. Remove the antistatic protection. 18. Gather support data about your updated storage array by using one of these methods: Use the storage management software to collect and save a support bundle of your storage array. From the Array Management Window toolbar, select Monitor >> Health >> Collect Support Data. Then name and specify a location on your system where you want to store the support bundle.

This manual is also suitable for:

Stornext qd7000
