146 | Hardware Cabling Guide
You must configure the zones on the switches so that there is one port per zone for a storage array
connection and one port per zone for each host.
You must zone the switches so that a single host adapter can access only one controller per storage
array.
The switches in the following figure contain 16 ports each, which leaves many unused ports per
switch. The remaining ports can be distributed among the other zones. However, it is recommended
that most remaining ports be assigned to the zones that contain the host connections (zone 1). This
setup allows connections for additional hosts.

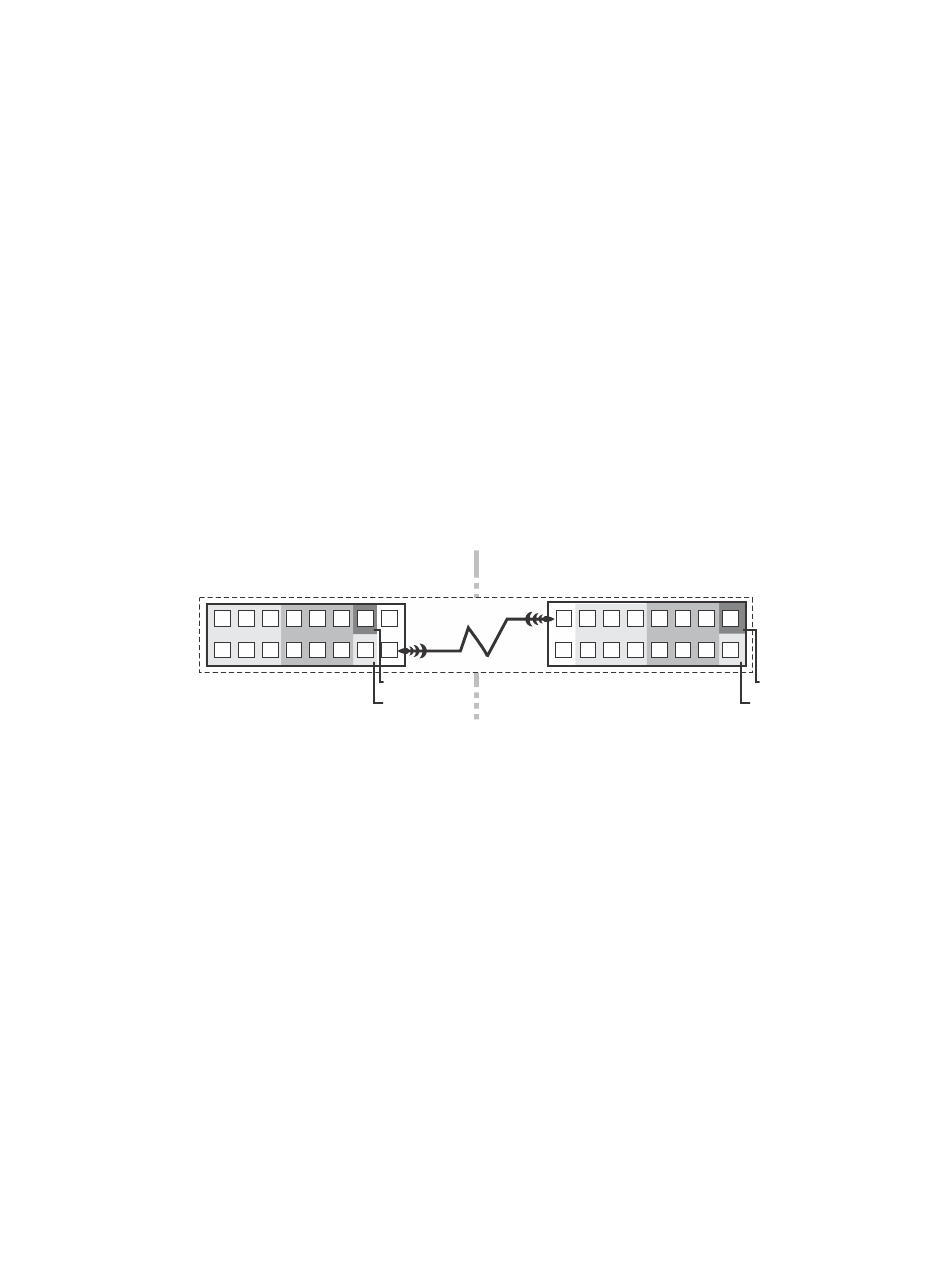

The following figure shows how the two switches are zoned for the campus configuration.
0 2
4
Zo n e 1
1 3 5
75087
Review the requirements in this section and the zoning example in the figure above to make sure that
both switches are correctly zoned before proceeding. For more information, see
configurations overview
Cabling for the campus configuration
After both Fibre Channel switches are correctly zoned, set up the campus configuration for the
Synchronous Mirroring feature or the Asynchronous Mirroring feature.
About this task
Start the installation at the primary site. Repeat these steps for the secondary site when instructed to
do so.
S witc h 1A
Fa b ric 1
6 8 10 12 14
Zo n e 2
7 9 11 13 15
Zo n e 3
Zo n e 4
on page 136.
S witc h 1B
16 18 20 22 24 26 28 30
Zo n e 1 Zo n e 2
17 19 21 23 25 27 29 31
Fibre Channel
Zo n e 3
Zo ne 4
