3. SAS expansion Link Up LED
4. SAS expansion SFF-8088 port connector
5. IB HIC connector 1

Component locations on the E2800 controller shelves

The E2812 controller shelf has twelve 3.5 in. drive bays. The E2824 controller shelf has twenty-four
2.5 in. drive bays. With either drive configuration, the controller shelf is available in two controller
configurations: simplex (single controller) and duplex (two controllers).
The E2860 controller shelf has five drawers. Each drawer has twelve 3.5 in. drive bays. The E2860 is
available only in the duplex configuration.
Keep these points in mind when you compare the figures in this section to your hardware:
• The top of the controller shelf is the side with the labels.
• The configuration of the host ports depends on which host interface card is installed.

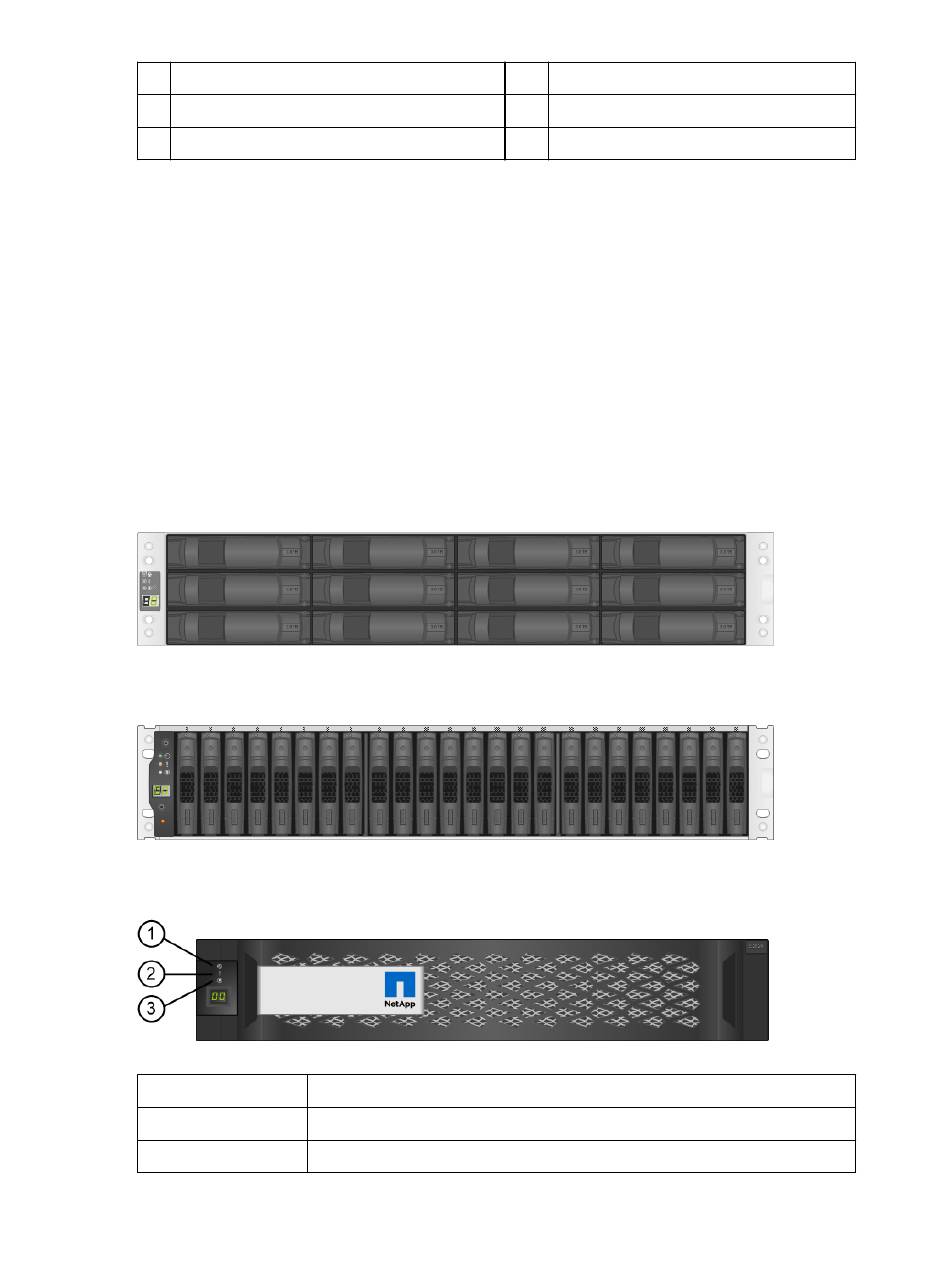

E2812 controller shelf - front view (front bezel removed)
E2824 controller shelf - front view (front bezel removed)
E2812 or E2824 controller shelf front bezel, showing LEDs on the operator display panel
1.
2.
3.
E2860 controller shelf - front view (front bezel removed)
Power
Attention
Locate
Component locations | 33
8. IB HIC connector 2
9. IB HIC Physical Link 2 LED (Green)
10. IB HIC Logical Link 2 LED (Amber)
