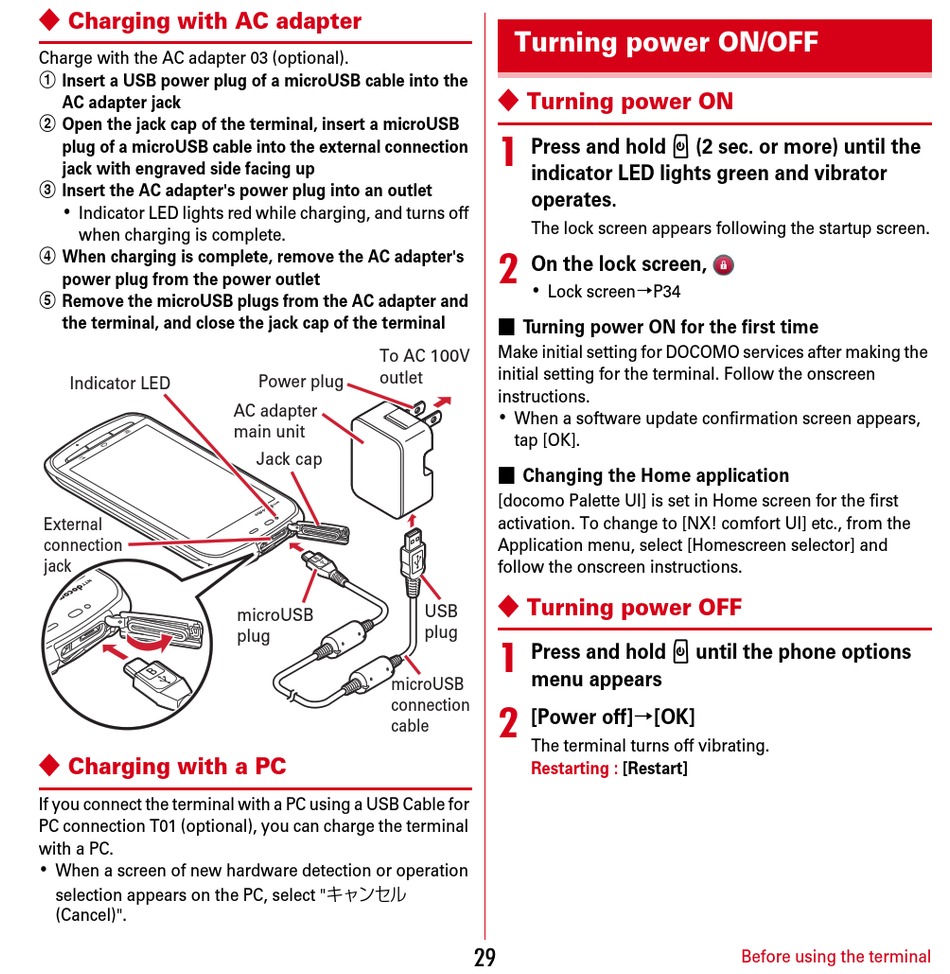

◆ Charging with AC adapter
Charge with the AC adapter 03 (optional).
a Insert a USB power plug of a microUSB cable into the
AC adapter jack
b Open the jack cap of the terminal, insert a microUSB
plug of a microUSB cable into the external connection
jack with engraved side facing up
c Insert the AC adapter's power plug into an outlet
･
Indicator LED lights red while charging, and turns off
when charging is complete.
d When charging is complete, remove the AC adapter's
power plug from the power outlet
e Remove the microUSB plugs from the AC adapter and
the terminal, and close the jack cap of the terminal
Indicator LED
External
connection
jack
◆ Charging with a PC
If you connect the terminal with a PC using a USB Cable for
PC connection T01 (optional), you can charge the terminal
with a PC.
･
When a screen of new hardware detection or operation
selection appears on the PC, select "キャンセル
(Cancel)".
To AC 100V
outlet
Power plug
AC adapter
main unit
Jack cap
microUSB
plug
microUSB
connection
cable

Turning power ON/OFF

◆ Turning power ON
Press and hold X (2 sec. or more) until the
1
indicator LED lights green and vibrator
operates.
The lock screen appears following the startup screen.
2
On the lock screen,
･
Lock screen→P34
■ Turning power ON for the first time
Make initial setting for DOCOMO services after making the
initial setting for the terminal. Follow the onscreen
instructions.
･
When a software update confirmation screen appears,
tap [OK].
■ Changing the Home application
[docomo Palette UI] is set in Home screen for the first
activation. To change to [NX! comfort UI] etc., from the
Application menu, select [Homescreen selector] and
follow the onscreen instructions.
◆ Turning power OFF
USB
plug
Press and hold X until the phone options
1
menu appears
2
[Power off]→[OK]
The terminal turns off vibrating.
Restarting :
29
[Restart]
Before using the terminal
