Installation Guide
Installing Danfoss Link™ CC with NSU

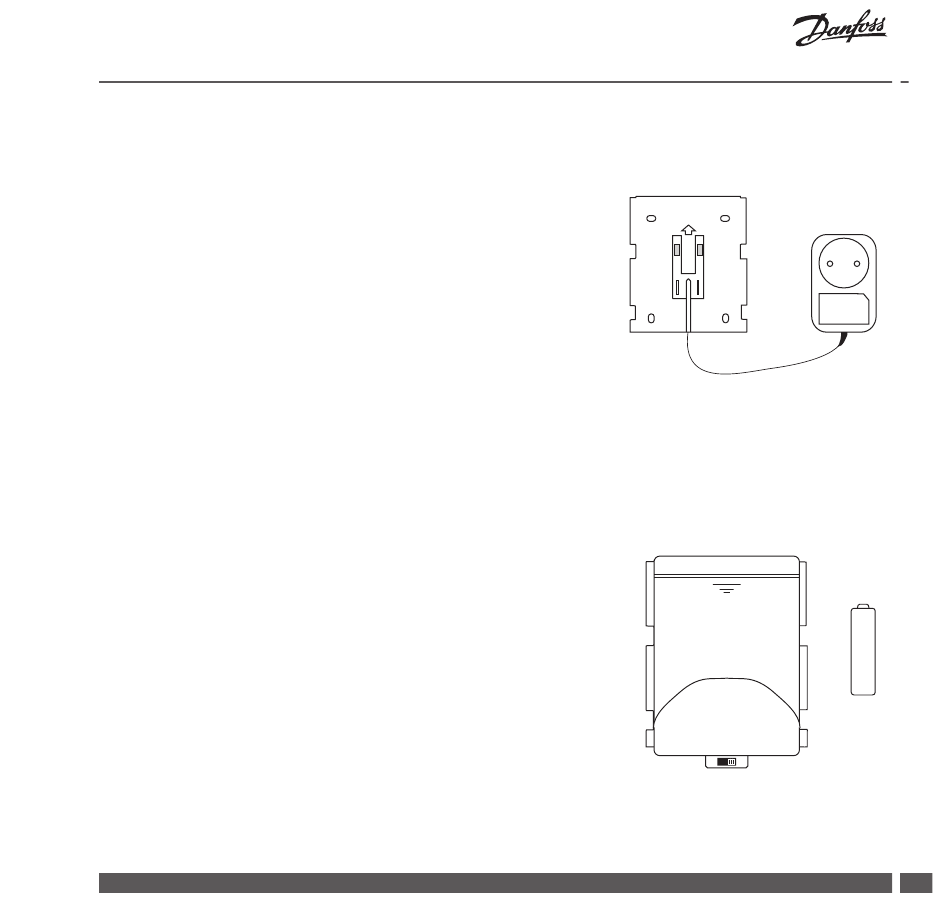

• Hold the mounting plate on the wall and mark up
the 4 screw holes. Make sure the top is level.
• Drill holes and put fitting plugs in.
• Mount the mounting plate with the 4 screws.
Do not mount the Danfoss Link™ CC yet!
• Connect the NSU to a power outlet.
4.1.

Adding devices to the system

When adding devices to the Danfoss Link™ system, the distance between the
Danfoss Link™ CC and the device must not exceed 1.5m. To accomplish this
Danfoss Link™ Battery Supply Unit (BSU) is offered as an installation tool.
1. Slide off the lid and add batteries.
2. Slide the lid back on and attach the Danfoss
Link™ BSU battery pack onto the back of the
Danfoss Link™ CC. When ready to do the com-
missioning, turn the switch located on the
Danfoss Link™ BSU to the ON position.
Danfoss Link™ CC will now start up. This takes approxi-
mately 30 seconds.
A battery pack (BSU) can be ordered on Danfoss code no. 014G0262.
