- Page 1 MAKING MODERN LIVING POSSIBLE Installation Guide Danfoss Link™ Central Controller www.danfoss.com...
-
Page 2: Table Of Contents
Installation Guide Danfoss Link™ CC 1. Content 1. Quick guide for installation ......... . 4 2. - Page 3 5.4. Factory reset of Danfoss Link™ CC ........
-
Page 4: Quick Guide For Installation
Manual Updates “OK” www.link.danfoss.com Tips! • The key can be used at any point during installation. • Always look for the latest software version at www.link.danfoss.com before installation. See chapter 6 Upgrading software version. 06/2013 VISGL702 Danfoss Heating Solutions... -
Page 5: Introduction

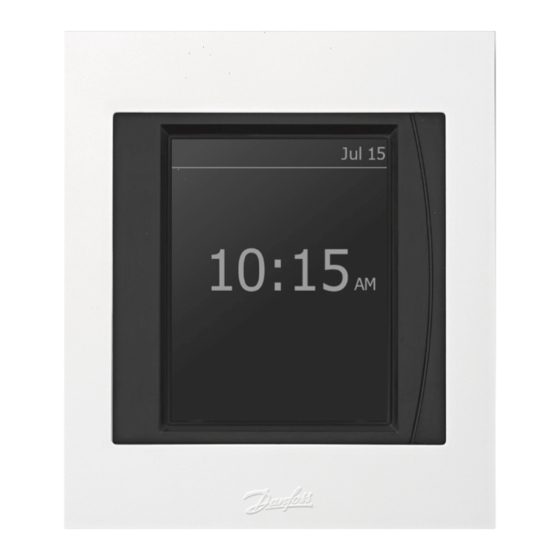

Danfoss Link™ is a programmable, wireless control system for heating systems in residential buildings (up to approximately 300 m The central controlling unit is the Danfoss Link™ CC equipped with a colour touch screen, from which the entire installation can be controlled. -
Page 6: Guidelines For Installation
3. Guidelines for installation The signal strength is sufficient for most applications, however, wireless signals are weakened on the way from the Danfoss Link™ CC to the room devices and each building has different obstacles. Ensure the best performance by keeping the following in mind for planning and installation: • Max. -
Page 7: Correct Installation Plan
No metal objects between the Danfoss Link™ CC and other wireless Danfoss units The Danfoss Link™ CC is installed as central as possible on the floor plan (max. 30m between devices in free space) Wireless signal through walls on shortest possible diagonal distance Danfoss living connect®... -
Page 8: Incorrect Installation Plan
Installation Guide Danfoss Link™ CC 3.2. Incorrect installation plan Metal objects between the Danfoss Link™ CC and other wireless Danfoss units Decentral installation of the Danfoss Link™ CC Crossing walls diagonally Danfoss Danfoss Link™ RS living connect® Link™ HC (service device) -
Page 9: How And When To Use Repeater Units
• Is internal walls or deck construction between floors made of steel rein- forced concrete? • Is the distance between Danfoss Link™ CC and last device more than 20m and signal must pass more than 2 heavy walls (stone or non-reinforced concrete)? • Is the distance between Danfoss Link™... -
Page 10: Where To Place Repeater Units
Installation Guide Danfoss Link™ CC 3.4. Where to place repeater units Plan view, single floor building Concrete wall ™ Danfoss Link steel reinforced Signal blocked Strong signal Strong signal Repeater unit 06/2013 VISGL702 Danfoss Heating Solutions... - Page 11 Installation Guide Danfoss Link™ CC Cross section view - building with more than one floor 1st floor Repeater unit Strong signal Ground level Strong signal Signal blocked Danfoss Link™ CC Danfoss Heating Solutions VISGL702 06/2013...
-
Page 12: Installation
Link™ CC 140-170 cm Installing Danfoss Link™ CC with In-Wall PSU • Hold the PSU over the wall box and mark up the 4 screw holes. Make sure the top is level. • Drill holes and put fitting plugs in. -
Page 13: Adding Devices To The System
Adding devices to the system When adding devices to the Danfoss Link™ system, the distance between the Danfoss Link™ CC and the device must not exceed 1.5m. To accomplish this Danfoss Link™ Battery Supply Unit (BSU) is offered as an installation tool. -
Page 14: Connecting Power, Setting Country, Language And Date/Time
Set date and time 4.3. Starting up the installation menu • Remove the front cover of the Danfoss Link™ CC by gently pulling it off, pull near the edges of the cover. Press the SETUP pin for 3 seconds to enter the •... -
Page 15: Mounting Mains Powered Devices
Power-up all mains powered devices first, and any repeater units that might be needed. Note! • If Danfoss Link™ HC is used, connect all actuators (TWA), before mains powering the unit. • ON/OFF relays are only visible in the end-user menu. -
Page 16: Adding Service Devices
Adding service devices Always add dedicated repeater units first! Danfoss Link™ CC supports many different types of service devices which func- tions as both simple ON/OFF devices for other electrically equipment, repeater units and controllers for hydronic systems, and other sub-systems. -
Page 17: Mounting Battery Operated Room Devices
This can be done in any order. 4.7. Creating rooms Danfoss recommends to create and add device(s) to one room in a single step, and thereafter move on to the next room. Service Options Rooms and Devices Edit Room Name... -
Page 18: Adding Room Devices
Configure Room Room Devices Add Room Device Room devices Add a device Begin Registration Note! Danfoss Link™ CC Room Devices automatically selects the regulation principle according to the types Press The configuration is valid of devices in the room. -
Page 19: Performing A Network Test
Danfoss Link™ CC is stable. Note! Do not perform the network test before the Danfoss Link™ CC is mounted in its final position and ensure that all living connects® are out of mounting mode, see instructions following the living connect®. -
Page 20: Finalising Installation
Network Start Network Test At the end of the network test the Danfoss Link™ CC awaits for all battery operated devices to wake up and report. Follow the instructions given on the screen. If the network test is running smoothly, there will be no need for further interaction. -
Page 21: Modifying An Existing Installation
Installation Guide Danfoss Link™ CC 5. Modifying an existing installation 5.1. Adding devices to an existing room Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options Rooms and Devices Select Room... -
Page 22: Changing Parameters For Heat Regulations
Installation Guide Danfoss Link™ CC 5.2. Changing parameters for Heat Regulations Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options Rooms and Devices Select room Rooms and Devices Manage Existing Rooms... - Page 23 • Regulation type: only in connection with electrical heating systems. Note! Use pincode [0044] to change between the following regulation types: Room sensor (regulates only by room temperature) - if only Danfoss Link™ RS is fitted (hydronic floor heating) or Danfoss Link™ RS + Danfoss Link™ FT (electrical heating).
-
Page 24: Removing A Room Or Service Device From The Network
Installation Guide Danfoss Link™ CC 5.3. Removing a room or service device from the network Devices can be removed from the network by pressing and holding a button while switching the power on/off (see illustrations). Press the button for approx. - Page 25 Installation Guide Danfoss Link™ CC Back-up method for removing a defective or missing device (only if/when previous method is not possible): Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options...
-
Page 26: Factory Reset Of Danfoss Link™ Cc
Remove the front cover and press and hold the reset button, on the right side of the Danfoss Link™ CC, until the controller gives an audible signal. All rooms are now deleted and the Danfoss Link™ CC is reset to factory settings. -
Page 27: Warnings
Installation Guide Danfoss Link™ CC Upgrade Software Upgrade Software Confirm Upgrade Start Upgrade Upgrade Software Now! Insert USB stick 7. Warnings If a warning or an alert occurs, a yellow alert icon will be shown on the standby screen. Follow the procedure to find more information. -
Page 28: Alert Icons
Installation Guide Danfoss Link™ CC 7.1. Alert Icons Battery warning Min. floor temperature limit Tamper proof / Critical battery level Restrictions enabled Low battery level Manual operation Device not responding Icon for floor temperature Too many dead devices Icon for room temperature... -
Page 29: Technical Specifications And Approvals
Installation Guide Danfoss Link™ CC 8. Technical specifications and approvals ™ Danfoss Link Operating voltage 15 V DC ±10% Standby power consumption Max. 2 W Screen 3.5” TFT color w. touch Ambient temperature -10 to +40 °C Storage temperature -20 to +65 °C Ball pressure test temperature 75 °C... - Page 30 Installation Guide Danfoss Link™ CC ™ Danfoss Link PSU (In-Wall) Operation voltage 100-250 V AC 50/60 Hz Recommended protection fuse Max. 16 A Output voltage 15 V DC ±10% Standby power consumption Max. 0.15 W Max. load 10 W Cable specifications Recommended 1.5 mm...
-
Page 31: Disposal Instructions
BSU (Battery Supply Unit) Output voltage 15 V DC ±10% 10 x AA (not included) Number of batteries Danfoss Link™ CC is tested for safety and EMC requirements as specified in EN60730-1 and EN60730-2-9. 9. Disposal instructions Danfoss Heating Solutions VISGL702... - Page 32 Danfoss A/S Indoor Climate Solutions Ulvehavevej 61 7100 Vejle Denmark Phone: +45 7488 8500 Fax: +45 7488 8501 Email: heating.solutions@danfoss.com www.heating.danfoss.com VISGL702...
