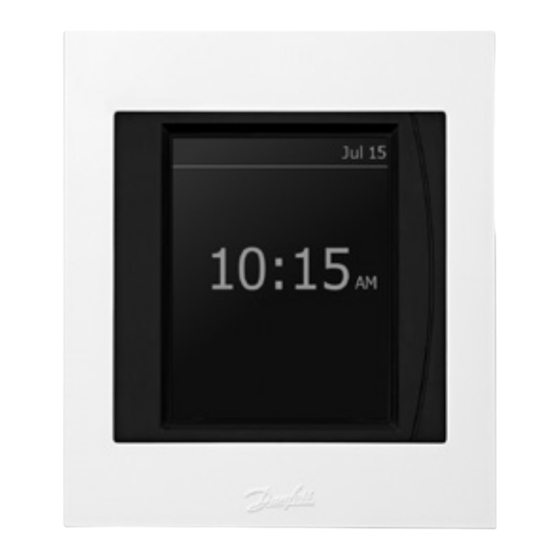

- Page 1 Installation Guide Danfoss Link™ CC Central Controller www.danfoss.com...
- Page 2 Installation Guide Danfoss Link™ CC Danfoss Heating Solutions VISGL90N 12/2014...
- Page 3 Installation Guide Danfoss Link™ CC Installation Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Installationsanleitung .
- Page 4 Installation Guide Danfoss Link™ CC 12/2014 VISGL90N Danfoss Heating Solutions...
-
Page 5: Table Of Contents
Installation Guide Danfoss Link™ CC Content 1 . Quick guide for installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 2 . - Page 6 5.4. Factory reset of Danfoss Link™ CC ........28...
-
Page 7: Quick Guide For Installation
Danfoss Link™ CC in its final position. Link™ CC. Tips! • The key can be used at any point during installation. • Always look for the latest software version at www.link.danfoss.com before instal- lation. See chapter 7: Upgrading software version. Danfoss Heating Solutions VISGL90N 12/2014... -
Page 8: Introduction
This installation guide contains all information about the Danfoss Link™ CC and how to get started. It guides through recommendations and considerations that must be taken into account when handling a wireless system - and it describes configuration of the system, to ensure a smooth and reliable system set-up. -
Page 9: Guidelines For Installation
Guidelines for installation The signal strength is sufficient for most applications, however, wireless signals are weakened on the way from the Danfoss Link™ CC to the room devices and each building has different obstacles. Ensure the best performance by keeping the following in mind for planning and installation: •... -
Page 10: Correct Installation Plan
No metal objects between the Danfoss Link™ CC and other wireless Danfoss units. The Danfoss Link™ CC is installed as central as possible on the floor plan (max. 30 m between devices in free space). Wireless signal through walls on shortest possible diagonal distance. -
Page 11: Incorrect Installation Plan
Installation Guide Danfoss Link™ CC 3 .2 . Incorrect installation plan Metal objects between the Danfoss Link™ CC and other wireless Danfoss units. Decentral installation of the Danfoss Link™ CC. Crossing walls diagonally. Danfoss Link™ HC Danfoss Link™ RS living connect®... -
Page 12: How And When To Use Repeater Units
• Is internal walls or deck construction between floors made of steel rein- forced concrete? • Is the distance between Danfoss Link™ CC and last device more than 20 m and signal must pass more than two heavy walls (stone or non-reinforced concrete)? •... -
Page 13: Where To Place Repeater Units
Installation Guide Danfoss Link™ CC 3 .4 . Where to place repeater units Plan view, single floor building Concrete wall, steel reinforced Danfoss Link™ CC Signal blocked Strong signal Strong signal Repeater unit Danfoss Heating Solutions VISGL90N 12/2014... - Page 14 Installation Guide Danfoss Link™ CC Cross section view - building with more than one floor 1st oor Repeater unit Strong signal Ground level Signal blocked Strong signal Danfoss Link™ CC 12/2014 VISGL90N Danfoss Heating Solutions...
-
Page 15: Installation
Installation bathrooms height Installing Danfoss Link™ CC with In-Wall PSU • Hold the PSU over the wall box and mark up the 4 screw holes. Make sure the top is level. • Drill holes and put fitting plugs in. -
Page 16: Adding Devices To The System
4 . 1 . Adding devices to the system When adding devices to the Danfoss Link™ system, the distance between the Danfoss Link™ CC and the device must not exceed 1.5m. To accomplish this Danfoss Link™ Battery Supply Unit (BSU) is offered as an installation tool. -
Page 17: Starting Up The Installation Menu
Note! If Danfoss Link™ HC is used, connect all actuators (TWA), before mains power- ing the unit.ON/OFF relays are only visible in the end-user menu. • Pair devices to Danfoss Link™ CC. -
Page 18: Adding Service Devices
4 .5 . Adding service devices Always add dedicated repeater units first! Danfoss Link™ CC supports many different types of service devices which func- tions as both simple ON/OFF devices for other electrically equipment, repeater units and controllers for hydronic systems, and other sub-systems. -
Page 19: Mounting Battery Operated Devices
This can be done in any order. 4 .7 . Creating rooms Danfoss recommends to create and add device(s) to one room in a single step, and thereafter move on to the next room. Service Options Rooms and Devices... -
Page 20: Adding Room Devices
Room Devices Add a Device Begin Registration Room Devices Note! Danfoss Link™ CC automatically selects the regulation principle according to the The con guration is valid Press types of devices in the room. To change regulation principle, see 5.2 Changing parameters for Heat Regulations. -
Page 21: Performing A Network Test
Danfoss Link™ CC is stable. Note! Do not perform the network test before the Danfoss Link™ CC is mounted in its final position and ensure that all living connects® are out of mounting mode, see instructions following the living connect®. -
Page 22: Finalizing Installation
Installation Guide Danfoss Link™ CC At the end of the network test the Danfoss Link™ CC awaits for all battery operated devices to wake up and report. Follow the instructions given on the screen. If the network test is running smoothly, there will be no need for further interaction. If the network test is performing slow, the Danfoss Link™... -
Page 23: Modifying An Existing Installation
Installation Guide Danfoss Link™ CC Modifying an existing installation 5 . 1 . Adding devices to an existing room Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options Rooms and Devices... -
Page 24: Changing Parameters For Heat Regulations
Installation Guide Danfoss Link™ CC 5 .2 . Changing parameters for Heat Regulations Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options Rooms and Devices Manage Existing Rooms Rooms and Devices... - Page 25 Danfoss Link™ CC Note! Use pincode [0044] to change between the following regulation types: Room sensor (regulates only by room temperature) - if only Danfoss Link™ RS is fitted (hydronic floor heating) or Danfoss Link™ RS + Danfoss Link™ FT (electrical heating).
-
Page 26: Removing A Room Or Service Device From The Network
Installation Guide Danfoss Link™ CC 5 .3 . Removing a room or service device from the network Devices can be removed from the network by pressing and holding a button while switching the power on/off (see illustrations). Press the button for approx. - Page 27 Installation Guide Danfoss Link™ CC Back-up method for removing a defective or missing device (only if/when previous method is not possible): Remove the front cover and press the SETUP pin for 3 seconds to enter the service area. Service Options...
-
Page 28: Factory Reset Of Danfoss Link™ Cc
Remove the front cover and press and hold the reset button, on the right side of the Danfoss Link™ CC, until the controller gives an audible signal. All rooms are now deleted and the Danfoss Link™ CC is reset to factory settings. -
Page 29: Wi-Fi And App Connection
Installation Guide Danfoss Link™ CC Wi-Fi and App connection 6 . 1 . Connect to Wi-Fi After finishing a successful network test, the Danfoss Link™ CC are ready to be connected to a Wi-Fi network. House Control Customize System... -
Page 30: Connect To App
6 .2 . Connect to App When the Danfoss Link™ CC is connected to a Wi-Fi network with internet access, it can be connected to a Smart Device, using the Danfoss Link App. The app is available on Google Play and App Store. -
Page 31: Edit Connected Devices
Installation Guide Danfoss Link™ CC 6 .3 . Edit connected devices Connected devices can be removed from the system without resetting all remote settings. House Control Customize System Wi-Fi and Apps Settings Wi-Fi and Apps App Options App Options Remove App... -
Page 32: Upgrading Software Version
Danfoss Link™ software is upgradable. New software versions are published on www.link.danfoss.com. Upgrading the software automatically: If you have enabled Wi-Fi and selected Automatic software update the Danfoss Link™ will automatically upgrade to the latest software version. Upgrading the software manually: Download the software upgrade to a USB stick, and insert in the USB port. -
Page 33: Warnings
Installation Guide Danfoss Link™ CC App Options Software Update Warnings If a warning or an alert occurs, a yellow alert icon will be shown on the standby screen. Follow the procedure to find more information. Start House Control House Control... -
Page 34: Alert Icons
Installation Guide Danfoss Link™ CC 8 . 1 . Alert Icons Connected devices can be removed from the system without resetting all remote settings. Min. floor temperature Battery warning limit Tamper proof / Critical battery level Restrictions enabled Low battery level... -
Page 35: Technical Specifications And Approvals
Installation Guide Danfoss Link™ CC Technical specifications and approvals Danfoss Link™ CC Operating voltage 15 V DC ±10% Standby power consumption Max. 2 W Screen 3.5” TFT color with touch Ambient temperature -10 to +40 °C Storage temperature -20 to +65 °C Ball pressure temperature 75 °C... - Page 36 Max. 0.15 W Max. load 10 W Cable specifications Recommended 1.5 mm , max. 2 x 2.5 mm Danfoss Link™ NSU (Net adapter) Operating voltage 100-240 V AC, 50/60 Hz Recommended protection fuse Max. 16 A Output voltage 15 V DC ±10% Standby power consumption Max.
- Page 37 Danfoss Link™ BSU (Battery Supply Unit) Output voltage 15 V DC ±10% Number of batteries 10 x AA (not included) Danfoss Link™ CC is tested for safety and EMC requirements as specified in EN60730-1 and EN60730-2-9. Danfoss Heating Solutions VISGL90N 12/2014...
-
Page 38: Disposal Instructions
Installation Guide Danfoss Link™ CC 10 . Disposal instructions 12/2014 VISGL90N Danfoss Heating Solutions... - Page 39 Danfoss A/S Heating Solutions Haarupvaenget 11 8600 Silkeborg Denmark Phone: +45 7488 8000 Fax: +45 7488 8100 Email: heating.solutions@danfoss.com www.heating.danfoss.com VISGL90N...
