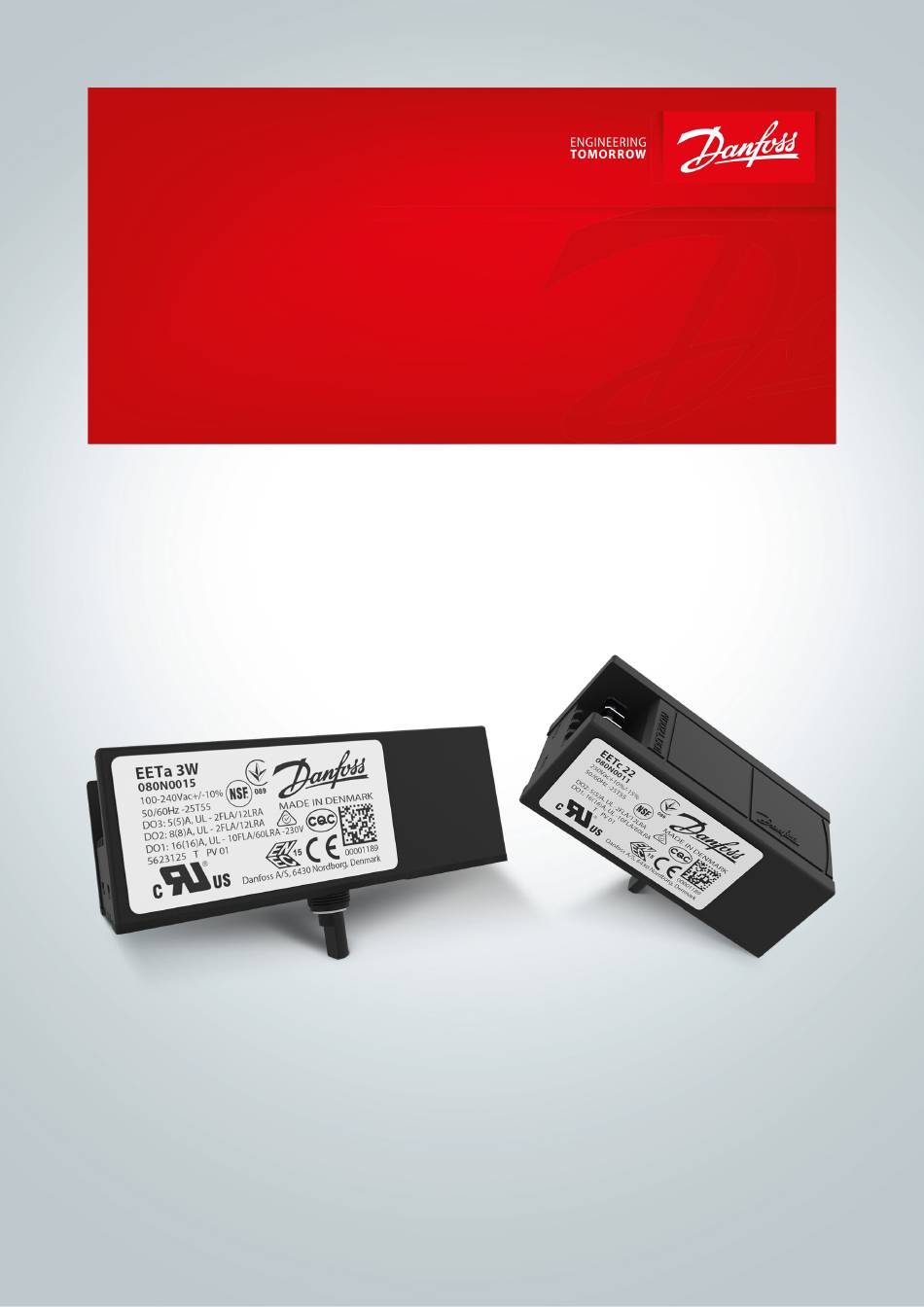

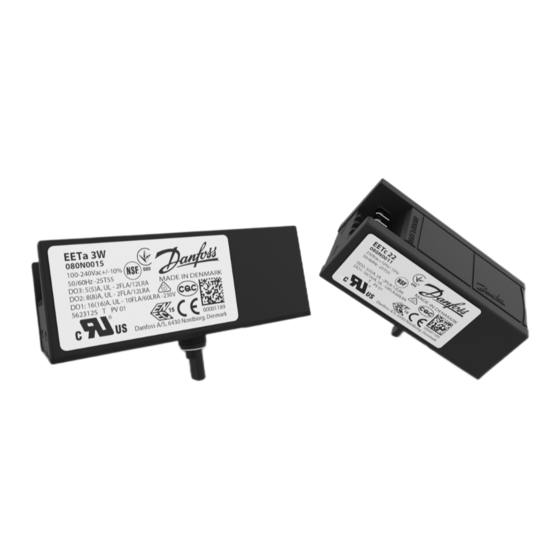

- Page 1 User Guide Refrigeration controller Type EETc and EETa series Enhanced Electronic Thermostat...
-
Page 2: Table Of Contents
Dimensions Connections Mounting Wire routing Accessories KoolKey Mass Programming Key (EKA 201) Bluetooth Adapter (EKA 202 & EKA 203) Product specification Technical specification Parameters EETc 11, 12, 21 and 22 © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 2... - Page 3 EETa 2W and EETa 3W Assignment Thermostat Compressor Alarm Defrost Light ECO Strategy Automatic Heater Control System protection Test Mode Service Troubleshooting and Alarms Troubleshooting Alarms Ordering Certificates, declarations, and approvals Online support © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 3...
-
Page 4: Introduction
Refrigeration controller, type EET series Introduction The EET Series is the next generation of Electronic Thermostats which is a direct replacement of the Mechanical Thermostat (and timer) and Danfoss ETC series. It comes in two variants: EETc (Enhanced Electronic Thermostat,... -
Page 5: Functions
0th position of the voltage curve. This ensures reduced relay contact welding, increased relay life and reduced switching noise. This feature should only be used when the compressor is directly driven by the EET relay and no external contactor is used. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 5... -
Page 6: Compressor Protection Against High Condensing Temperature
Advanced Fan control helps maintain a uniform cooling by switching fan ON and OFF during the compressor OFF cycle. This feature reduces the overall energy consumption while maintaining a uniform temperature in the cabinet. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 6... -
Page 7: Initial Pull Down
Set point Cut-out Pull down offset temp (Pit) > 1 hr (pull down duration) (pull down initiated, when the cabinet temp is above pit for for more than 1 hr) © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 7... -
Page 8: Economy Mode
The second compressor can be configured to any of the auxiliary relays and might require an external relay, if the rated current of the second compressor is more than the auxiliary relay ratings. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 8... -
Page 9: Anti Freeze Function (Applicable For Eeta Only)
This feature helps test all the outputs of the controller instantly when connected to an actual application in the OEM Production line or during field service. The feature can be used when connected to KoolProg or by using MODBUS commands (please contact the Danfoss support team for info about MODBUS commands). Sensor Error handling In the event of cabinet sensor error/ failure, cabinet temperature can be controlled in EET controller using two methods to avoid food spoilage until the failed sensor is replaced. -
Page 10: Installation
M10 x 0.75 17.5 30.5 43.5 mm 48 mm M10 x 0.75 is supplied loose. Figure 14: Mounting plate dimensionfor EETc and EETa 16 mm Recommended Mounting Plate Hole Center © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 10... -
Page 11: Connections
External input for ECO Figure 17: EETc21, EETc22 Cab air sensor Def. Heater/ Aux. Input Evap Sensor Condensor Sensor Door Switch External input for pull down Compressor External input for ECO © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 11... -
Page 12: Mounting
External input for pull down Compressor External input for ECO External input for defrost Mounting Figure 20: Mounting Mounting plate thickness = 0.5 – 2.5 mm Torque 100 N-cm max. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 12... -
Page 13: Wire Routing
Mass Programming Key (EKA 201) Mass Programming Key (EKA 201) - only for EETa controllers: Simple Programming key for programming the controller in production assembly line. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 13... -
Page 14: Bluetooth Adapter (Eka 202 & Eka 203)
Bluetooth Adapter (EKA 202 & EKA 203) Bluetooth Adapter (EKA 202 & EKA 203) - only for EETa controllers: External plug in type module that provides wireless connectivity with Danfoss mobile application "KoolConnect". Figure 25: Bluetooth Adapter (EKA 202 & EKA 203) -
Page 15: Product Specification
Operating temperature sensing control suitable for incorporation into commercial air-conditioning and refrigeration applica- tions Construction of control Incorporated control Power supply 100 – 240 V AC +/- 10%, 50/60 Hz, Non isolated © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 15... - Page 16 93% RH, Condensing Installation Spindle mounted Cold Space Installability Relay switching Zero cross technology (all relays) Overvoltage category III: 100 – 240 V (ENEC, UL recognized) Surge Protection 4 KV © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 16...
-
Page 17: Parameters
To prevent the compressor from frequent cut-ins, the parameter ensures that the compressor remains off for at least the specified time under this parameter. It over- rides the cut-in temperatures. (Tip: Setting it too high could lead to unneccessary warm temperatures) © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 17... -
Page 18: Alarm
Drip Off time (Mins) Defines the time delay to start the compressor after terminating defrost. This feature is to ensure no water droplet on the evaporator before starting the cooling cycle © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 18... -
Page 19: Fan
Defines offset temperature during ECO mode. Offset can be positive or negative. ECO setpoint = setpoint + Eto ECO Door Delay (Mins) Controller will enter ECO mode, if the door are not opened for a time longer than Edd. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 19... -
Page 20: System Protection
Not con- Status of Digital input: figured Open: deactivated Close: activated Not Configured: Di switch not configured Spindle position (%) Current position of the spindle Warm - 0% Cold -100% © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 20... -
Page 21: Eeta 2W And Eeta 3W
- Configured for defrost heater or defrost valve FAn - Configured for evaporator fan LIg - Configured for Cabinet Light ALA - Configured for External Alarm Scc - Second compressor © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 21... -
Page 22: Thermostat
Time delay to raise alarm once the low temperature alarm limit is reached High temp Alarm delay (Mins) Time delay to raise alarm once the high temperature alarm limit is reached © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 22... -
Page 23: Defrost
The initial defrost duration is the number of compressor cycles after which initial de- frost is deactivated: "0" : no initial defrost "1-998" : number of compressor cycles before deactivation "999" : initial defrost always active © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 23... -
Page 24: Fan
Holiday Mode and set the tempera- ture as per Holiday offset Holiday Temperature offset (K) Defines the offset temperature during Holiday Mode. Offset can be positive or nega- tive © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 24... -
Page 25: Automatic Heater Control
It enhances the relay life and avoids relay sparks during relay ON and OFF. If “Yes” is selected, relays will be switched ON and OFF when the line voltage is closer to zero © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 25... -
Page 26: Test Mode
Relay 2 Status It displays the status of Relay 2 (ON / OFF) Relay 3 Status It displays the status of Relay 3 (ON / OFF) (applicable only for EETa 3W) © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 26... - Page 27 Defrost interval counter based on accumulated compressor runtime time (Mins) Defrost Interval counter - Elapsed 32767 Defrost interval counter based on elapsed time time (Mins) Main Voltage Main power supply voltage © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 27...
-
Page 28: Troubleshooting And Alarms
2 blinking there is about 2.5 seconds gap. If there are multiple alarms, LED blinking pattern shows the alarm raised first, next active alarm will be displayed only when the first raised alarm is fixed. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 28... -
Page 29: Ordering
Cables for Programming tools and Bluetooth Adapter Cable for EET, 1 m 080N0324 Cable for EET, 0.5 m 080N0325 The connectors are rated for 28 Amps max. The connectors are rated for 28 Amps max. © Danfoss | Climate Solutions | 2023.07 BC320944106159en-000301 | 29... -
Page 30: Certificates, Declarations, And Approvals
Some approvals may change over time. You can check the most current status at danfoss.com or contact your local Danfoss representative if you have any questions. -
Page 31: Online Support
Online support Danfoss offers a wide range of support along with our products, including digital product information, software, mobile apps, and expert guidance. See the possibilities below. The Danfoss Product Store The Danfoss Product Store is your one-stop shop for everything product related—no matter where you are in the world or what area of the cooling industry you work in.
