Altronix Trove2M2 Installation Manuals page 9

1. Fasten standoffs (provided) to pems that match the hole pattern for HID VertX
boards (Fig. 8, pg. 9).
2. Mount boards to standoffs (Fig. 8, pg. 9) utilizing 7/8" pan head screws (provided).
3. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

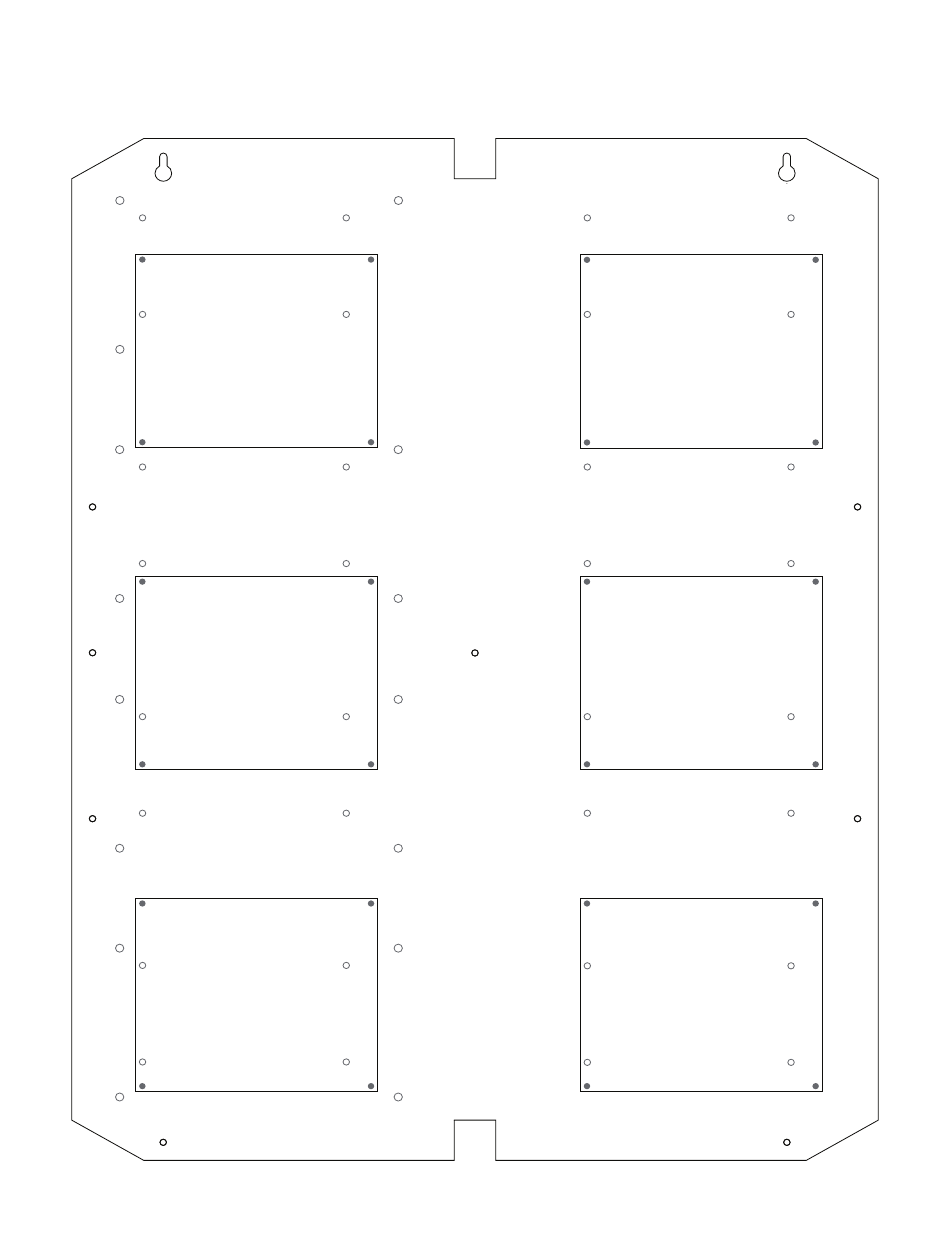

Fig. 8
V100, V200, V300,
V1000, V2000
V100, V200, V300,
V1000, V2000
V100, V200, V300,
V1000, V2000
Altronix/Mercury/HID VertX Enclosure
TV2: Configuration of HID VertX
®
HID VertX
®
HID VertX
®
HID VertX
® Boards
®
V100, V200, V300, V1000 or V2000
®
HID VertX
V100, V200, V300,
V1000, V2000
®
HID VertX
V100, V200, V300,
V1000, V2000
®
HID VertX
V100, V200, V300,
V1000, V2000
- 9 -
