Altronix Trove2M2 Installation Manuals page 10

1. Fasten standoffs (provided) to pems that match the hole pattern for Mercury EP1502, MR52, MR16IN or MR16OUT
(Fig. 9, pg. 10). Use male/female nylon standoffs only.
2. Affix boards to standoffs (Fig. 9, pg. 10) by pressing down the mounting holes onto nylon standoffs.
Make sure that boards are locked onto standoffs.
3. Fasten backplane to Trove2 enclosure door utilizing lock nuts (provided).

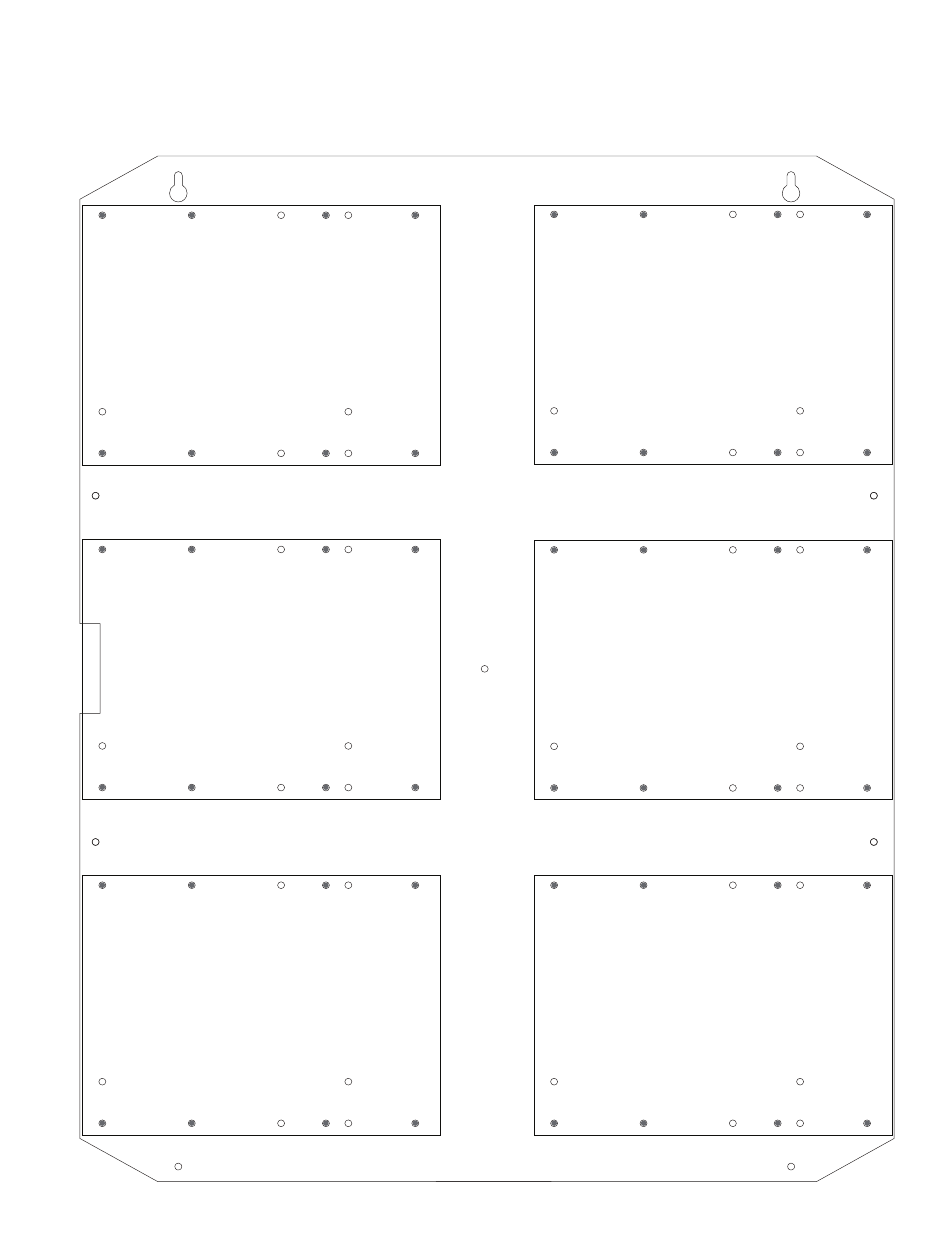

Fig. 9
EP1502, MR52,
MR16IN, MR16OUT
EP1502, MR52,
MR16IN, MR16OUT
EP1502, MR52,
MR16IN, MR16OUT
- 10 -
TMV2: Configuration of Mercury Boards
Mercury
Mercury
Mercury
Mercury
EP1502, MR52,
MR16IN, MR16OUT
Mercury
EP1502, MR52,
MR16IN, MR16OUT
Mercury
EP1502, MR52,
MR16IN, MR16OUT
Altronix/Mercury/HID VertX Enclosure
