Altronix Trove2M2 Installation Manuals page 11

1. Fasten standoffs (provided) to pems that match the hole pattern for Mercury EP2500 or MUX8 (Fig. 10, pg. 11).
Use male/female nylon standoffs only.
2. Affix boards to standoffs (Fig. 10, pg. 11) by pressing down the mounting holes onto nylon standoffs.
Make sure that boards are locked onto standoffs.
3. Fasten backplane to Trove2 enclosure door utilizing lock nuts (provided).

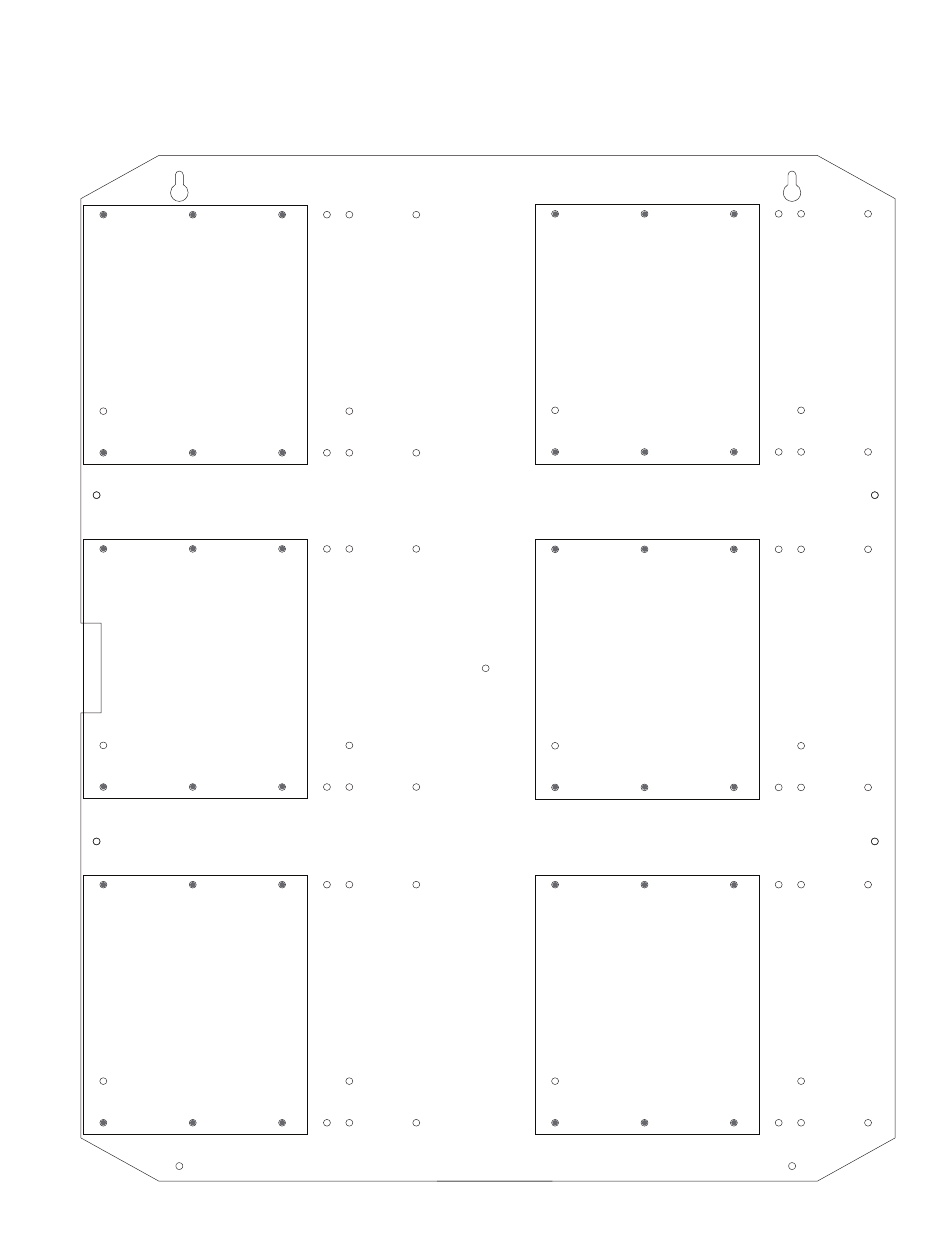

Fig. 10
Mercury
EP2500,
MUX8
Mercury
EP2500,
MUX8
Mercury
EP2500,
MUX8
Altronix/Mercury/HID VertX Enclosure
TMV2: Configuration of Mercury Boards (cont'd)
Mercury
EP2500,
MUX8
Mercury
EP2500,
MUX8
Mercury
EP2500,
MUX8
- 11 -
