Access & Power Integration
Trove2AG2

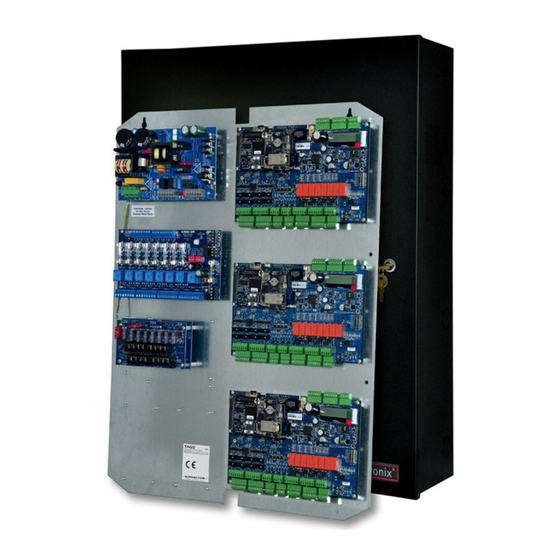

- Trove2 enclosure with Altronix/AMAG M4000 backplane (TAG2)
TAG2
- Altronix/AMAG M4000 backplane only
Trove2AM2
- Trove2 enclosure with Altronix/AMAG M2150 backplane (TAM2)
TAM2
- Altronix/AMAG M2150 backplane only
Trove3AM3
- Trove3 enclosure with Altronix/AMAG M2150 / M4000 backplane (TAM3)
TAM3
- Altronix/AMAG M2150 / M4000 backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TAMAG122418
Installing Company: _____________________ Service Rep. Name: __________________________________________
Address: ________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Related Manuals for Altronix Trove2AG2
Summary of Contents for Altronix Trove2AG2
- Page 1 Trove2AM2 - Trove2 enclosure with Altronix/AMAG M2150 backplane (TAM2) TAM2 - Altronix/AMAG M2150 backplane only Trove3AM3 - Trove3 enclosure with Altronix/AMAG M2150 / M4000 backplane (TAM3) TAM3 - Altronix/AMAG M2150 / M4000 backplane only Installation Guide More than just power.™...
-
Page 2: Specifications
Overview: Trove2AG2/Trove2AM2 and Trove3AM3 accommodates AMAG boards with or without Altronix power supplies and sub-assemblies for access systems. Specifications: Trove2AG2 - Trove2 enclosure with TAG2 Altronix/AMAG M4000 backplane Trove2AG2 accommodates a combination of the following: • Altronix Modules: - Up to two (2) eFlow4NB, eFlow6NB, eFlow102NB, eFlow104NB or PoE201. - Page 3 Install the lower screws and make sure to tighten all screws (Enclosure Dimensions, pg. 10, 12). 3. Mount included UL Listed tamper switch(es) (Altronix Model TS112 or equivalent) in desired location, opposite hinge. Slide the tamper switch bracket onto the edge of the enclosure approximately 2” from the right side (Fig. 1, pg. 3).
- Page 4 AMAG M4000 Boards 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix power supply/chargers and sub-assemblies (Fig. 2, pg. 4). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig. 2, pg. 4).
- Page 5 AMAG M2150 Boards 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix Sub-Assembly boards (Fig. 3, 3a, pg. 5). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig. 3, pg. 5).
- Page 6 AMAG M2150 / M4000 Boards 1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix power supply/chargers and sub-assemblies (Fig. 4, pg. 6). Fasten metal standoffs in the correct locations to provide proper grounding, see below (Fig. 4, pg. 6).
- Page 7 Notes: Trove2AG2 / Trove2AM2 / Trove3AM3 - 7 -...
- Page 8 - UL Listed in the U.S. and Canada. - Local or remote control of up to (2) two Altronix eFlow power output(s) via LAN and/or WAN. - Monitor real time diagnostics: DC output voltage, output current, AC & battery status/service, input trigger state change, output state change and unit temperature.
- Page 9 25.375” x 19.375” x 0.3125” (644.5mm x 482.6mm x 7.9mm). 19.375” (482.6mm) 7.5” 7.5” (190.5mm) (190.5mm) 0.156” ( 3.96mm) 25.375” (644.5mm) 12.62” (320.6mm) 1.0” (25.4mm) 0.45” 1.0” (11.4mm) (25.4mm) 7.5” 7.5” (190.5mm) (190.5mm) 9.2” (233.7mm) Trove2AG2 / Trove2AM2 / Trove3AM3 - 9 -...
- Page 10 (31.75mm) (38.1mm) 2.00” (50.8mm) 6.75” (171.45mm) 8.25” (209.54mm) 27.00” (685.8mm) 8.00” (203.2mm) 0.85” (21.59mm) 2.00” (50.8mm) 1.00” 1.25” (25.4mm) (31.75mm) 1.25” (31.75mm) 2.00” 5.25” 7.00” 5.25” 2.00” (50.8mm) (133.35mm) (177.79mm) (133.35mm) (50.8mm) - 10 - Trove2AG2 / Trove2AM2 / Trove3AM3...
- Page 11 TAM3 Dimensions 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 27” (685.8mm) 23” (584.2mm) Trove2AG2 / Trove2AM2 / Trove3AM3 - 11 -...
- Page 12 (219mm) (222.3mm) Altronix is not responsible for any typographical errors. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com | Made in U.S.A. IITrove2AG2/Trove2AM2/Trove3AM3 L17S MEMBER - 12 -...
