TV2: Configuration of Altronix Power Supply and/or Sub-Assembly Boards
1. Fasten standoffs (provided) to pems that match the hole pattern for Altronix Power Supply/Chargers or Altronix
Sub-Assembly boards (Fig. 7, pg. 8). Use male/female nylon standoffs for the upper two mounting holes in the
board. Use metal standoffs for the bottom mounting holes to provide sufficient grounding for the board.
2. Affix boards to standoffs (Fig. 7, pg. 8) by pressing down the upper mounting holes onto nylon standoffs.
Use provided mounting screws to affix the lower mounting holes. Make sure that boards are locked onto standoffs.
3. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

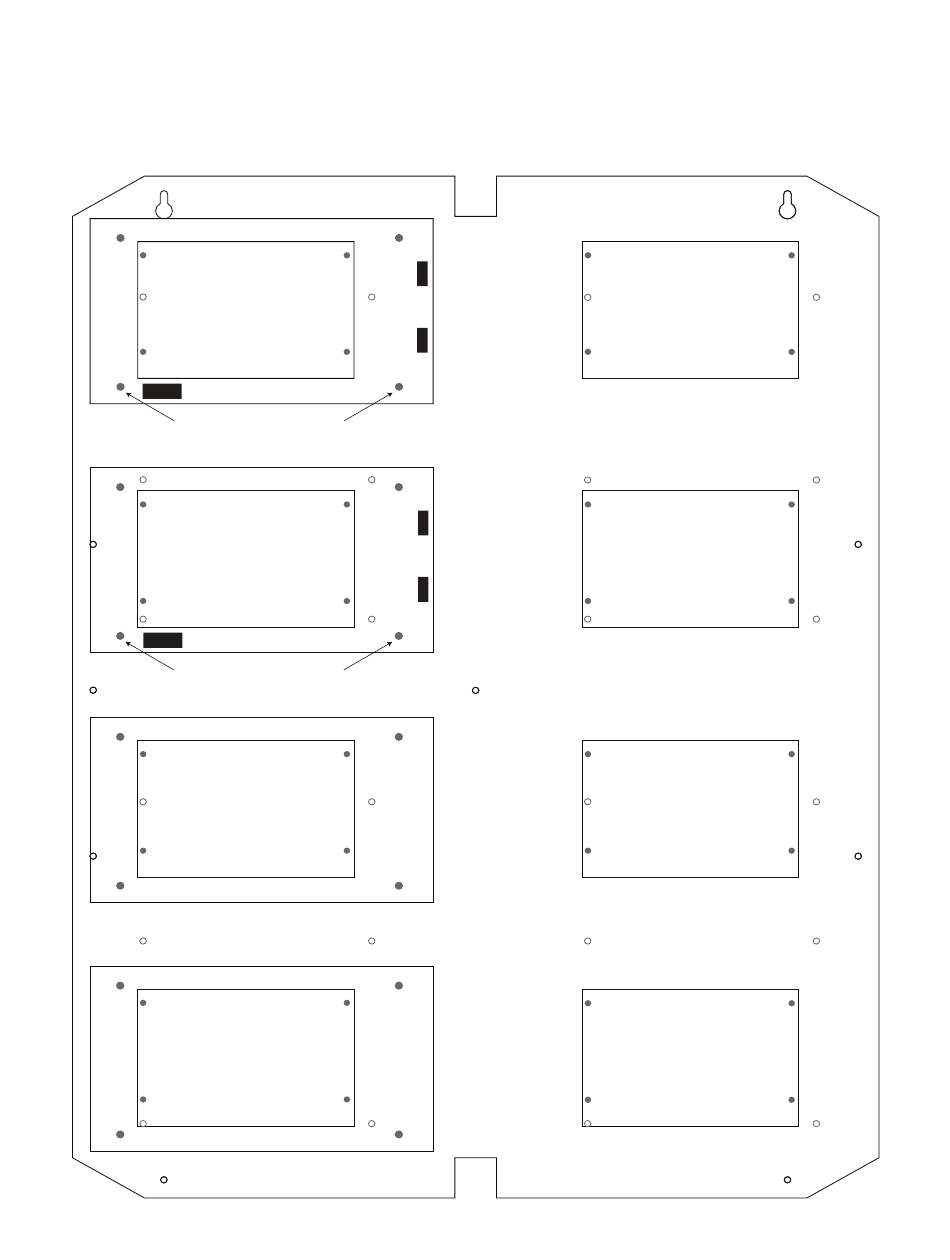

Fig. 7
Power Supply or
Sub-Assembly
Metal Standoff Placement
Power Supply or
Sub-Assembly
Metal Standoff Placement
Sub-Assembly
Sub-Assembly
