1. Fasten standoffs (provided) to pems that match the hole pattern for Mercury MR50 (Fig. 6, pg. 7).
Use male/female nylon standoffs only.
2. Affix boards to standoffs (Fig. 6, pg. 7) by pressing down the mounting holes onto nylon standoffs.
Make sure that boards are locked onto standoffs.
3. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

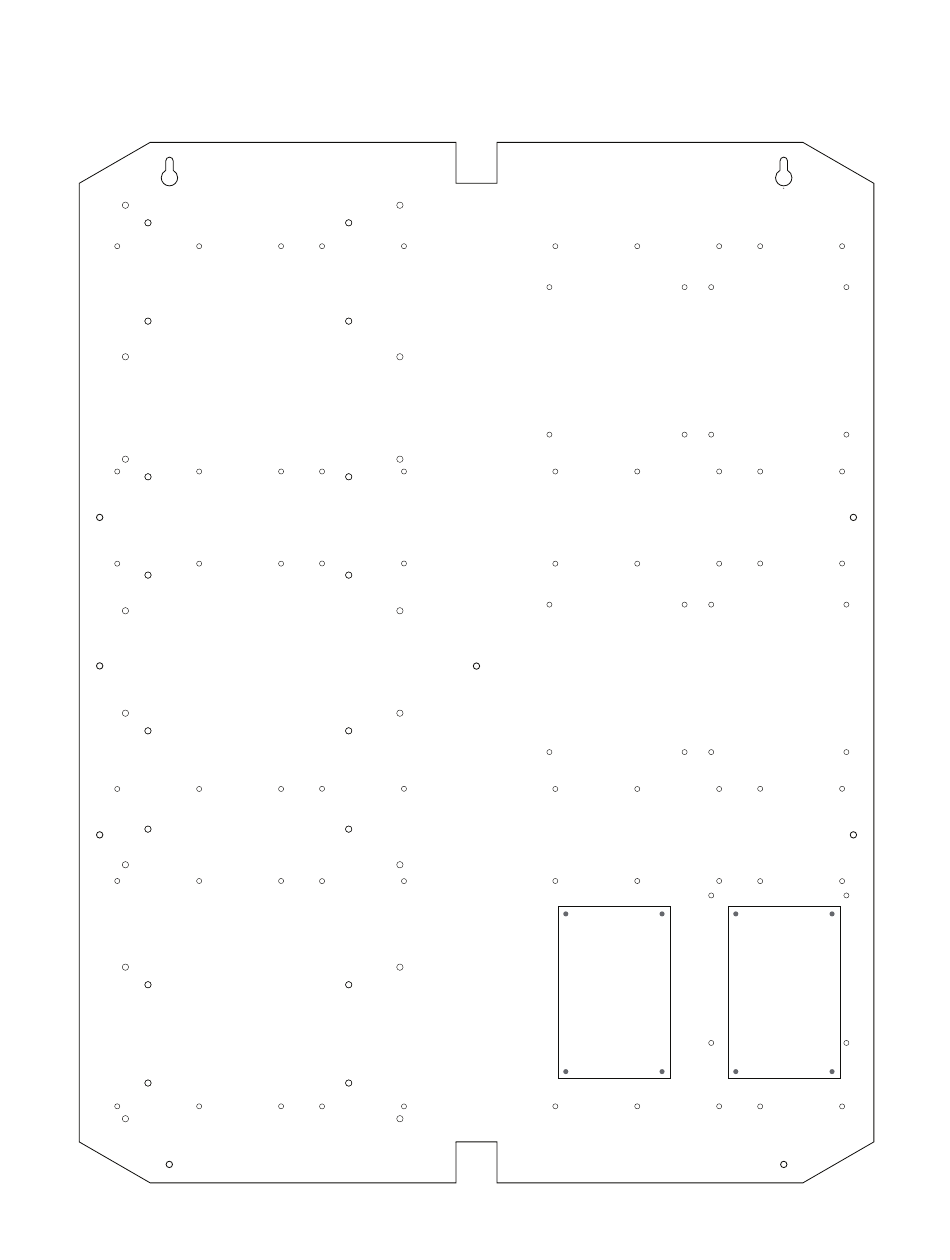

Fig. 6
Altronix/Mercury/HID VertX Enclosure
TM2: Configuration of Mercury Boards (cont'd)
Mercury Mercury
MR50 MR50
- 7 -
