Access & Power Integration
Trove2SS2

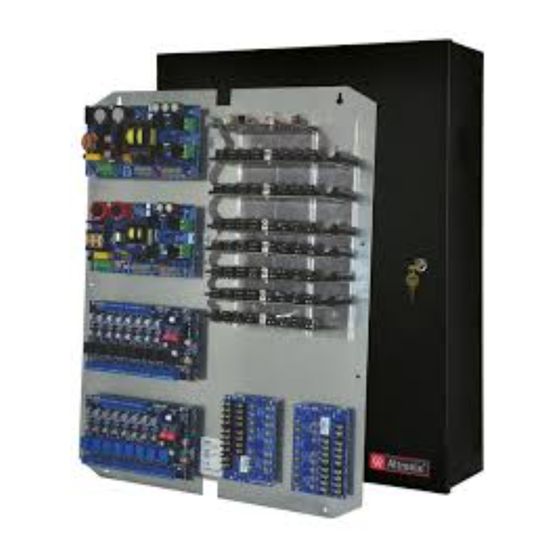

- Trove2 enclosure with Altronix/Lenel-S2 (S2 Security Platform) backplane (TSS2)
TSS2
- Altronix/Lenel-S2 (S2 Security Platform) backplane only
Trove3SS3
- Trove3 enclosure with Altronix/Lenel-S2 (S2 Security Platform) backplane (TSS3)
TSS3
- Altronix/Lenel-S2 (S2 Security Platform) backplane only
Installation Guide
All registered trademarks are property of their respective owners.
Rev. TSS080620
Installing Company: _________________________ Service Rep. Name: __________________________________________
Address: _________________________________________________________ Phone #: _________________________
SIGNALING
More than just power.™
Advertisement
Related Manuals for Altronix TROVE2SS2
Summary of Contents for Altronix TROVE2SS2
- Page 1 SIGNALING Access & Power Integration Trove2SS2 - Trove2 enclosure with Altronix/Lenel-S2 (S2 Security Platform) backplane (TSS2) TSS2 - Altronix/Lenel-S2 (S2 Security Platform) backplane only Trove3SS3 - Trove3 enclosure with Altronix/Lenel-S2 (S2 Security Platform) backplane (TSS3) TSS3 - Altronix/Lenel-S2 (S2 Security Platform) backplane only Installation Guide More than just power.™...
-
Page 2: Specifications
Overview: Trove2SS2 and Trove3SS3 accommodate Lenel-S2 (S2 Security Platform) S2-INST bracket(s) supporting Lenel-S2 (S2 Security Platform) controllers with Altronix power and sub-assemblies for access systems. Specifications: • 16 Gauge backplane and enclosure with ample knockouts for convenient access. Trove2SS2 Trove3SS3... - Page 3 Installation Instructions for Altronix Power Supplies and Sub-Assemblies to TSS2: 1. Fasten spacers (provided) into pem configuration (A), (B) or (C) of backplane (Fig. 2, pg. 3). 2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 2a, pg. 3).
- Page 4 Installation Instructions for Altronix Power Supplies and Sub-Assemblies to TSS3: 1. Fasten spacers (provided) into pem configuration (A), (B) or (C) of backplane (Fig. 3, pg. 4). 2. Mount boards to spacers utilizing 5/16” pan head screws (provided) (Fig. 3a, pg. 4).
- Page 5 TSS2 Dimensions (H x W x D): 25.375” x 19.375” x 0.3125” (644.6mm x 492.1mm x 7.9mm) 19.375” (492.1mm) 2.2” (55.9mm) 2.2” (55.9mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 7.5” (190.5mm) 7.5” (190.5mm) 9.2” (233.7mm) 9.2” (233.7mm) TroveSS Installation Guide - 5 -...
- Page 6 Trove2SS2 Enclosure Dimensions (H x W x D approximate): 27.25” x 21.75” x 6.5” (692.2mm x 552.5mm x 165.1mm) 21.50” (546.1mm) 2.00” (50.8mm) 2.00” (50.8mm) 5.25” (133.35mm) 3.5”(88.9mm) 3.5”(88.9mm) 5.25” (133.35mm) 0.685” (17.4mm) 1.25” Knockouts 0.5625” (14.3mm) (31.8mm) 1.77” 1.125” (28.3mm) (45mm) 2.415”...
- Page 7 TSS3 Dimensions (H x W x D): 34” x 28” x 0.3125” (863.6mm x 711.2mm x 7.9mm) 28” (711.2mm) 2.5” (63.5mm) 0.156” ( 3.96mm) 1.0” (25.4mm) 1.0” (25.4mm) 13.5” 13.5” (342.9mm) (342.9mm) TroveSS Installation Guide - 7 -...
- Page 8 8.75” (222.3mm) 8.62” (219mm) 8.75” (222.3mm) 2” (50.8mm) Altronix is not responsible for any typographical errors. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 web site: www.altronix.com | e-mail: info@altronix.com IITrove SS I23U...
