Altronix Trove2M2 Installation Manuals page 6

1. Fasten standoffs (provided) to pems that match the hole pattern for Mercury EP1501 or MR51e (Fig. 5, pg. 6).
Use male/female nylon standoffs only.
2. Affix boards to standoffs (Fig. 5, pg. 6) by pressing down the mounting holes onto nylon standoffs.
Make sure that boards are locked onto standoffs.
3. Fasten backplane to Trove2 enclosure utilizing lock nuts (provided).

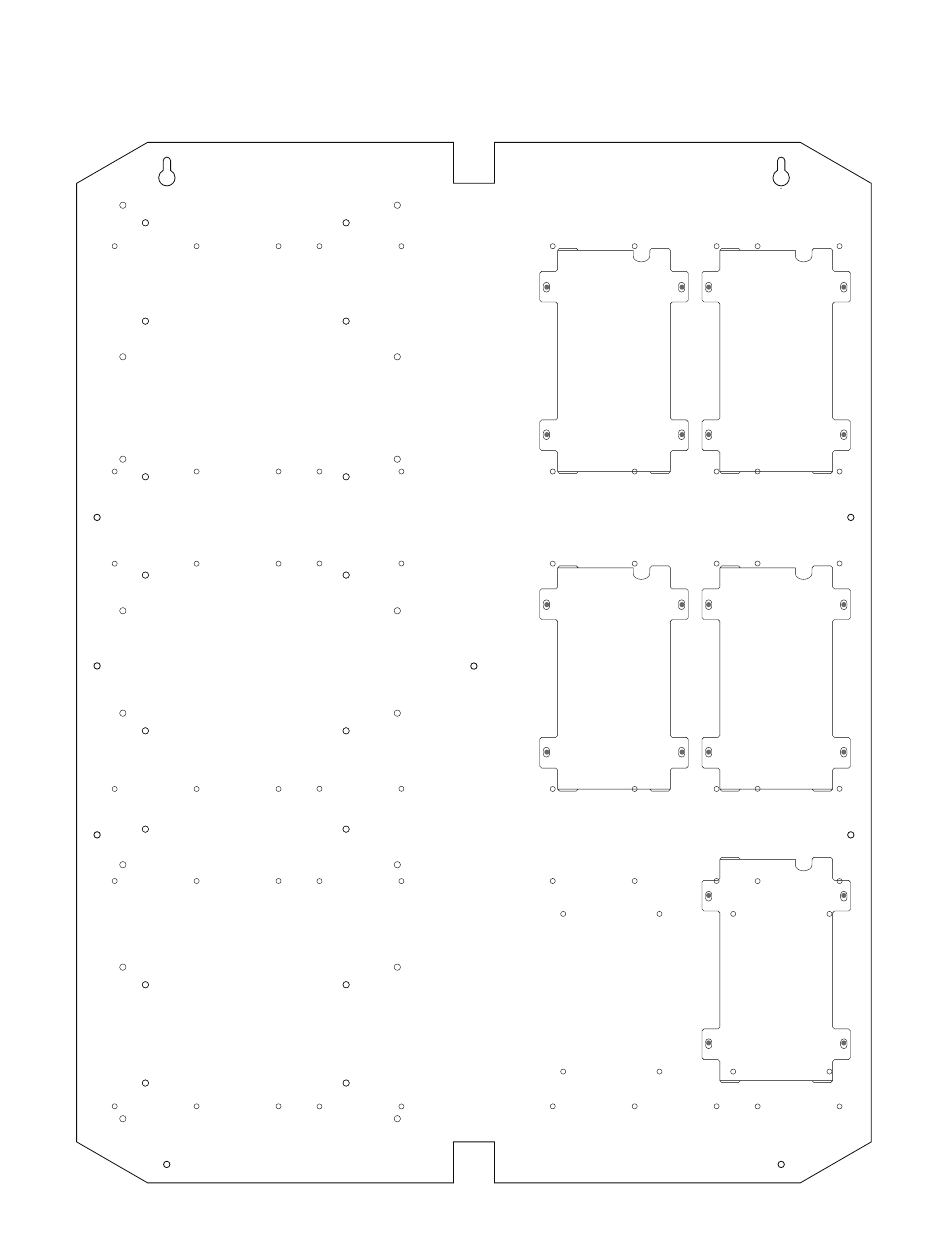

Fig. 5
- 6 -
TM2: Configuration of Mercury Boards (cont'd)
Mercury Mercury
EP1501, EP1501,
MR51e MR51e
Mercury Mercury
EP1501, EP1501,
MR51e MR51e
Mercury
EP1501,
MR51e
Altronix/Mercury/HID VertX Enclosure
