Reset Switch

The behavior of the reset switch is determined by software, which means that it has a
predefined behavior in the integration kit. In the development kit, its behavior is
determined by your implementation. See the following table for details.
Integration
Development
Reset Switch Location
Note

Module LEDs

The modules provide two hardware options for LEDs, with or without on board LED array.
The integration kit provides predefined LED behavior. With the development kit, some
Kit
The reset switch does one of the following:
Ã
If pressed and released immediately, the device is rebooted.
Ã
If pressed and held down (for about 20 seconds) during power-up, the
device is rebooted and restored to the default configuration.
Ã
The behavior of the switch is user-defined.
See "Embedded Module Reset" on page 42 for more information.

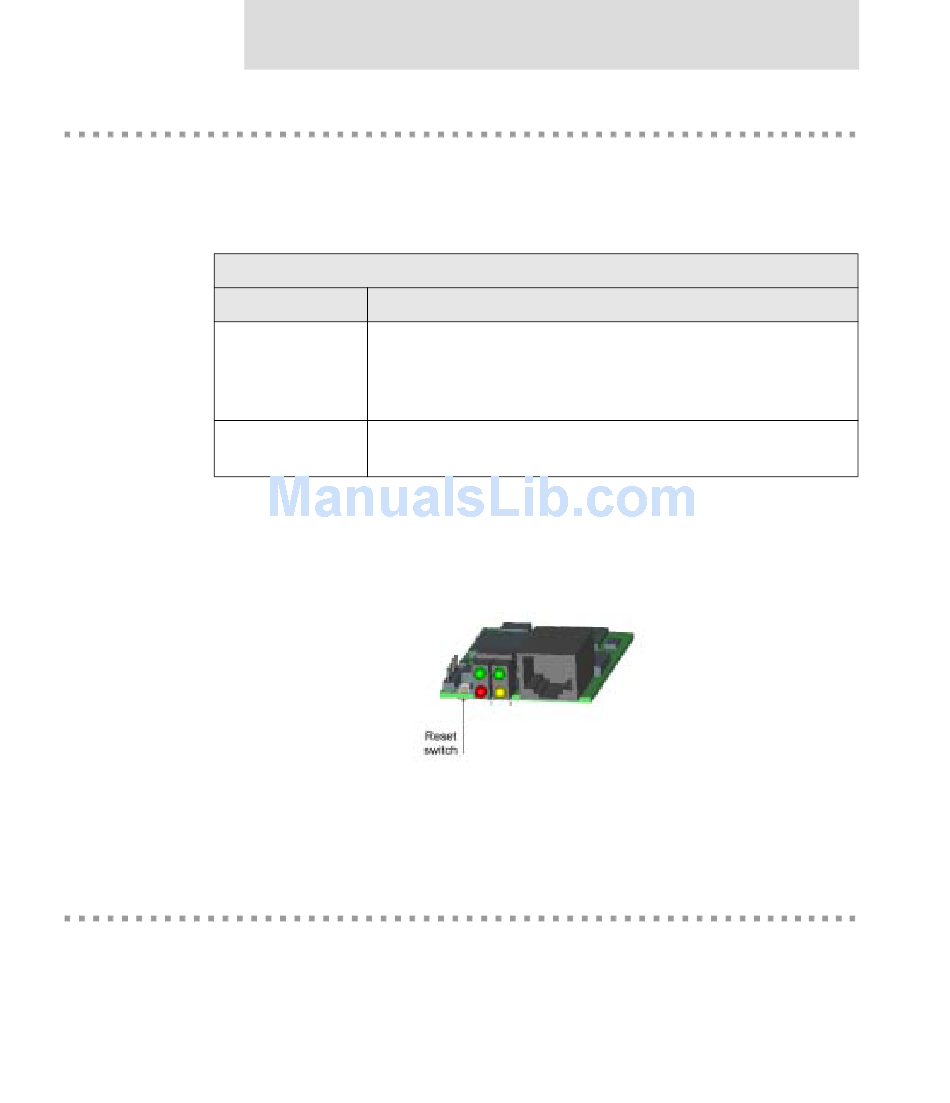

The reset switch is in same location for both wired and wireless modules.
