Digi Connect EM Hardware Reference Manual page 13

Model
Ã
Ã
Ã
DC-WEM-02T-NC
Ã
Ã
Ã
Ã
DC-WEM-02T-C
DC-WEM-02T-S Ã
-S: No JTAG, w/ LED array, w/RJ-45/antenna connectors, for use with Digi
Note
Firmware
-C: No JTAG, w/LED array, RJ-45 / antenna connectors, for use with Custom
Firmware
-NC: No JTAG, w/LED pin header, w/o RJ-45 connector (for Digi Connect
EM), w/antenna connectors (for Digi Connect Wi-EM), for use with custom
firmware (not shown)
-JT: w/ JTAG, w/pin header, w/o RJ-45 connector (for Digi Connect EM), w/
antenna connectors (for Digi Connect Wi-EM), for use with custom firmware
development
Digi Connect Wi-EM Antennae
The Digi Connect Wi-EM is available with dual-diversity antenna connectors. The right
antenna (P2) is always used for transmit and receive.The left antenna is receive only. The
antenna will choose the best signal (pin vs. socket). The Digi Connect Wi-EM always has
two antenna connectors but using the second antenna is optional.
The antennae are connected to the module with reverse polarity SMA connectors (sub-
miniature size A). The antennae fit the connectors on the module only one way to ensure a
proper connection. The antennae function best when placed perpendicular to each other
(one straight, the other up or down) to prevent interference from each other.

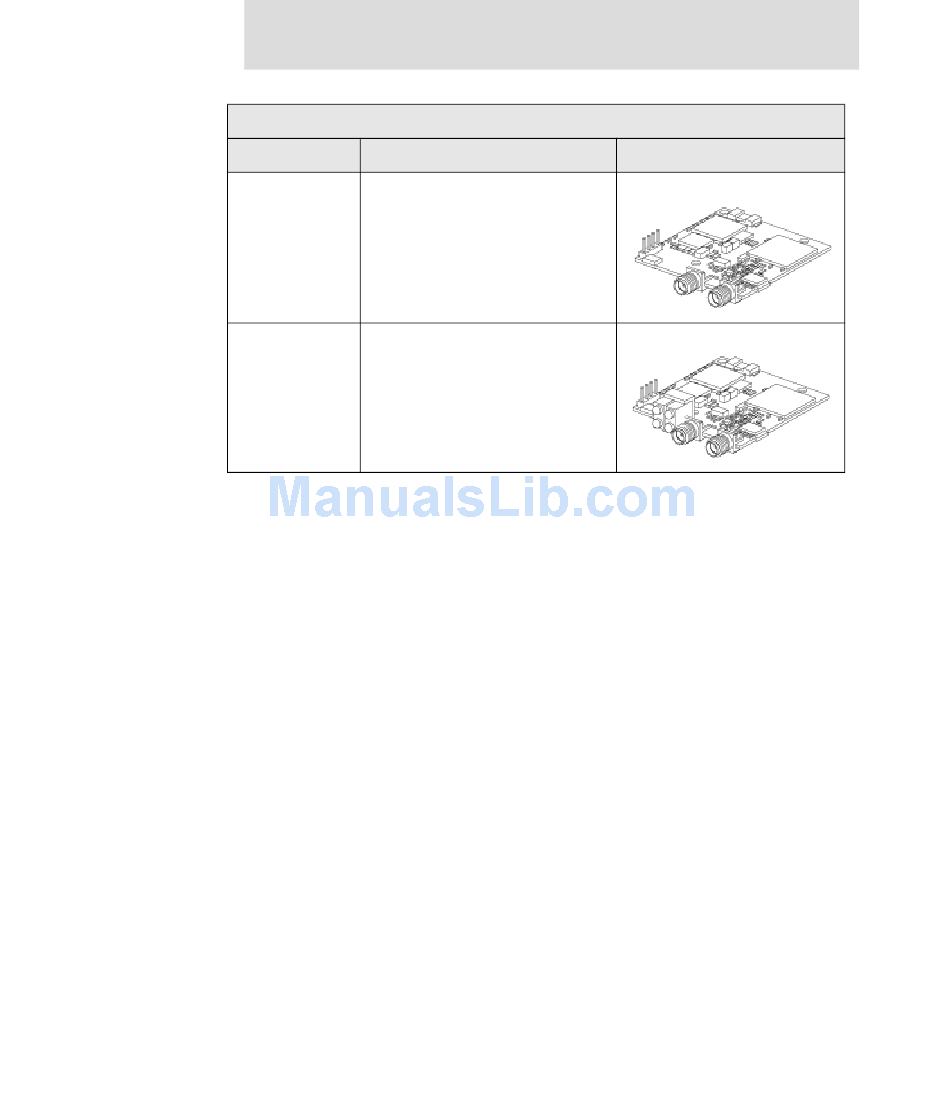

Digi Connect Wi-EM Modules
Description
No JTAG interface
Pin headers LED functionality
Dual RP-SMA Antenna Connector
Ordered independently of
development kit for use in your
implementation
No JTAG interface
LED array
Dual RP-SMA Antenna Connector
Ordered independently of either
development or integration kit for
use in your implementation.
A b o u t t h e E m b e d d e d M o d u l e
Figure
1 3
