S w i t c h e s

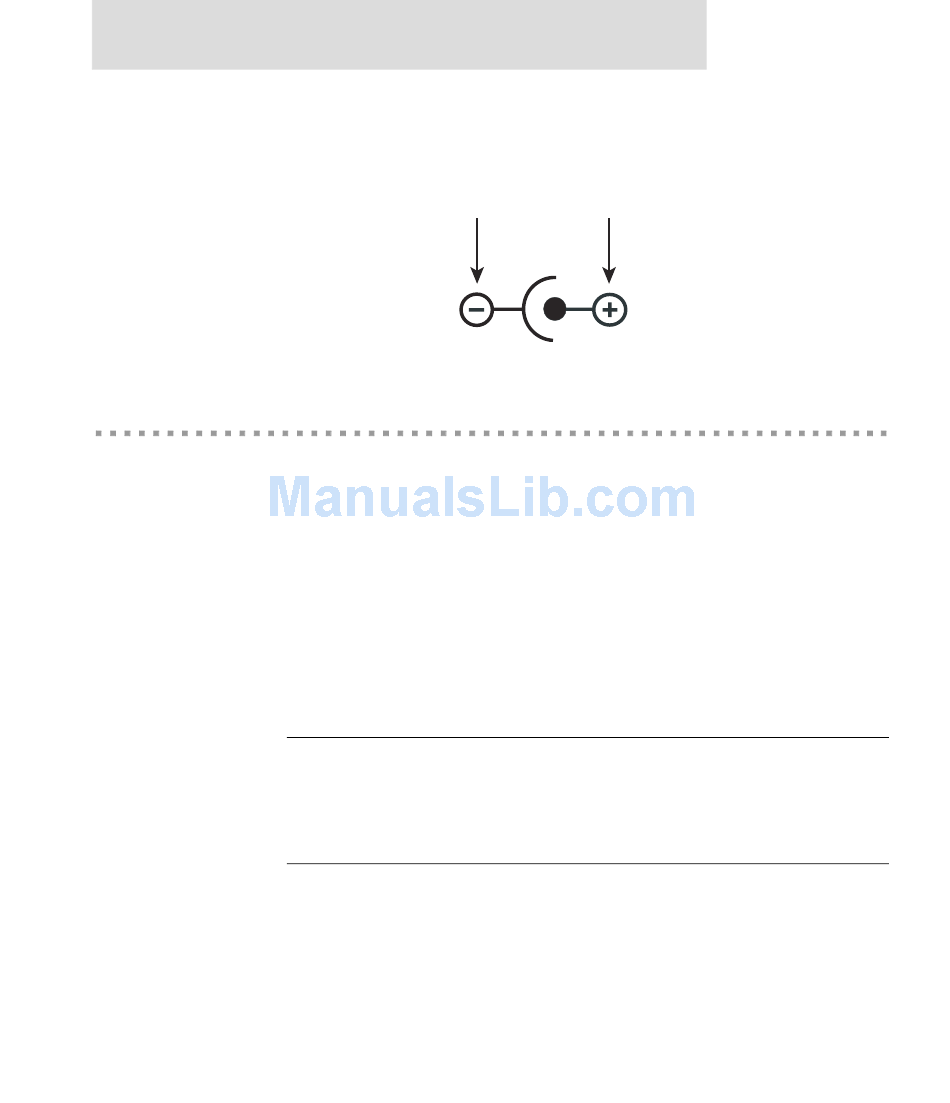

The following figure schematically represents the polarity of the power jack
Power Jack Polarity Schematic .

Switches

The development board provides the following switches:
Reset Switch (SW5)
This push button switch is labeled SW5. Pressing it sets the module's /RST line low,
holding the module in a hard reset until the switch is released.
Ã
3 0
D i g i C o n n e c t E M & W i - E M H a r d w a r e R e f e r e n c e
Reset Switch (SW5)
Serial/GPIO Switch Bank 3 (SW3) and Switch Bank 4 (SW4)
GPIO Switch Bank 1 (SW1) and 2 (SW2)
This is a "hard" reset using the /RST pin on the main connector, not a "soft" reset.
Note:
The reset button on the embedded module performs a "soft" reset (see also "Main
Connector (P8)" on page 29).
Ground
+9 to +30 VDC
