Summary of Contents for Digi Edgeport/1i

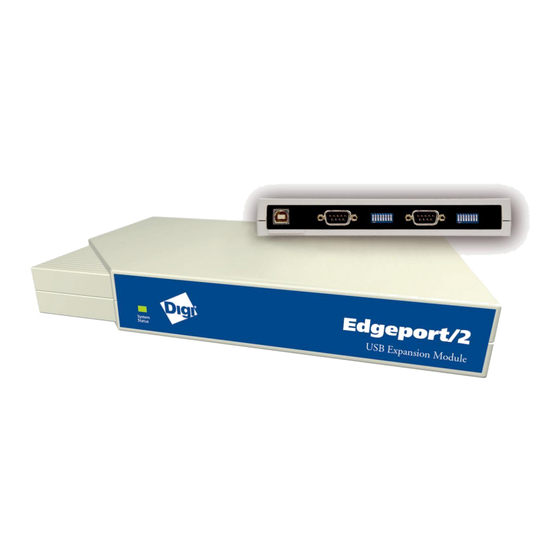

- Page 1 Edgeport ® USB EXPANSION MODULES INDUSTRIAL Installation Guide Models: Edgeport/1i Edgeport/2i Edgeport/2s MEI Edgeport/4s MEI Edgeport/4s DC Isolated Edgeport/8s MEI www.digi.com...
-
Page 2: Table Of Contents
Table of Contents Table of Contents ....................2 Edgeport/1i ......................1 Edgeport/2i ......................2 Edgeport/2s MEI, Edgeport/4s MEI,Edgeport/4s Isolated, Edgeport/8s MEI ...4 Edgeport Driver Installation ................6 Interpreting the System Status Light ..............6 Mounting Diagrams ...................7 The Edgeport Utility Program ................8 Understanding Hubs..................14 Regulatory & Other Information ..............15... -
Page 3: Edgeport/1I
Plug the Type A (flat) end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi International Hubport . Plug the Type B (square) end of the USB cable into the Edgeport. -
Page 4: Table Of Contents
Plug the Type A (flat) end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi International Hubport. Plug the Type B (square) end of the USB cable into the Edgeport. - Page 5 4. set to OFF documentation section site 5. set to ON 5. ---------- www.digi.com/support. If the drivers are not already installed, go 6. set to ON 6. ---------- 7. not used 7. not used to "Edgeport Driver Installation‖ starting on page 6.
-
Page 6: Edgeport/2S Mei, Edgeport/4S Mei,Edgeport/4S Isolated, Edgeport/8S Mei
Plug the Type A (flat) end of the USB cable into the USB port located in the back of your PC or into an available USB port on a standard hub or into a Digi International Hubport. Plug the Type B (square) end of the USB cable into the Edgeport. - Page 7 DB9 RS-232 Pin Assignment 1 DCD 6 DSR data carrier detect data set ready 2 RD 7 RTS receive data request to send 3 TD 8 CTS transmit data clear to send 4 DTR 9 ...
-
Page 8: Edgeport Driver Installation
Note: You must be logged into an account with administrator privileges before proceeding. Note: Please go to www.digi.com to download software for older Operating Systems. 1. Connect the USB cable. (Refer to the Table of Contents to locate the cabling instructions for your specific Edgeport model.) If your computer is connected to the internet, the latest... -
Page 9: Mounting Diagrams
Mounting Diagrams For all Edgeports except the Edgeport/1i Rack Mount Kit* Under-Shelf Mounting Bracket* *Nuts, bolts, and screws are not included. Edgeport Industrial Installation Guide (90000409 Rev. J) – Page 7... -
Page 10: The Edgeport Utility Program
The Edgeport configuration utility program (edgeport.exe) allows you to manage the serial ports of your Edgeport product. Note that with Windows NT you must have administrative privileges in order to change the COM port settings. For more information, see the Support section at www.digi.com. General Tab The General tab in this utility allows you to do the following: Information - Check the manufacturing information pertaining to your device. - Page 11 Configure - Reassign the physical port on your device to any available Windows COM port number from 1 to 255 and give your device a user friendly Device Name. This capability is particularly helpful if you have more than one device. Port Flags - Configure performance options and special functionality on a per-port basis.
- Page 12 Low Latency: (930 based Edgeport only) Normally the UART will interrupt when the receiver has been idle for 4 character times. (For example 4ms at 9600) As long as data is being received the UART will continue to buffer them until its internal FIFO is full (~56 bytes).
- Page 13 Test Ports - Perform a confidence test on the internal workings of the serial ports. Power Management – Turn on and off the power for Hubports with USB PlusPower ports Edgeport Industrial Installation Guide (90000409 Rev. J) – Page 11...
- Page 14 Port Status – Provide the status of a selected (highlighted) serial port. The Poll Interval is the number of seconds between updates of this window. This is also the number of seconds between each entry in the log file. To create a log file, click the Start Logging button and enter a filename for the log file. This file will contain all of the information displayed in the Port Status window until the Stop Logging button is clicked.
- Page 15 Uninstall the drivers. Enable Event Logging – Place event messages in system event log. Configure how COM ports will be assigned. The driver supports COM port number assignment in two ways: 1. Assign COM ports based on converter serial number. This is the default setting.
-
Page 16: Understanding Hubs
Understanding Hubs Hubs, critical components in the USB architecture, are wiring concentrators that enable the attachment of multiple devices, thus converting a single attachment point into multiple attachment points. USB architecture allows a cascaded multiple hub configuration with certain power limitations (explained later in this section). -
Page 17: Regulatory & Other Information
Regulatory & Other Information © 2006 Digi, Digi International, the Digi logo, the installed and used in accordance with the Digi Connectware logo, Edgeport, and Hubport instructions, may cause harmful interference to are either trademarks or registered trademarks of radio communications. However, there is no Digi International, Inc. - Page 18 EN55022 Product Name(s): Edgeport/1i Test Specification Requirement Model Number(s): 301-1001-31 EN55022 Product Name(s): Edgeport/2i — Radiated Emissions Class B Model Number(s): 301-1000-12 Product Name: Edgeport/2s MEI Conducted CISPR 22 Class B Emissions Model Number(s): 301-1000-92 Product Name: Edgeport/4s MEI...
- Page 19 China RoHS statement: The Table of Toxic and Hazardous Substances/Elements and their Content shall apply to any product covered by this manual and labeled with the following symbol: The Table of Toxic and Hazardous Substances/Elements and their Content as required by China’s Management Methods for the Control of Pollution from Electronic Information Products Toxic and Hazardous Substances or Elements (有毒有害物质或元素) Hexavalent...
- Page 20 Digi International 11001 Bren Road East Minnetonka, MN 55343 digi.info@digi.com www.digi.com Corporate Headquarters: 952-912-3444 877-912-3444 Fax: 952-912-4952 Digi Europe: +49-231-9747-0 Digi Hong Kong: +852-2833-1008 Digi North America: 877-912-3444...
