Wiring Connections - Dynojet Power Commander III Installation Instructions

PCIII connector
Stock connector
i735-411 www.powercommander.com
Unplug
Zip tie
Stock connector

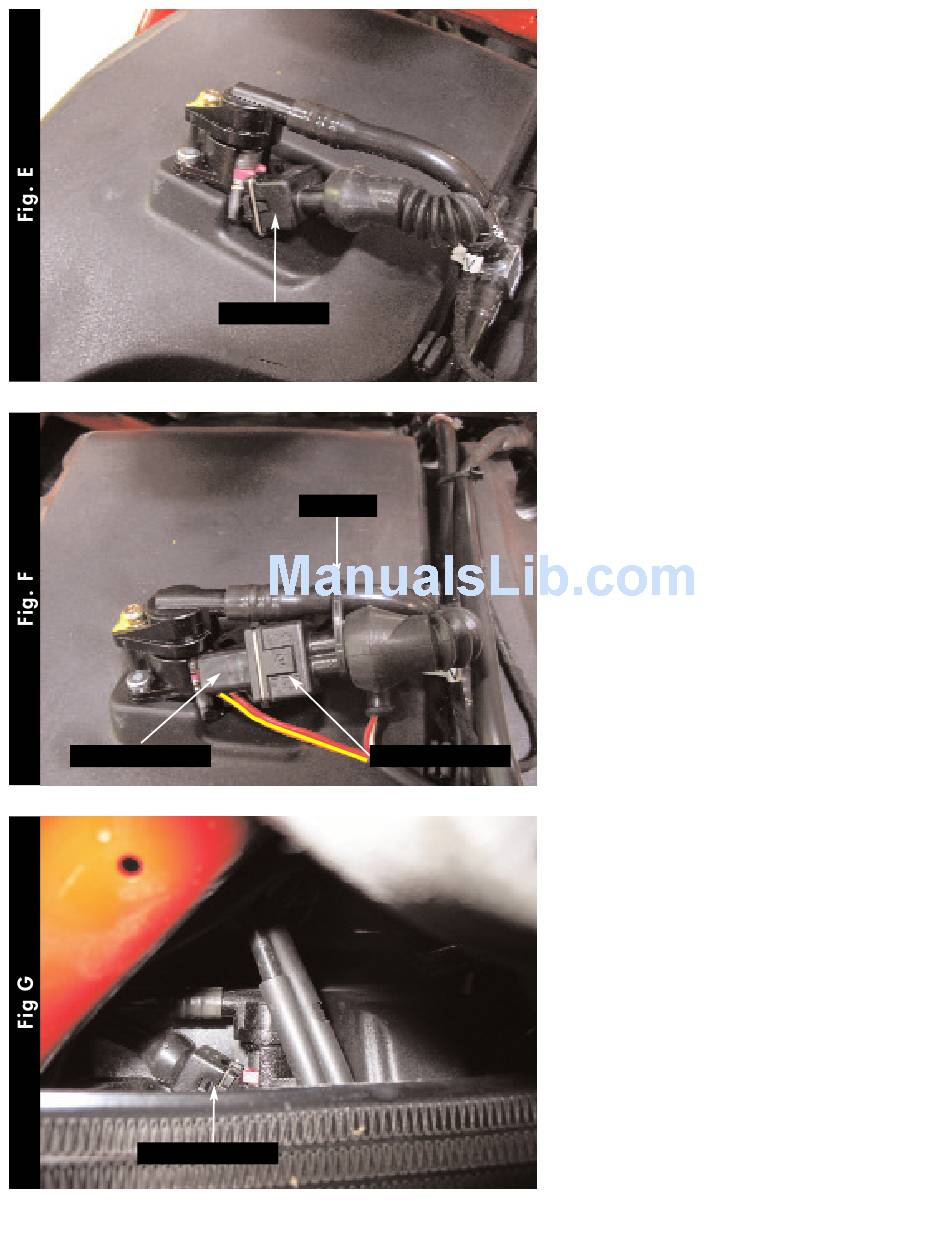

8 Unplug the stock wiring harness from
the rear injector (Fig. E)
This injector is located on top of the
air box.
To remove the connector you must
first remove the spring clip.
best done with a pick or small screw-
driver .
9 Plug the YELLOW colored wires
from the PCIII in-line of the stock
wiring harness and rear injector
(Fig. F).
Make sure to reinstall the spring clip
on the stock connector.
10 Use 1 of the small supplied zip ties to
secure this connection to the fuel line.
Make this connection as compact as
possible.
11 Unplug the stock wiring harness from
the front injector (Fig G).
This connection is very difficult to
access. It is best to get to thru the
front of the bike directly above the
radiator .
Figure G was taken from the front of
the bike inside the right hand fairing
and above the radiator .
2008 Ducati 848 - PCIII USB - 3
