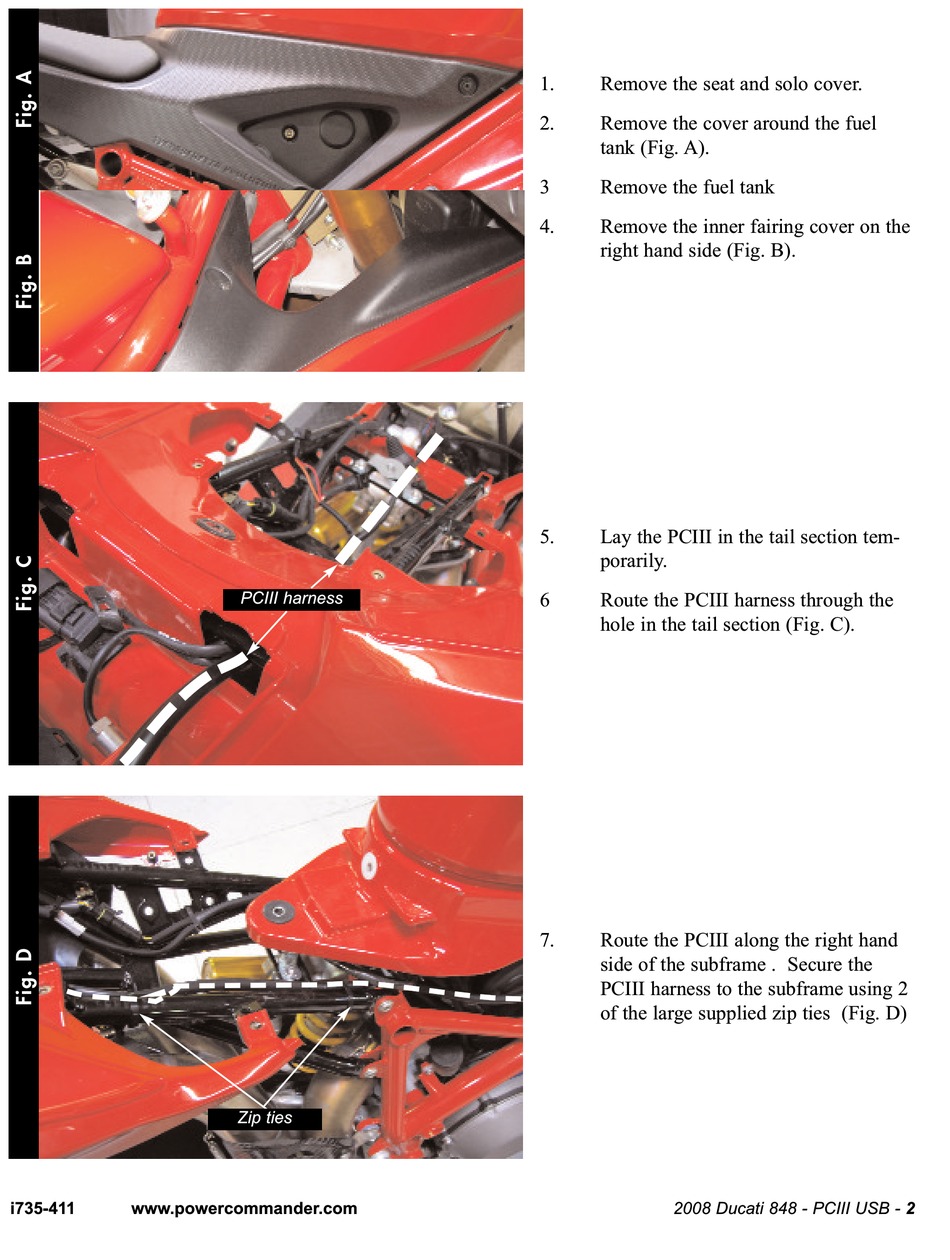

i735-411
www.powercommander.com
PCIII harness
Zip ties
1.
Remove the seat and solo cover.
2.
Remove the cover around the fuel
tank (Fig. A).
3
Remove the fuel tank
4.
Remove the inner fairing cover on the
right hand side (Fig. B).
5.
Lay the PCIII in the tail section tem-
porarily.
6
Route the PCIII harness through the
hole in the tail section (Fig. C).
7.
Route the PCIII along the right hand
side of the subframe .
PCIII harness to the subframe using 2
of the large supplied zip ties
2008 Ducati 848 - PCIII USB - 2
Secure the
(Fig. D)
