13.On the signal generator: Press Channel B to On and then back to Off again. This initializes the
signal generator to the external power meter.
14.Press Return > Zero Sensor
A diagnostic dialog box is displayed each time an external power meter is being used and the
Zero Sensor or Calibrate Sensor softkey is pressed (refer to
Verify the power sensor is connected to the 50 MHz reference of the power meter.
Figure 4-10
15.Press Done
The Running Calibration(s) bar is displayed: Zeroing Sensor Please wait....
16.After Running Calibration(s) bar disappears: Press Calibrate Sensor
Diagnostic Dialog box is displayed that prompts for verifying the connection of the power
sensor to the power meter 50 MHz reference (refer to
Figure 4-11
Keysight EXG and MXG X-Series Signal Generators User's Guide

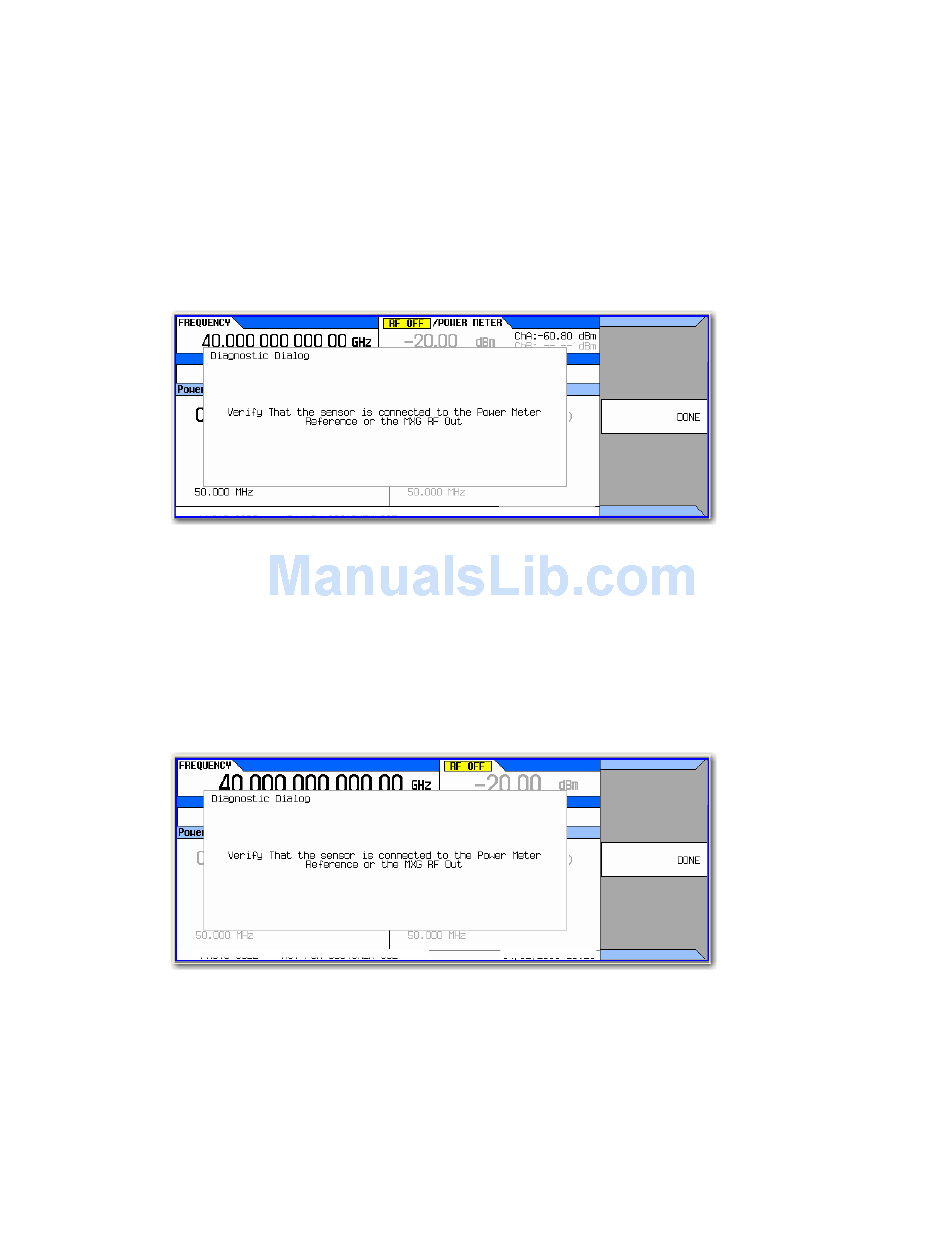

Diagnostic Dialog Box for Channel B
Diagnostic Dialog Box for Calibration
Optimize Performance
Using the Dual Power Meter Display
Figure 4-10 on page
Figure 4-11 on page 75).
75).
For details on
each key, use key
help as described
page 40
on .
For details on
each key, use key
help as described
page 40
on .
75
