Whenever a change is made to a setting while the two–tone generator is
operating (Two Tone Off On set to On), you must apply the change by
pressing the Apply Settings softkey before the updated waveform will be
generated. When you apply a change, the baseband generator creates a
two–tone waveform using the new settings and replaces the existing
waveform in ARB memory.

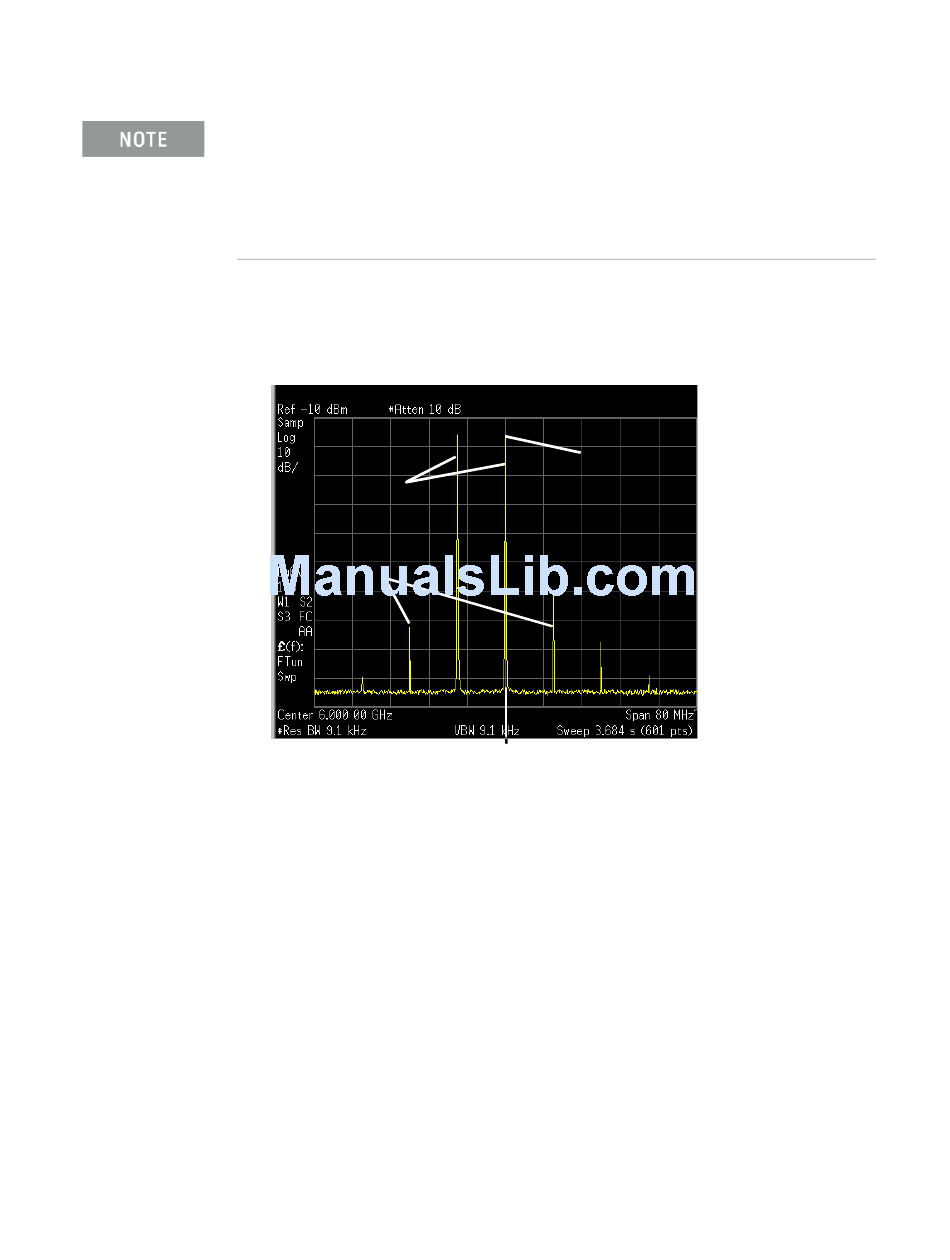

3. On the spectrum analyzer, temporarily turn off waveform averaging to refresh your view more
quickly. You should now see a left–aligned two–tone waveform that is similar to the one shown
in Figure 17-4.
Figure 17-4
For details on each key, use key help as described on
Keysight EXG and MXG X-Series Signal Generators User's Guide
Two–Tone
Channels
Intermodulation
Distortion
page 40
Carrier
.
Frequency
Multitone and Two-Tone Waveforms (Option 430)
Using Two–Tone Modulation
Upper Tone
Aligned with
Carrier
Frequency
417
