14 MULTI-FUNCTION CARD

The optional Multi-Function Card (MFC) can be configured
to act as an Analog Output, Discrete Output, or Discrete
Input. Up to two MFCs may be installed at one time. MFCs
are immune to RFI/EMI disturbances.
Table 19: Multi-Function Card Cross-References
Information IOM Section
Analog Output
3.5 Analog Output
Specifications
7.8 Multi-Function Card
Electronic
Connections
DI)
Configuration 10.3.14 Card 1 (or Card 2)
Status Table 12: Auxiliary Card Status
Multi-
Function
Card

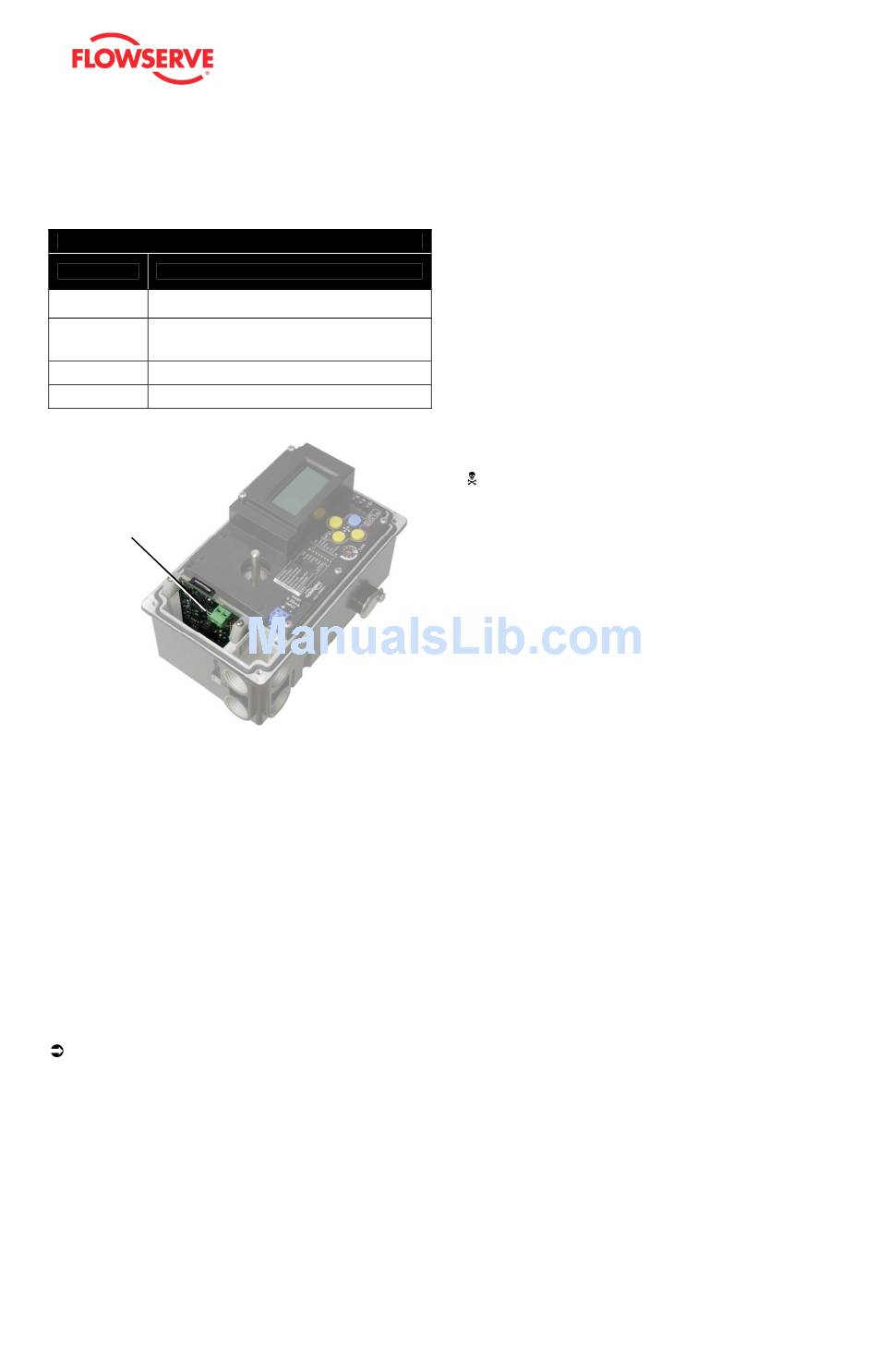

Figure 21: Multi-Function Card

14.1 Analog Output (AO)

Configure the MFC as an Analog Output device to produce
a 4-20 mA signal that corresponds to the position of the
valve.
Output follows actual position of valve, including all failure
modes of positioner except loss of power. An output of <
1.0 mA is transmitted when the positioner loses power.
Calibration of the analog output signal is performed using
the display menu, a HART handheld communicator, or the
ValveSight DTM .
The MFC configured as an AO does not interfere with
positioner operation.
NOTE: The AO signal corresponds with the Signal At
Closed configuration switch setting.
with a 4 mA signal, the AO will show a 4 mA signal when
closed. If the valve closes with a 20 mA signal, the AO will
show a 20 mA signal when closed.

14.2 Discrete Output (DO)

Use the Discrete Output function of the MFC to indicate a
variety of conditions such as alarms, warnings, position
limits, etc. The current is normally high, and drops low
when one of the pre-configured states occurs.
Configuration of the discrete output signal is done using the
ValveSight DTM.
© Flowserve Corporation
User Instructions - Logix® 520MD+ Series Digital Positioner
(AO, DO,
If the valve closes
35
The MFC configured as a DO does not interfere with
positioner operation.
The MFC DO complies with DIN 19234 standard.
specific current limits, see Table 12: Auxiliary Card Status.

14.3 Discrete Input (DI)

Use the Discrete Input function of the MFC to signal the
positioner to begin a partial stroke test, or move to a
predefined position as long as the signal remains.
Supply a low voltage (or no voltage) to indicate a normal
state. Raise the voltage to indicate the tripped state.
Configuration of the discrete output signal is done using the
display menu, a HART handheld Communicator, or the
ValveSight DTM .
For specific voltage limits, see Table 12: Auxiliary Card
Status.
WARNING: During the use of the Discrete Input
function, the valve may stroke unexpectedly. Follow
internal procedures, ensuring
movement of the valve (performing a PST or moving to a
set-point) is allowed. Notify proper personnel that the valve
will stroke, and make sure the valve is properly isolated if
required.
