3.1 Overview

3 3
VLT 2800 frequency converters allow side-by-side instal-
lation on a wall in any position as the units do not require
ventilation on the side. Because of the need for cooling,
there must be 100 mm free air passage above and below
the frequency converter.
All units with enclosure IP20 must be integrated in
cabinets and panels. IP20 is not suitable for remote
mounting. In some countries, for example in the USA, units
with enclosure NEMA 1 are approved for remote
mounting.
NOTICE
With the IP21 solution, all units require a minimum of
100 mm air on each side. This means that side-by-side
mounting is NOT allowed.

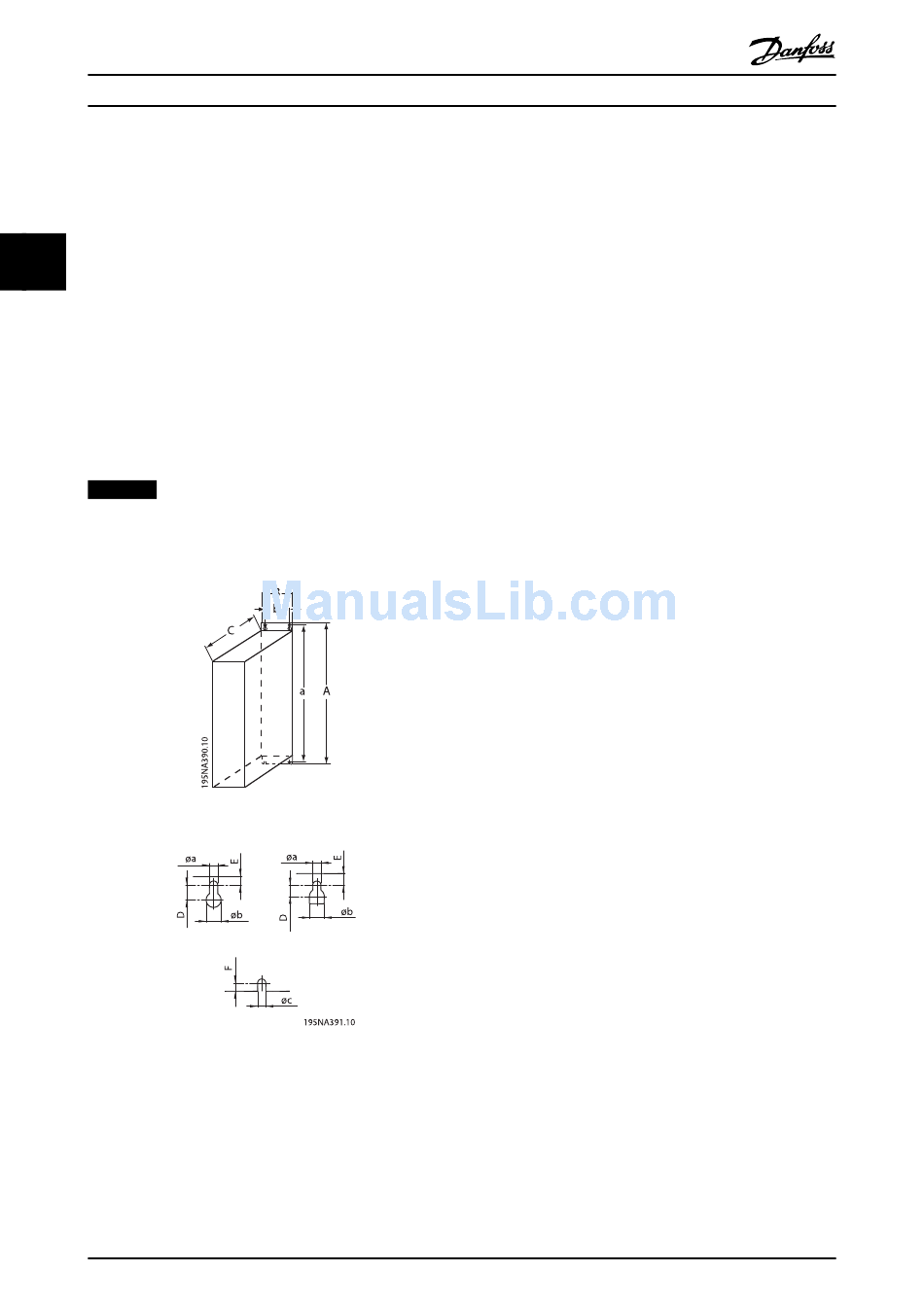

Illustration 3.1 Dimensions
Illustration 3.2 Mounting Holes
