3.5 EMC Filter for Long Motor Cables

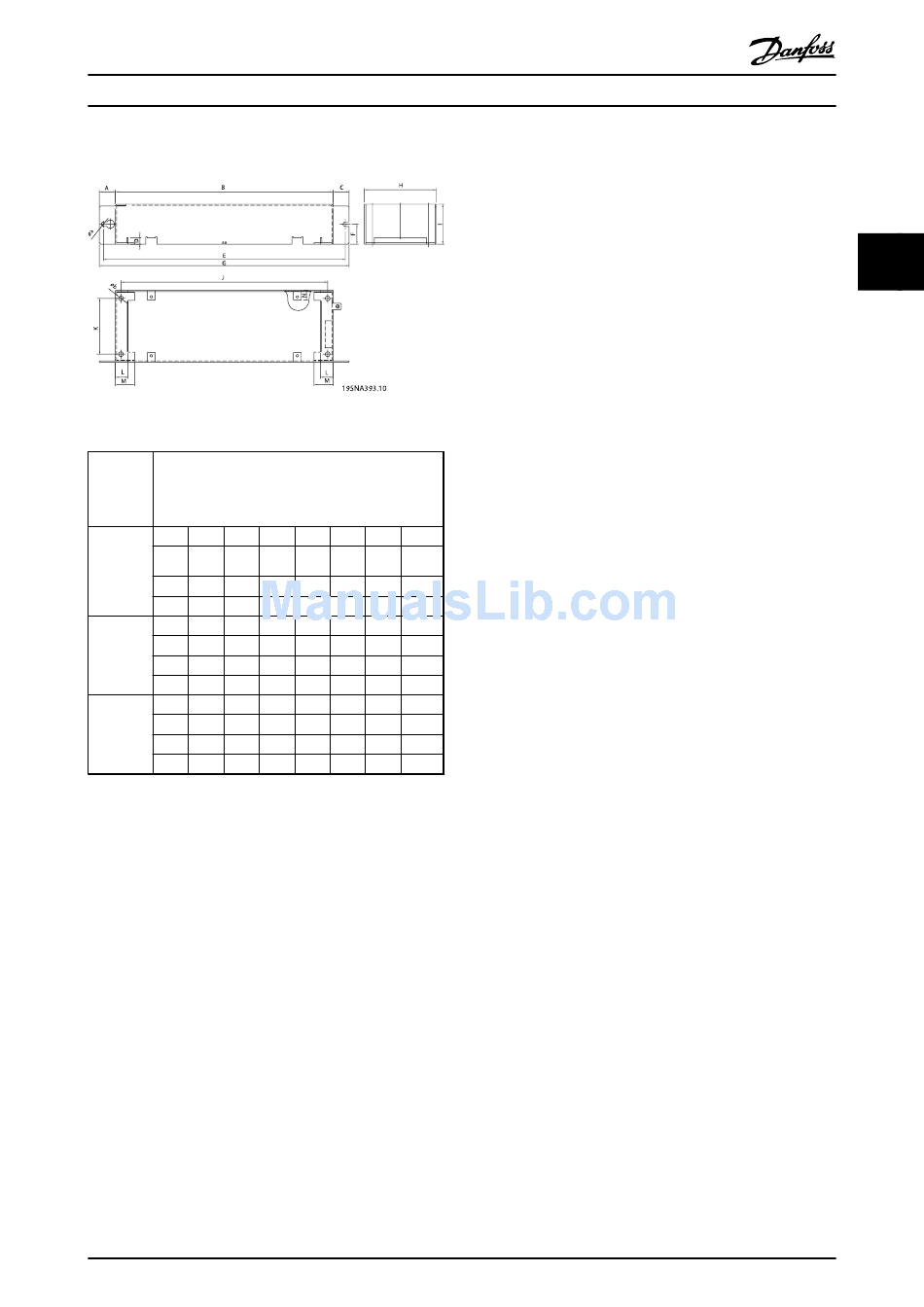

Illustration 3.9 Filter Dimensions
Filter
A B C
20 204 20
192H4719
H I øb
75 45 6
A B C
192H4720
20 273 20
H I øb
90 50 6
192H4893 A B C
20 273 20
H I øb
140 50 6
Table 3.3 Filter Dimensions
MG28M202
Quick Guide
Dimensions
øa D E F G
5.5 8 234 27.5 244
J K L M N
190 60 16 24 12
øa D E F G
5.5 8 303 25 313
J K L M N
257 70 16 24 12
øa D E F G
5.5 8 303 25 313
J K L M N
257 120 16 24 12
