Electrical Installation

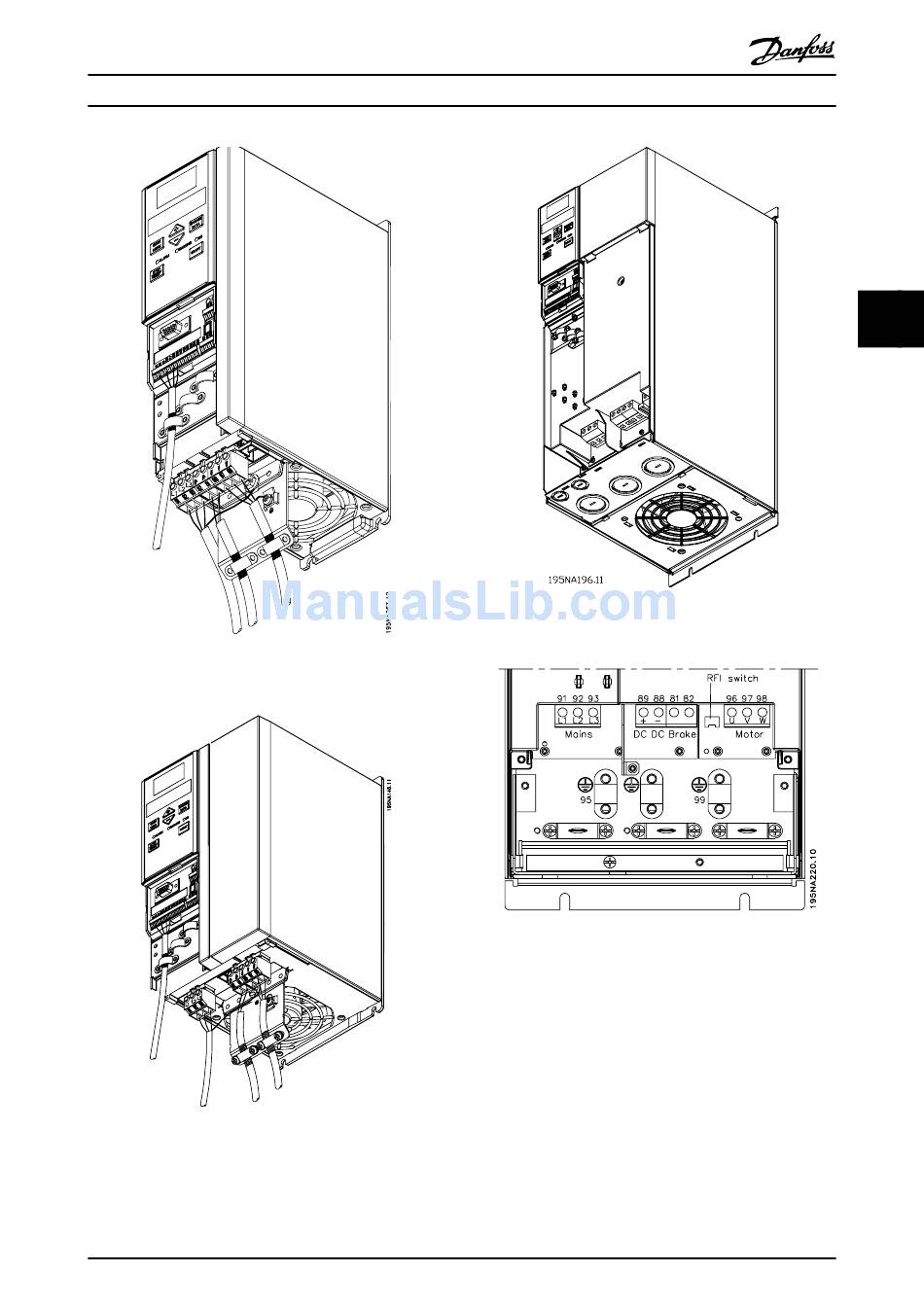

Illustration 4.3 VLT 2822, 200-240 V
VLT 2822-2840, 380-480 V
Illustration 4.4 VLT 2840, 200-240 V
VLT 2822, 200-240 V - PD2
VLT 2855-2875, 380-480 V
MG28M202
Quick Guide
Illustration 4.5 VLT 2840, 200-240 V, PD2
VLT 2880-2882, 380-480 V
Illustration 4.6 Electrical Connections VLT 2880-2882 and 2840
PD2
Fit screened/armoured cable from the motor to the motor
terminals of the frequency converter, i.e. U, V, W. The
screen ends in a screen connector.
