Step 3 - Connect Input Source

Each Datapath system is custom built. The number and type of inputs will differ from system to system.
Contained within the documentation pack are PCIe card product leaflets which give details on how the cards are
connected.

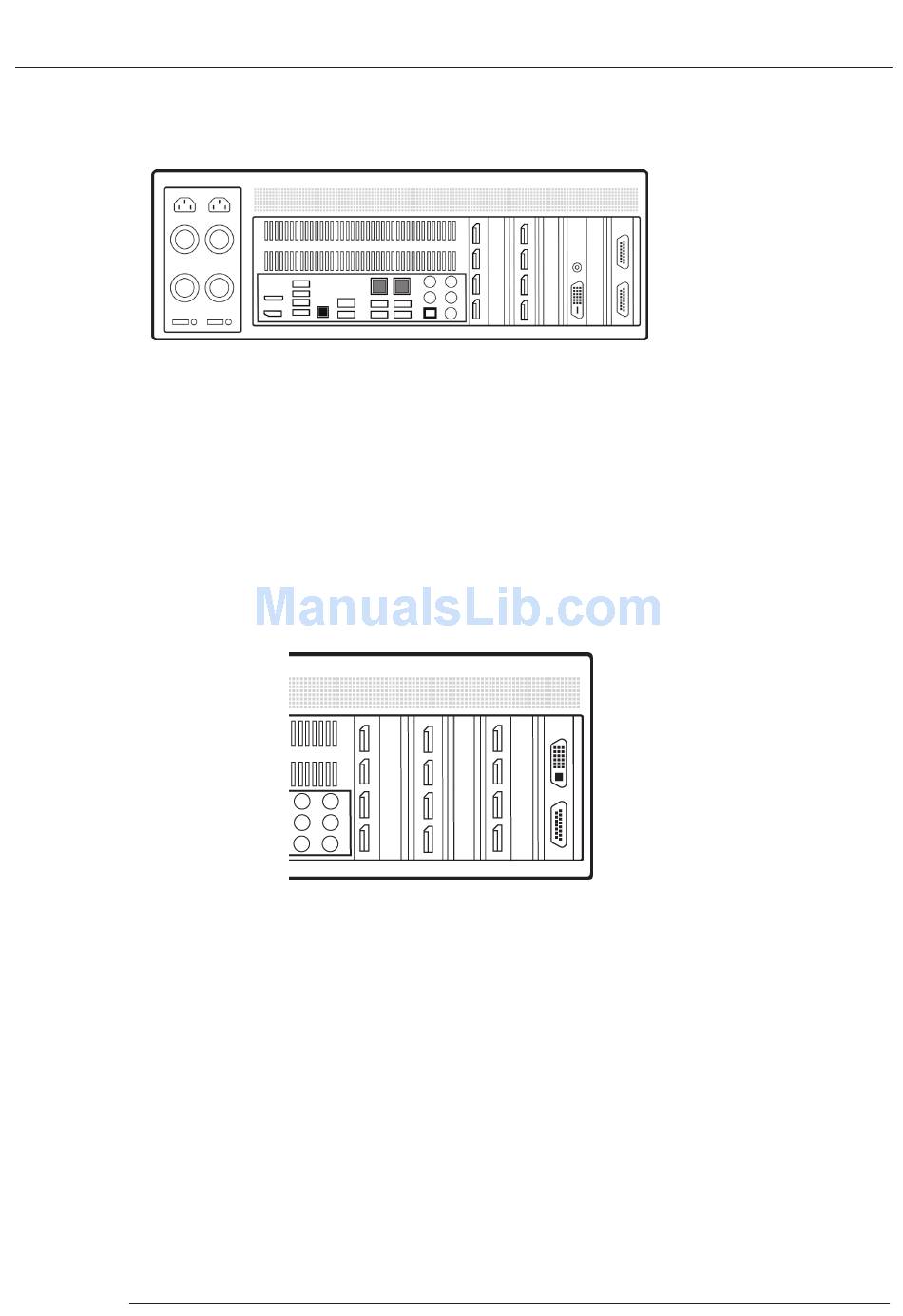

The I/O panel on your system may differ from the above illustration depending on which motherboard option you
have purchased. Refer to the motherboard documentation for more details.

Step 4 - Connect an Output Source

To enable you to complete the initial setup of the system displays must be connected to the first and second output as
shown below.
Quick Start Guide
1
2
7
Quick Start Guide
