Chapter 5 - Cabling

This Chapter will cover:
Connecting keyboard and mouse
•

Connecting to a network

•
Connecting input sources
•
Connecting a control screen
•
Connecting monitors
•
Connecting power cables
•

5.1 Connecting the Keyboard and Mouse

The keyboard and mouse supplied with your system both have a USB interface. Identify vacant USB ports on the
chassis and plug them in.
The location of the USB ports are identified
5.2 Connecting to a Network
The optional WallControl 10 software enables the user to operate and manage the video wall display remotely, via a

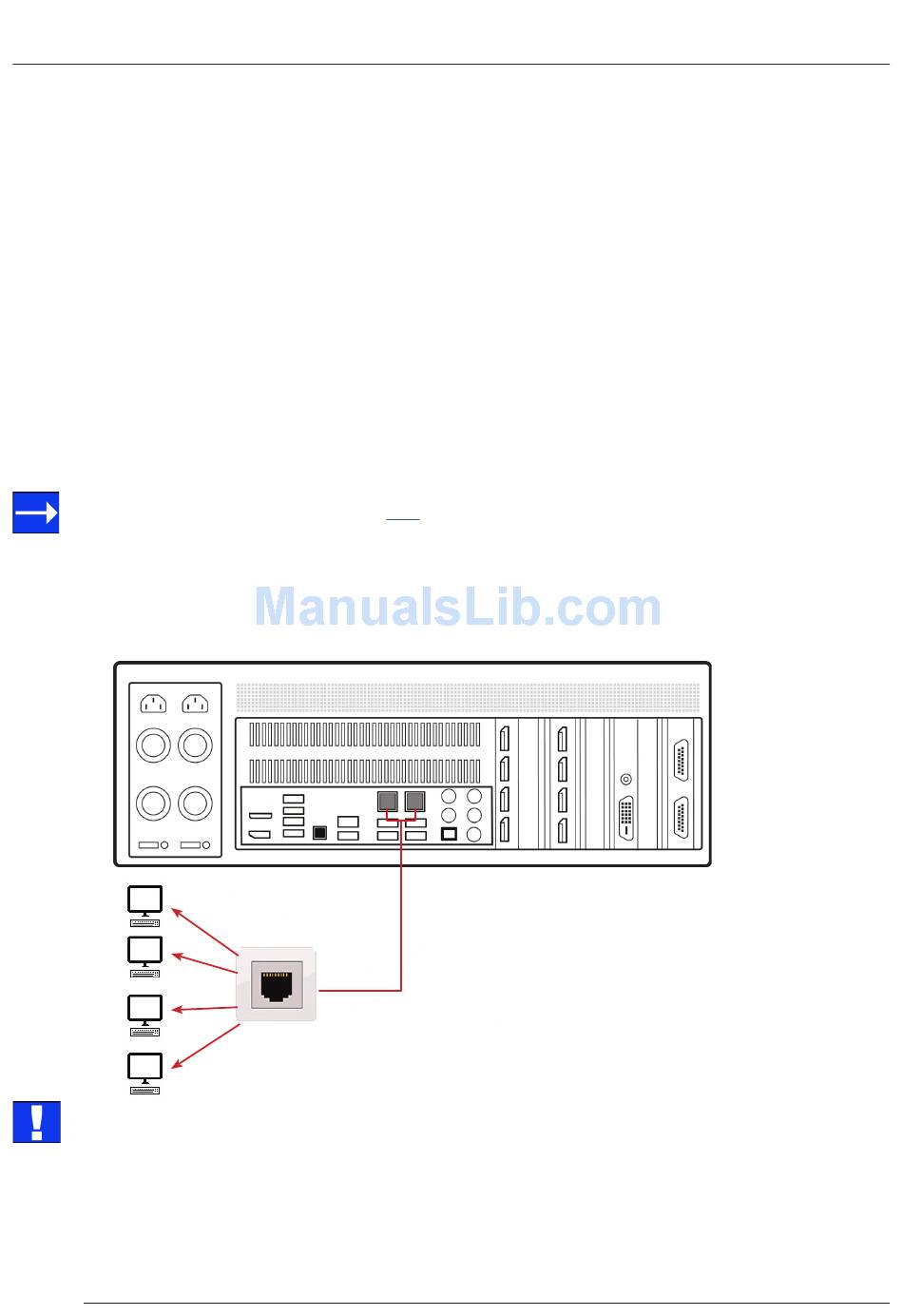

network. The VSN400 has two Ethernet ports, plug in your network cable (not supplied) to a port and connect the wall
controller to the LAN, as shown below:
5.2.1 Network Security
It should be noted that network ports have a potential vulnerability. If your system is working in a secure environment
you probably don't need to worry about unauthorised access to the LAN port. If your system is on a network that is
generally accessible, you will probably want to restrict access to the ports.
Cabling
here
