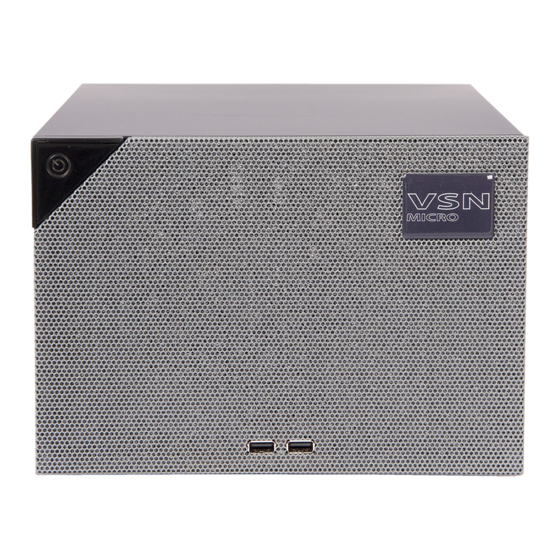

Quick Start Guide
VSNMicro 600
Engineering the world's best visual solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSN Series and is the answer not in the manual?

Questions and answers

Related Manuals for Datapath VSN Series

Summary of Contents for Datapath VSN Series

  • Page 1 Quick Start Guide VSNMicro 600 Engineering the world’s best visual solutions...
  • Page 2 VSNMicro 600 Quick Start Guide Each Datapath VSNMicro 600 is custom built to Thank you for purchasing the Datapath order therefore the components, number and VSNMicro 600 wall controller. The aim of type of inputs will differ from system to system.

  • Page 3: Step 1 Keyboard And Mouse

    VSNMicro 600 Quick Start Guide STEP 1 KEYBOARD AND MOUSE Connect Keyboard and Mouse to USB Ports. USB Ports are located on both the front and rear panels of the system. It may be more convenient to use the USB ports on the front for easy access. 6 x USB 3.0 ports on the rear panel 2 x USB 2.0 ports on the front panel STEP 2 CONNECT TO A NETWORK (OPTIONAL)

  • Page 4: Step 3 Connect Input Source

    VSNMicro 600 Quick Start Guide STEP 3 CONNECT INPUT SOURCE As each VSNMicro 600 is custom built, the number and type of video inputs will differ from system to system. If you have purchased an VSNMicro 600 with video inputs, the input connectors are located on the rear panel as shown below. The printed diagram shipped with the VSNMicro 600 shows the types of input and connectors built into your specific system.
  • Page 5 VSNMicro 600 Quick Start Guide STEP 4 CONNECTING A CONTROL SCREEN Your VSNMicro 600 is factory configured to use a control screen connected to the system internal graphics device. Connect your control screen to one of the three connectors on the motherboard panel on the rear of the VSNMicro 600. A control screen is initially required to set up the system including the operating system (Windows®...

  • Page 6: Step 5 Powering Up The System

    Power Supply Modules see the PDF User Guide which can be found on the Documentation Media. Never use force when inserting the Power Supply Modules as this can cause damage not covered under the Datapath warranty. Ensure Power Supply Modules are correctly fitted.
  • Page 7 VSNMicro 600 Quick Start Guide Connect power (2) cables (single cable for ATX) then plug into and turn on the mains supply. Press the on/off button on the front of the VSNMicro 600 (3) to power up. There will be a short delay followed by the sound of the internal fan. The fan noise will subside when the system has fully booted.

  • Page 8: Step 6 Windows 10 Setup

    VSNMicro 600 Quick Start Guide STEP 6 WINDOWS 10 SETUP Once the system has been built and configured in our factory the operating system is resealed, therefore when switching the system on for the first time, the operating system setup commences. You will be prompted to enter information to set up the Windows 10 operating system.
  • Page 9 VSNMicro 600 Quick Start Guide It is recommended that you carefully read the instructions on each page of the wizard. To commence your wall configuration, click on Start Wizard. Select the type of displays being used on your wall: Displays With Bezels – Monitors, TVs and DLP Cubes Overlapable Displays –...
  • Page 10 VSNMicro 600 Quick Start Guide What Type of Displays do you Have? Use the Manufacturer and Model dropdown lists to select the displays you are using for your wall. If the wall consists of different displays, select each one in turn to configure the type of display. The DDCT has an extensive database of displays, however if your display is not contained in the list, you can input the details manually by selecting Create Custom Display.
  • Page 11 VSNMicro 600 Quick Start Guide Once the layout has been created and the type(s) of displays configured click on Add Displays & Continue and the following dialogue is displayed: At this stage of the set up you can choose to create another independent display group from the same system, this would be considered if one machine will be used to drive a number of separate video walls.
  • Page 12 VSNMicro 600. If your VSNMicro 600 is connected to a printer, you can print a copy of the wiring diagram using Print a Wiring Diagram. Note: The Datapath Diagnostic Suite must be installed to print a wiring diagram. The suite can be downloaded from the Datapath website...
  • Page 13 VSNMicro 600 Quick Start Guide To manually select the outputs right click on the display group and select Edit, you can then select each individual display and allocate your preferred output. Right click on a selected display to reveal the list of outputs available: When all outputs have been allocated by either Recommended or Custom click on Finish.
  • Page 14 VSNMicro 600 Quick Start Guide STEP 8 WALLCONTROL 10 Before opening the WallControl 10 Client interface you may need to start the WallControl 10 Server should it not start automatically. The Server icon is displayed in the System Tray. Server icon If the Server fails to start automatically, start the Server by clicking on it in the All Programs menu.
  • Page 15 VSNMicro 600 Quick Start Guide Click on the wall representation to open the display wall tab (2). Display Wall Tab Sources Display Wall Representation When opened, the display wall tab shows a live representation of the physical wall and the sources available to display on it. To place a source on the video wall, simply click on the required source in the Sources Tab and drag it onto a preferred position on the display wall representation.
  • Page 16 VSNMicro 600 Quick Start Guide The WallControl 10 - Security Administration Client allows Administrators to assign specific users to roles on a wall by wall basis. For example, a user can be assigned a role allowing unrestricted access on one wall but assigned a role on another wall which only allows the opening of pre-determined layouts.
  • Page 17 VSNMicro 600 Quick Start Guide STEP 9 CREATE A RESTORE USB FLASH DRIVE To create your Restore USB Flash Drive you will need a USB memory stick with a minimum capacity of 16GB. It is recommended that once your restore flash drive has been created, it is stored in a safe place accessible to personnel who may be required to restore the system.
  • Page 18 VSNMicro 600 Quick Start Guide Click on the Create Restore Media icon then insert the USB flash drive into a vacant USB slot (min capacity 16GB). It should be noted that any data currently stored on the USB Flash Drive will be deleted permanently during this process.

  • Page 19: Copyright Statement

    COPYRIGHT STATEMENT © Datapath Ltd., England, 2020 Datapath Limited claims copyright on this documentation. No part of this documentation may be reproduced, released, disclosed, stored in any electronic format, or used in whole or in part for any purpose other than stated herein without the express permission of Datapath Limited.
  • Page 20 Datapath UK and Corporate Headquarters Bemrose House, Bemrose Park, Wayzgoose Drive, Derby, DE21 6XQ, United Kingdom +44 (0) 1332 294 441 sales-uk@datapath.co.uk Datapath North America 2490 General Armistead Avenue, Suite 102, Norristown, PA 19403, USA +1 484 679 1553 sales-us@datapath.co.uk...
