Datapath VSN450 Quick Start Manual

Vsn400 series of wall controllers
Hide thumbs Also See for VSN450:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual
Wall Controller
Quick Start Guide
VSN400 Series of Wall Controllers
Models:
VSN450
VSN470

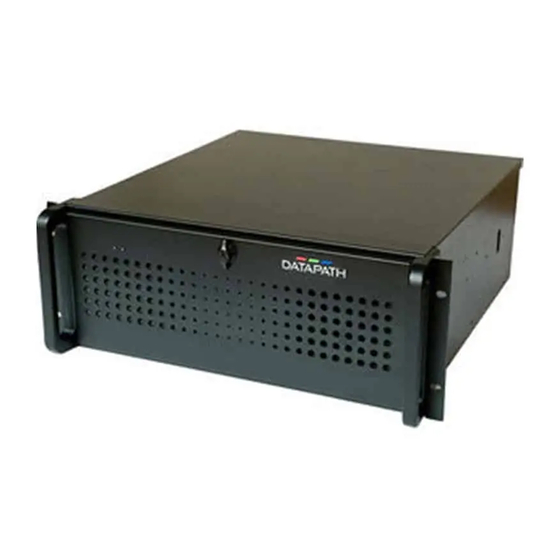

Thank you for purchasing the Datapath VSN Wall Controller. The aim of this
document is to quickly guide you through the process of initial setup. For detailed
instructions consult the system User Guide which can be found on the Recovery
Media.
www.datapath.co.uk | sales@datapath.co.uk | +44 (0) 1332 294441

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSN450 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Datapath VSN450

Summary of Contents for Datapath VSN450

  • Page 1 VSN450 VSN470 Thank you for purchasing the Datapath VSN Wall Controller. The aim of this document is to quickly guide you through the process of initial setup. For detailed instructions consult the system User Guide which can be found on the Recovery Media.

  • Page 2: Step 2 Keyboard And Mouse

    Chassis Key • MAC Address Labels Each Datapath system is custom built therefore the number and type of input and output cards will differ from system to system. Accompanying this Quick Start Guide are PCIe card product leaflets which give details on how the cards are installed and any accessories supplied with them.

  • Page 3: Step 3 Connect To A Network (Optional)

    STEP 3 CONNECT TO A NETWORK (OPTIONAL) Network Cable not supplied. STEP 4 CONNECT INPUT SOURCE Each Datapath system is custom built. The number and type of inputs will differ from system to system. Contained within the documentation pack are PCIe card product leaflets which give details on how the cards are connected.

  • Page 4: Step 5 Connect Control Screen (Optional) And Monitors

    STEP 5 CONNECT CONTROL SCREEN (OPTIONAL) AND MONITORS 3 x 2 Video Wall 4 x 2 Video Wall Control Screen Monitor 1 Monitor 2 Monitor 3 Monitor 4 Monitor 5 Monitor 6 Monitor 7 Monitor 8 Connect graphic outputs to monitors using DisplayPort cables, (not supplied).

  • Page 5: Step 6 Powering Up The System

    STEP 6 POWERING UP THE SYSTEM ATX System RPSU System Connect power cables then plug into a mains supply. Switch on the power supply units. Switch on the system. Page 5...
  • Page 6 STEP 7 WINDOWS 7 SETUP The Product key can be found inside the door of the controller. Computer Name: t is recommended that only Internet-standard characters are used in the computer name. The standard characters are the numbers 0 through to 9, upper and low- er-case letters from A through to Z and the hyphen character.

  • Page 7: Step 8 Activate Windows 7

    STEP 8 ACTIVATE WINDOWS 7 All Datapath wall controllers have pre-configured settings for the wall layout and screen resoluti TWIN tab: Start | Control Panel | Appearance and Personalization | Adjust screen resolution. Page 7...

  • Page 8: Step 9 Wallcontrol10 (Optional)

    STEP 9 WALLCONTROL10 (OPTIONAL) Before opening the Client interface you will need to start the Server by clicking on it in the Programs menu. The WallControl 10 Client will only detect servers that are running. Start | All Programs | WallControl 10 - Server When WallControl 10 is opened for the first time it is strongly recommended that you take a look through the help files prior to using the application.
  • Page 9 STEP 10 WALLCONTROL 10 (OPTIONAL) Indicates the server you are connected too. 2 A representation of the display wall associated with the server. Sources Tab - Displaying all the sources connected to the server for use on your display wall. 4 Layouts Tab - Use to save, recall and share display wall layout configurations.
  • Page 10 The WallControl 10 - Security Administration Client (Pro Version Only) The WallControl 10 - Security Administration Client allows Administrators to assign specific users to roles on a wall by wall basis. For example, a user can be assigned a role allowing unrestricted access on one wall but assigned a role on another wall which only allows the opening of pre-determined layouts.
  • Page 11 STEP 11 WALL CONTROL-RED/SQX (OPTIONAL) Start | All Programs | Wall Control | Wall Control-My Computer The Icons displayed in the application toolbar identify which type of source is available to each input Icons highlighted green indicate an active capture for that particular input.
  • Page 12 To open a video window click and drag an active capture into the Wall Control-red/ SQX application. Use the Help Menu for a comprehensive guide to the features of the application. Page 12...
  • Page 13 Whilst every effort is made to ensure that the information contained in this Quick Start Guide is correct, Datapath Limited make no representations or warranties with respect to the contents thereof, and do not accept liability for any errors or omis- sions.
  • Page 14 Datapath UK and Corporate Headquarters Bemrose House, Bemrose Park Wayzgoose Drive Derby, DE21 6XQ England +44 (0) 1332 294441 sales@datapath.co.uk Datapath North America 2550 Blvd of the Generals Suite 320 Norristown, PA 19403 +1 484 679 1553 sales@datapath.co.uk Datapath France +33 (1)3013 8934 sales-fr@datapath.co.uk...
