Limitations; Extension Connectors; Figure 16. Solder Bridges Settings To Enable The Touch Slider (Red = Closed, Green = Opened) - ST STM32L073Z-EVAL User Manual

UM1878
Solder
bridges
SB10
SB9

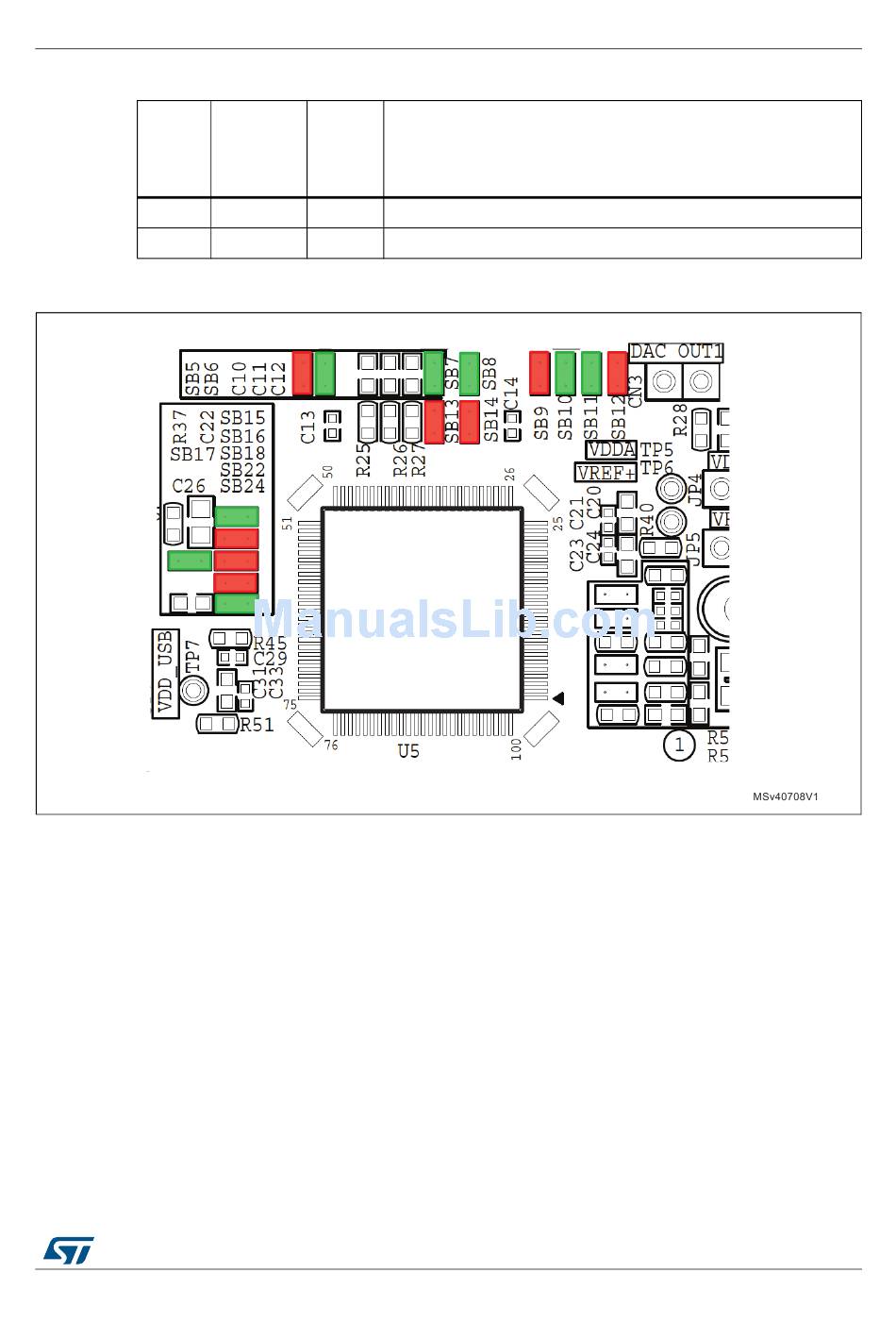

Figure 16. Solder bridges settings to enable the touch slider (red = closed, green = opened)

7.22.1

Limitations

Touch sensing slider is exclusive with LCD glass.
7.23

Extension connectors

Two 2.54 mm pitch headers CN4 and CN5 called "extension connectors" are intended to
connect an external board to the STM32L073Z-EVAL evaluation board.
Both connectors CN4 and CN5 give access to the GPIOs that are not accessible by the LCD
glass connectors.
In addition to GPIOs, CN4 and CN5 have the following supplies and signals:
GND, +3V3, D5V, RESET#, V
For more details regarding clock pins, refer to
Table 23. Touch sensing related solder bridges (continued)
Settings to
enable STM32
touch port
sensing
Close PA2
Open PA2
DD
Connects the charge capacitor to PA2.
Disconnects PA2 from track to LCD glass to avoid disturbances.
, Clocks pins (PC14, PC15, PH0, PH1).
Section 7.4: Clock
UM1878 Rev 2
Hardware layout and configuration
Description
source.
39/64
