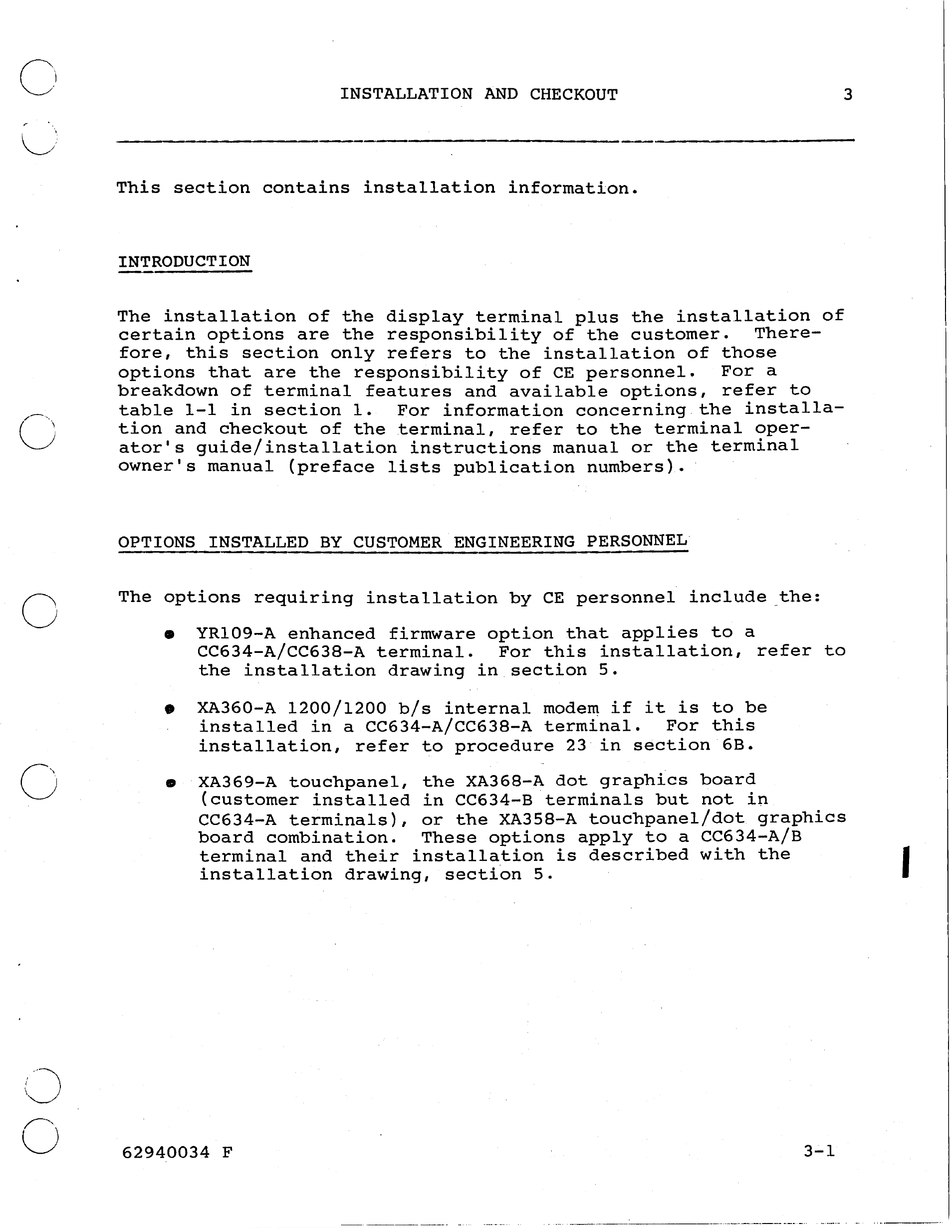

INSTALLATION AND CHECKOUT
This section contains installation information.
INTRODUCTION
The installation of the display terminal plus the installation of
certain options are the responsibility of the customer. There-
fore, this section only refers to the installation of those
options that are the responsibility of CE personnel. For a
breakdown of terminal features and available options, refer to
table 1-1 in section 1. For information concerning the installa-
tion and checkout of the terminal, refer to the terminal oper-
ator's guide/installation instructions manual or the terminal
owner's manual (preface lists publication numbers).
OPTIONS INSTALLED BY CUSTOMER ENGINEERING PERSONNEL
The options requiring installation by CE personnel include_the:
3
• YRl09-A enhanced firmware option that applies to a
CC634-A/CC638-A terminal. For this installation, refer to
the installation drawing in section 5.
• XA360-A 1200/1200 b/s internal
mode~
if it is to be
installed in a CC634-A/CC638-A terminal. For this
installation, refer to procedure 23 in section 6B.
• XA369-A touchpanel, the XA368-A dot graphics board
(customer installed in CC634-B terminals but not in
CC634-A terminals), or the XA358-A touchpanel/dot graphics
board combination. These options apply to a CC634-A/B
terminal and their installation is described with the
installation drawing, section 5.
62940034 F
3-1
- - - - - - -
