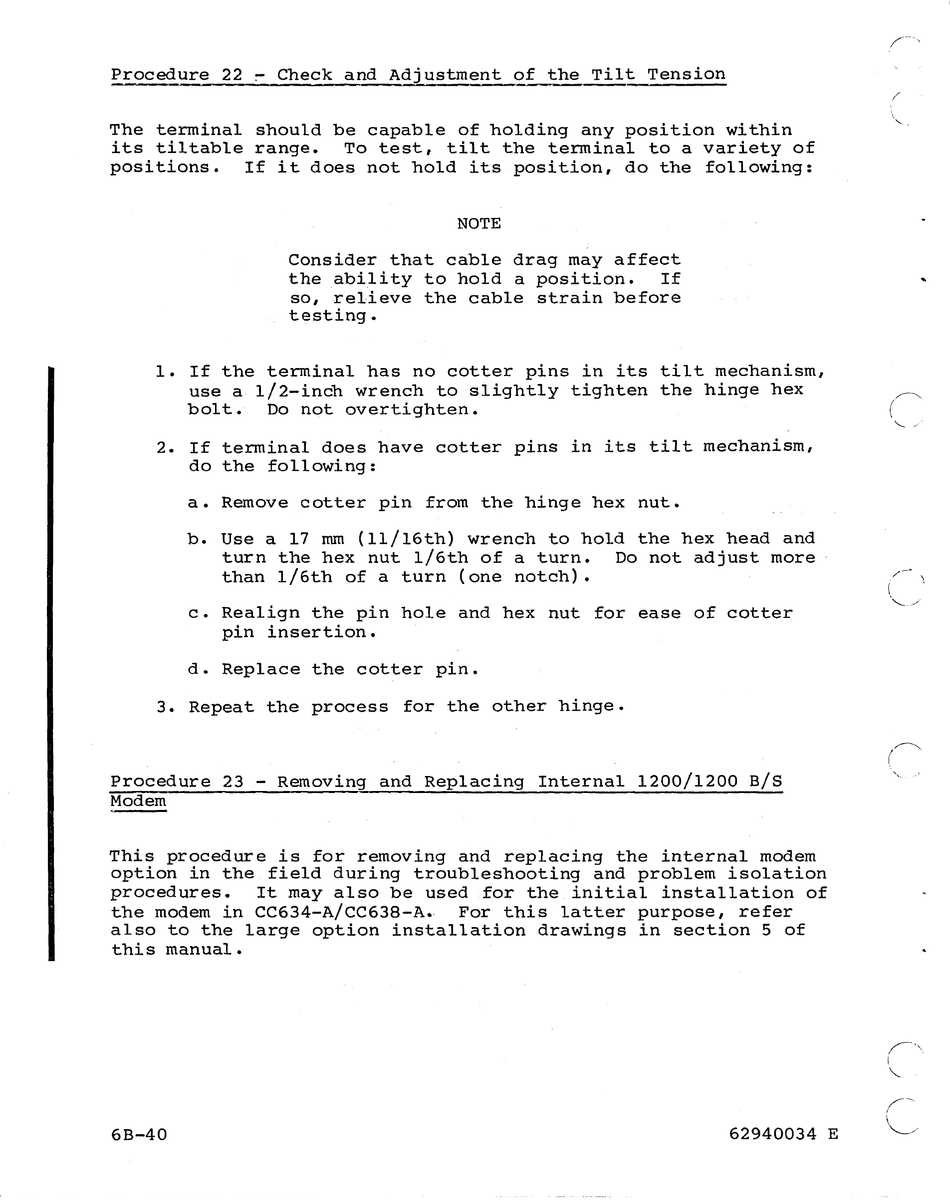

Procedure 22
~
Check and Adjustment of the Tilt Tension
The terminal should be capable of holding any position within
its tiltable range.
To test, tilt the terminal to a variety of
positions.
If i t does not hold its position, do the following:
NOTE
Consider that cable drag may affect
the ability to hold a position.
If
so, relieve the cable strain before
testing.
1. If the terminal has no cotter pins in its tilt mechanism,
use a l/2-inch wrench to slightly tighten the hinge hex
bolt.
Do not overtighten.
2. If terminal does have cotter pins in its tilt mechanism,
do the following:
a. Remove cotter pin from the hinge hex nut.
b. Use a 17 rom (11/16th) wrench to hold the hex head and
turn the hex nut l/6th of a turn.
Do not adjust more
than l/6th of a turn (one notch).
c. Realign the pin hole and hex nut for ease of cotter
pin insertion.
d. Replace the cotter pin.
3. Repeat the process for the other hinge.
Procedure 23 - Removing and Replacing Internal 1200/1200 B/s
Modem
This procedure is for removing and replacing the internal modem
option in the field during troubleshooting and problem isolation
procedures.
It may also be used for the initial installation of
the modem in CC634-A/cC638-A.
For this latter purpose, refer
also to the large option installation drawings in section 5 of
this manual.
