Terminal Parts Identification - Control Data Corporation CDC CC63X Hardware Maintenance Manual

I
I
2. If the terminal is a CC634-B/CC638-B unit, push up the
power-cord interlock latch (figure 6B-4).
3. Remove the access lid (procedure 3). (Removing access
lid is necessary if touchpanel is present.)
SMALL OPTION (I
IF
I)
SMALL OPTION (I/F 2)
SMALL OPTION (IIF 3)
NOTE
If a graphics board and touchpanel
are installed, disconnect the flat
cable between the graphics board and
touchpanel before proceeding to step
4. Use pull-tab to remove connector.
LARGE OPTION
Cl/F
5 SLOT
WITH COMPONENT
SIDE TO CASE)
LARGE OPTION
(I
IF
4 SLOT
WITH COMPONENT
SIDE TO CRT)
TEST SWITCH
DATA SET CONNECTOR
MAIN LOGIC BOAR 0

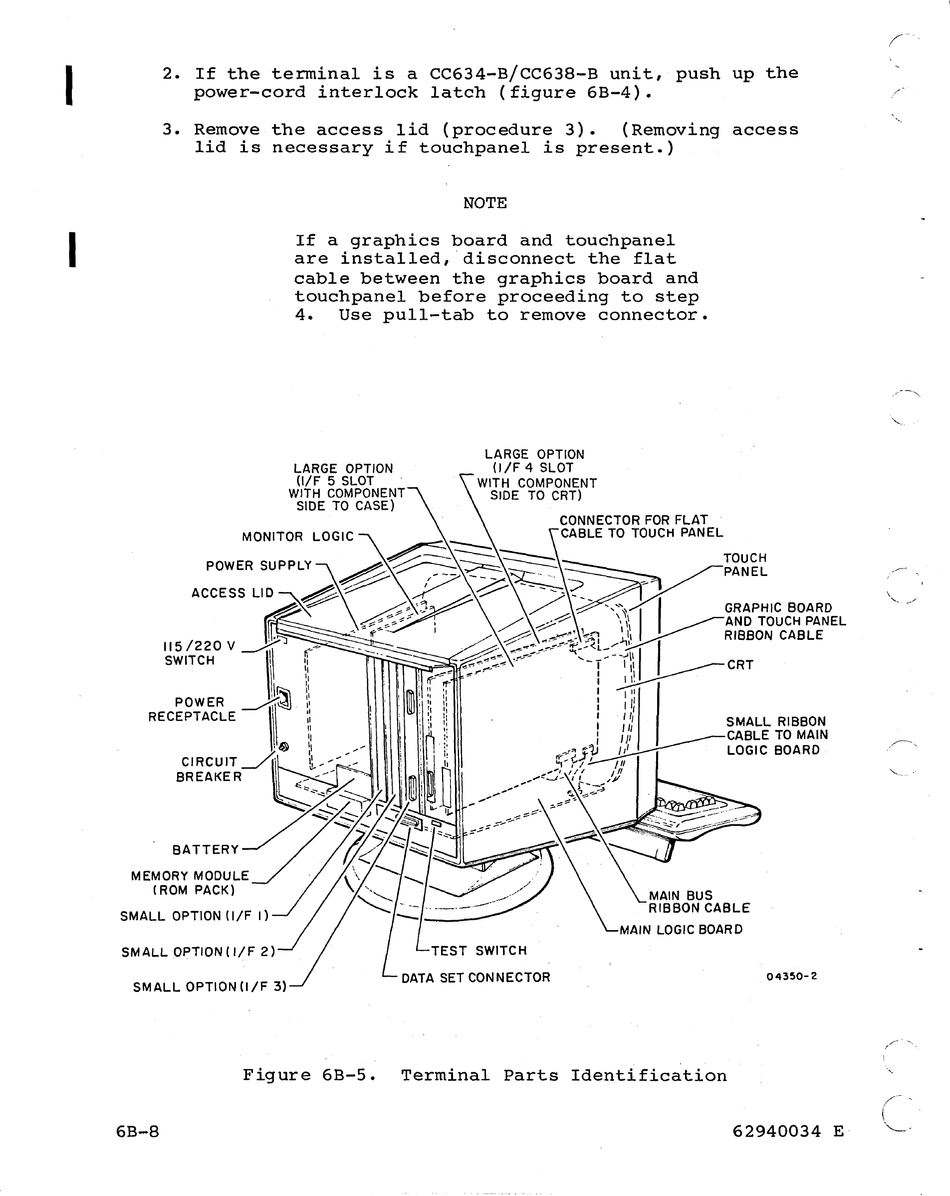

Figure 6B-5. Terminal Parts Identification
04350-2
6B-8 62940034 E
,~,
'-...."
..
(
/ -
,
