5. position the terminal so that it rests on the rear frame
with the glass screen facing upward.
6. Remove the four screws securing the bezel adapter
assembly to the hood (figure 6B-7). Early units were
built with two short screws at the top and two longer
screws at the bottom, discard the two shorter screws (if
applicable) as two longer screws are provided with the
replacement bezel adapter assembly.
7.
Remove the assembly from the display terminal hood and
set it face (screen side) down.
REPLACE
CRT
FACE
NOTE
The power actuator bar should fall
loose inside hood. Remove the bar
together with small return spring
located at rear of bar. Set the bar
and spring aside for reassembly
later. The drawer track might now
be loose inside the enclosure, or
still in place on the bezel adapter
assembly.
MONITOR SHIELD
BOX

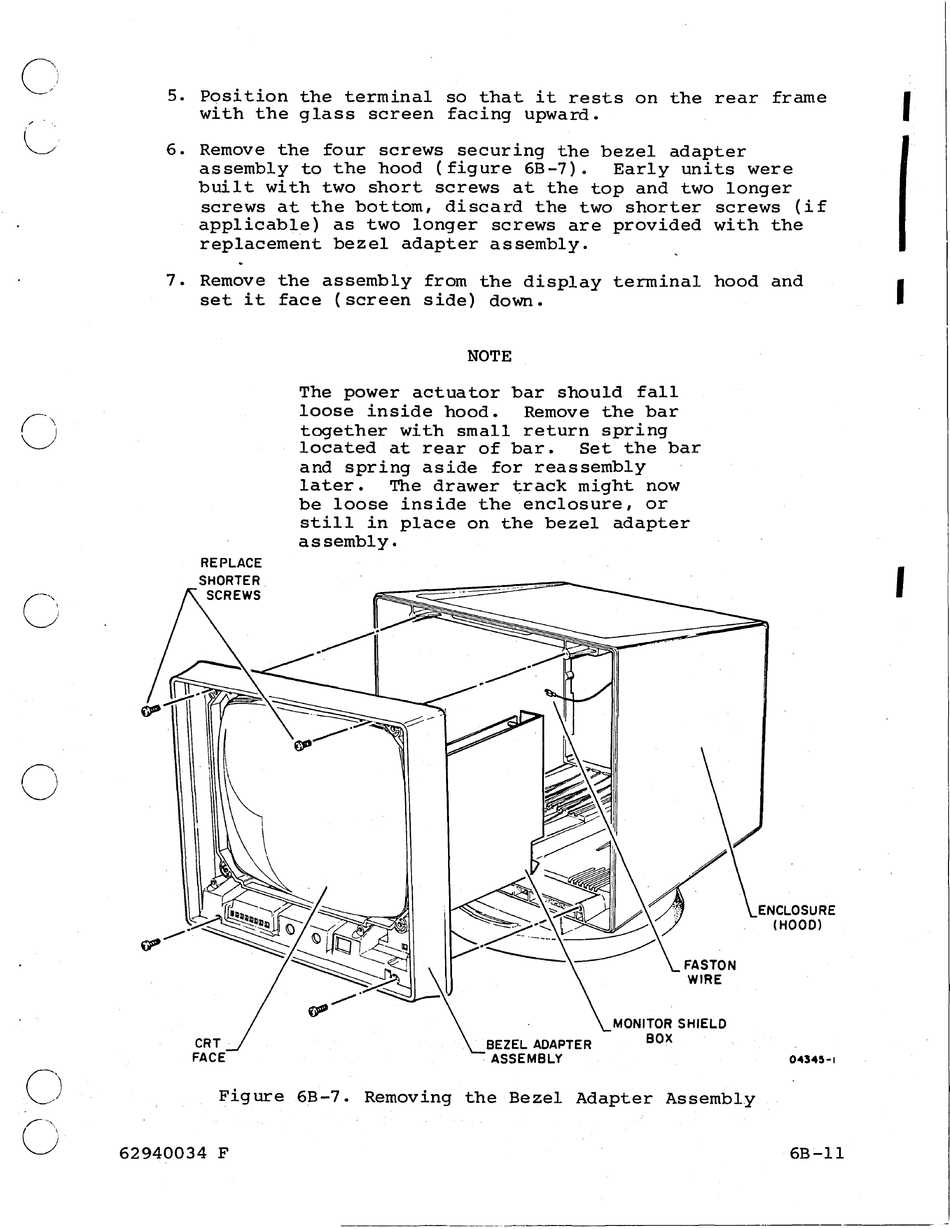

Figure 6B-7. Removing the Bezel Adapter Assembl.y
62940034 F
ENCLOSURE
(HOOD)
04345-1
6B-II
